Specifications
Payment Terms :
L/C,D/A,T/T,D/P
Brand Name :
ZXY
Coil Shape :
Round / Square / Customized
Packaging Details :
carton
Model Number :
Air Core Coil
Wire Gauge :
18 AWG / 20 AWG / 22 AWG
MOQ :
negotiable
Delivery Time :
3-4 Week days
Core Type :
Air Core
Price :
negotiable
Inductance :
10uH / 22uH / 47uH
Supply Ability :
50000
Certification :
RoHS、ISO9001、CE
Application :
Power Electronics, Transformer
Place of Origin :
China Guangdong
Frequency Range :
50KHz ~ 500KHz
Description

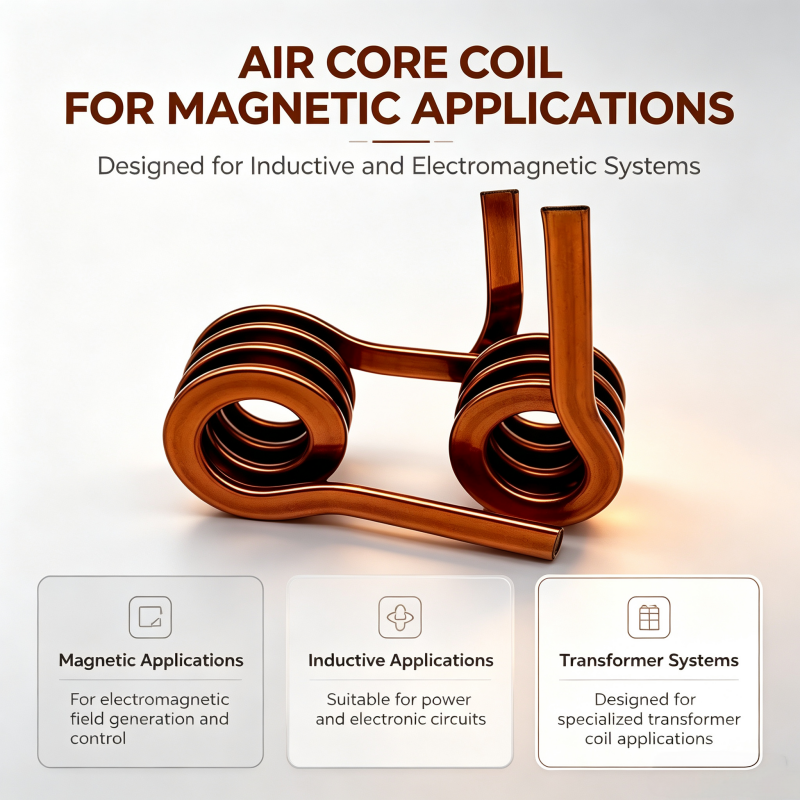

Enameled Flat Copper Wire Air Core Coil Transformer Coil Magnetic Inductor for Power Electronics
Product Overview

This enameled flat copper wire air core coil is engineered for power electronics and high-frequency applications where efficient current transmission, stable electrical performance, and compact construction are essential. Manufactured with high-quality flat copper wire and precision winding technology, the coil delivers excellent conductivity, superior heat dissipation, and reliable performance during continuous operation.

The air core design eliminates magnetic core losses, making it ideal for applications requiring low parasitic effects and flexible electromagnetic characteristics. Available with customized winding configurations, dimensions, wire sizes, inductance values, and terminals to meet diverse circuit and installation requirements.

Key Advantages
  • High Conductivity - Flat copper wire provides a large effective conductor area for efficient current transmission and reduced electrical loss
  • Excellent Heat Dissipation - The flat-wire structure offers superior thermal performance, maintaining stable operation under continuous load
  • Air Core Design - No magnetic core saturation and no core loss, suitable for various high-frequency and power electronics applications
  • Precision Winding - Controlled winding technology ensures consistent coil dimensions and stable electrical characteristics
  • Compact & Flexible Structure - Customizable according to available installation space and circuit requirements
  • Reliable Enamel Insulation - High-quality enamel coating provides dependable insulation between winding layers and turns
  • OEM Customization - Inductance, dimensions, wire specifications, winding structure, terminals, and other requirements can be customized according to customer drawings or specifications
Technical Specifications
Parameter Specification
Product Type Air Core Coil / Power Inductor
Coil Structure Air Core
Conductor Material Enameled Copper Wire
Wire Type Flat Copper Wire
Insulation Enamel Coating
Winding Method Precision Winding
Operating Frequency 40°C ~ 125°C
Shape Customized
Application Power Electronics, High-Frequency Circuits, Power Conversion
Customization OEM / ODM Supported
Testing Electrical & Performance Testing
Sample Service Samples Available for Evaluation

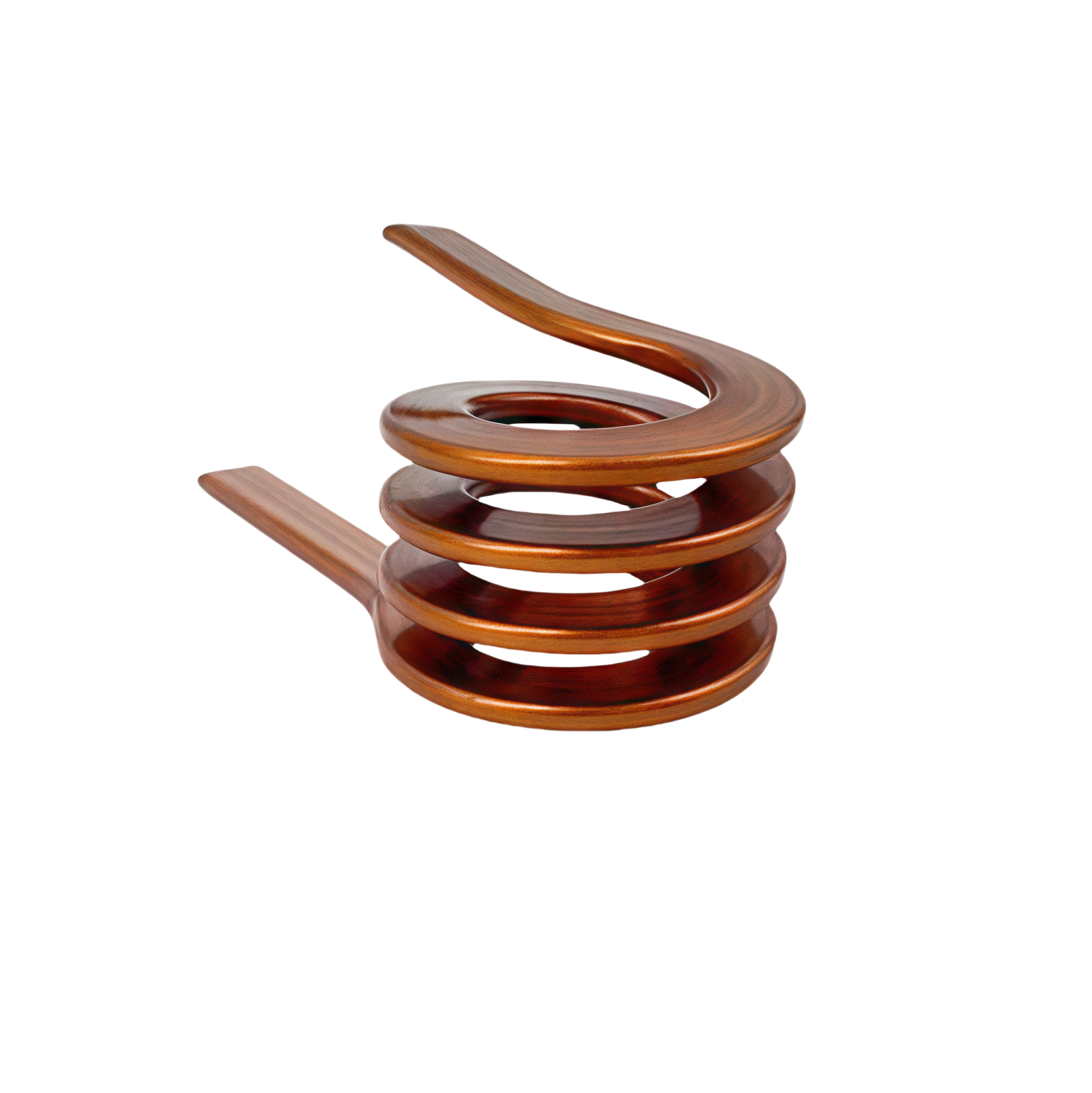

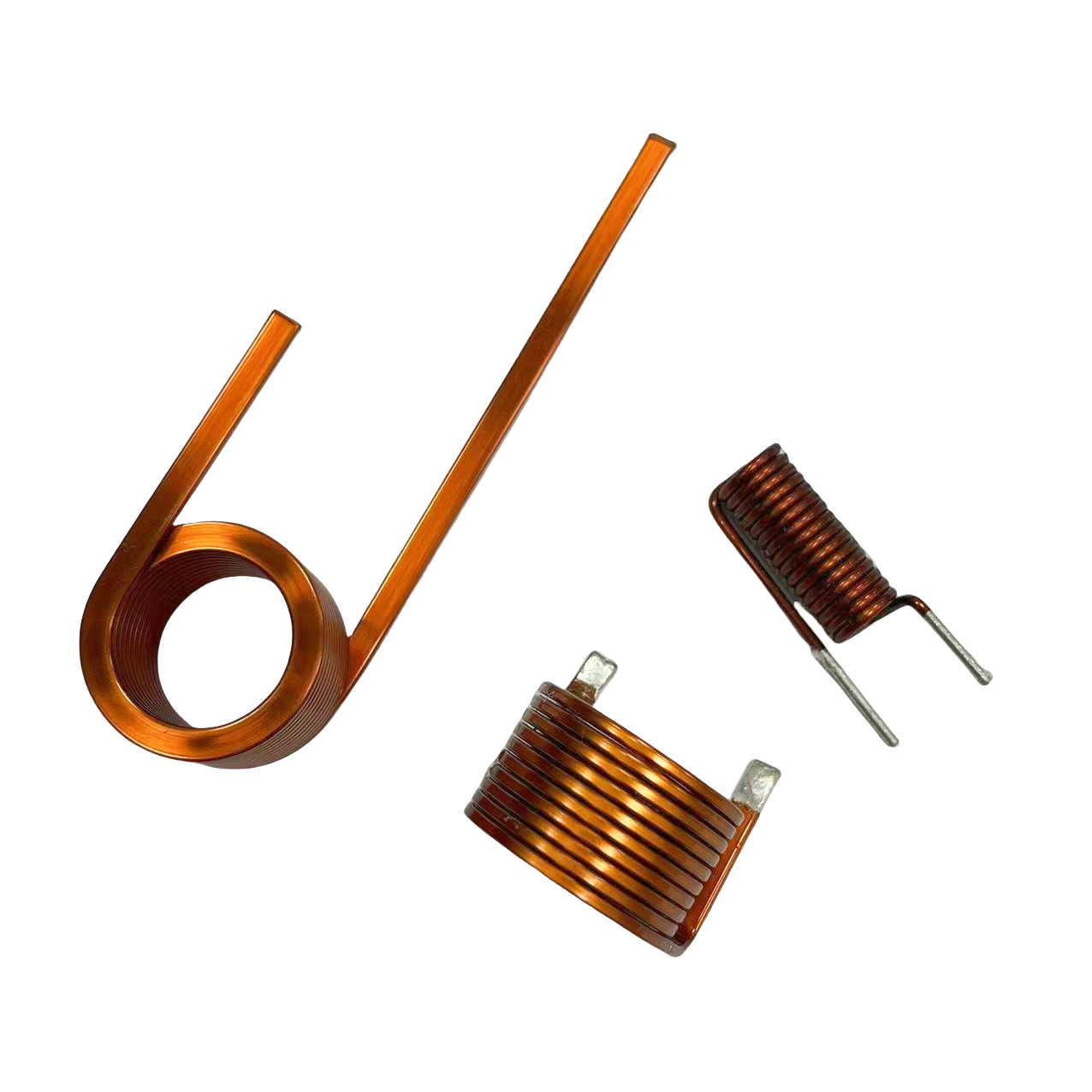

Product Images
Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding
Manufacturing Excellence
Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding Enameled Flat Copper Wire Air Core Coil Magnetic Inductor with 50KHz ~ 500KHz Frequency Range and Customized Winding
