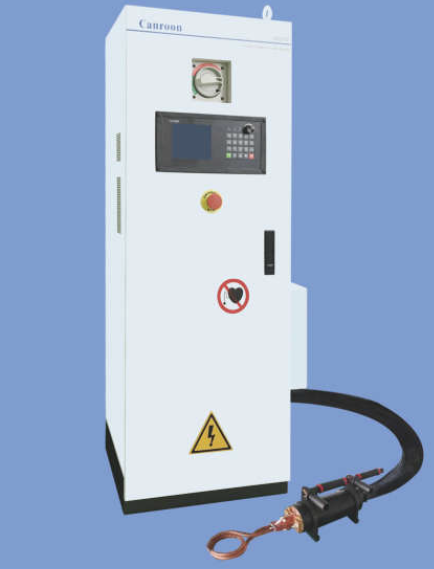

Digital Control IGBT Induction Brazing Machine , Induction Welding
Digital Control IGBT Induction Brazing Machine , Induction Welding
Digital Control IGBT Induction Brazing Machine , Induction Welding
Digital Control IGBT Induction Brazing Machine , Induction Welding
Specifications
Place of Origin :
Shenzhen china
Brand Name :
Canroon
Certification :
CE ISO9001:2008
Model Number :
CR2100
MOQ :
1 piece
Packaging Details :
Wooden Case
Delivery Time :
A week after confirmed payment
Payment Terms :
T/T
Supply Ability :
20 Piece/Pieces per Week
Input :
320V~480V; 3-Phase
Power :
10~300KW
Temperature :
>1000℃
Resonance :
Series Resonance
Control Model :
Digital Control
Cooling :
water cooling
Warranty :
12 months
Description

Digital Control IGBT Induction Brazing Machine , Induction Welding


CR2100 is our water cooling system with detachable induction coil.

With different coil, CR2100 can realize different applications like brazing, hardening, annealing, bolt untighten, paint removal, straightening, etc.

Characters:

  • Hand held transformer
Hand-held transformer are designed for your easy manual manipulation, and also can be integrated into robot arm for automatic production.
  • Detachable coils
Induction coils are easy for assemble and dismantle from hand-hold transformer, so you can connect with different coil for different application.
  • High temperature
>1000℃
  • Fast/Rapid heating
with enough power, targed temperature can be reached within seconds.
  • For various material
Steel, stainless steel, copper, aluminum, titanium, etc
  • Various application
Digital Control IGBT Induction Brazing Machine , Induction Welding


Specification:

Model NO.InputOutputCooling water pressure/ flow rate

Dimension
(mm)

appearance

IP
degree

CR2100-010B-14TW1

power:10KVA
voltage:3-phase/400V
freq.:50-60Hz
current:15A

power:8kW
(duty cycle100%) freq.:10-40KHz

4~6 bar,
≥12L/min

L:581.5
W:283
H:334

Digital Control IGBT Induction Brazing Machine , Induction WeldingIP23
CR2100-015B-14TW1

power:15KVA
voltage:3-phase/400V
freq.:50-60Hz
current:22A

power:12kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-020B-14TW1

power:20KVA
voltage:3-phase/400V
freq.:50-60Hz
current:30A

power:16kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-025B-14TW1

power:25KVA
voltage:3-phase/400V
freq.:50-60Hz
current:37A

power:20kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-030B-14TW1

power:30KVA
voltage:3-phase/400V
freq.:50-60Hz
current:45A

power:24kW
(duty cycle100%) freq.:10-40KHz

4~6 bar,
≥19L/min

IP23
CR2100-035B-14TW1

power:35KVA
voltage:3-phase/400V
freq.:50-60Hz
current:53A

power:28kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-040B-14TW1

power:40KVA
voltage:3-phase/400V
freq.:50-60Hz
current:60A

power:32kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-050B-14TW1

power:50KVA
voltage:3-phase/400V
freq.:50-60Hz
current:75A

power:40kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-060B-14TW1

power:60KVA
voltage:3-phase/400V
freq.:50-60Hz
current:91A

power:48kW
(duty cycle100%) freq.:10-40KHz

4~6 bar,
≥25L/min

L:475.5
W:456
H:1290.5

Digital Control IGBT Induction Brazing Machine , Induction WeldingIP23
CR2100-080B-14TW1

power:80KVA
voltage:3-phase/400V
freq.:50-60Hz
current:121A

power:64kW
(duty cycle100%) freq.:10-40KHz

IP23
CR2100-100B-14TW1

power:100KVA
voltage:3-phase/400V
freq.:50-60Hz
current:152A

power:80kW
(duty cycle100%) freq.:5-25KHz

4~6 bar,
≥35L/min

IP23
CR2100-120B-14TW1

power:120KVA
voltage:3-phase/400V
freq.:50-60Hz
current:182A

power:96kW
(duty cycle100%) freq.:5-25KHz

IP23
CR2100-160B-14TW1

power:160KVA
voltage:3-phase/400V
freq.:50-60Hz
current:243A

power:128kW
(duty cycle100%) freq.:5-25KHz

4~6 bar,
≥50L/min

L:671.5
W:780
H:1986.5

Digital Control IGBT Induction Brazing Machine , Induction WeldingIP23
CR2100-200B-14TW1

power:200KVA
voltage:3-phase/400V
freq.:50-60Hz
current:303A

power:160kW
(duty cycle100%) freq.:5-25KHz

IP23
CR2100-250B-14TW1

power:250KVA
voltage:3-phase/400V
freq.:50-60Hz
current:380A

power:200kW
(duty cycle100%) freq.:5-25KHz

4~6 bar,
≥60L/min

IP23
CR2100-300B-14TW1

power:300KVA
voltage:3-phase/400V
freq.:50-60Hz
current:456A

power:240kW
(duty cycle100%) freq.:5-25KHz

IP23
