25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel
25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel
25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel
25KW-250KW Induction Forging Machine IGBT Control For Brass Copper Steel
Specifications
Brand Name :
InductionFusion
Model Number :
IF-80KW Flexible Series
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
Customize + Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
100/SET Per Month
Delivery Time :
10-20working days
Packaging Details :
wooden box
Customized :
Customized
Auto Feeder: :
Pulling Feeder Machine
Control System: :
IGBT Control
machinery test report :
Provided
Heating Principle :
Induced Magnetic Field To Heating
Packaging Details: :
Plywooden box
Description
Auto Induction Forging Machine Pulling Feeder For Brass / Copper / Steel Forging

Highlight:

induction heater for forging

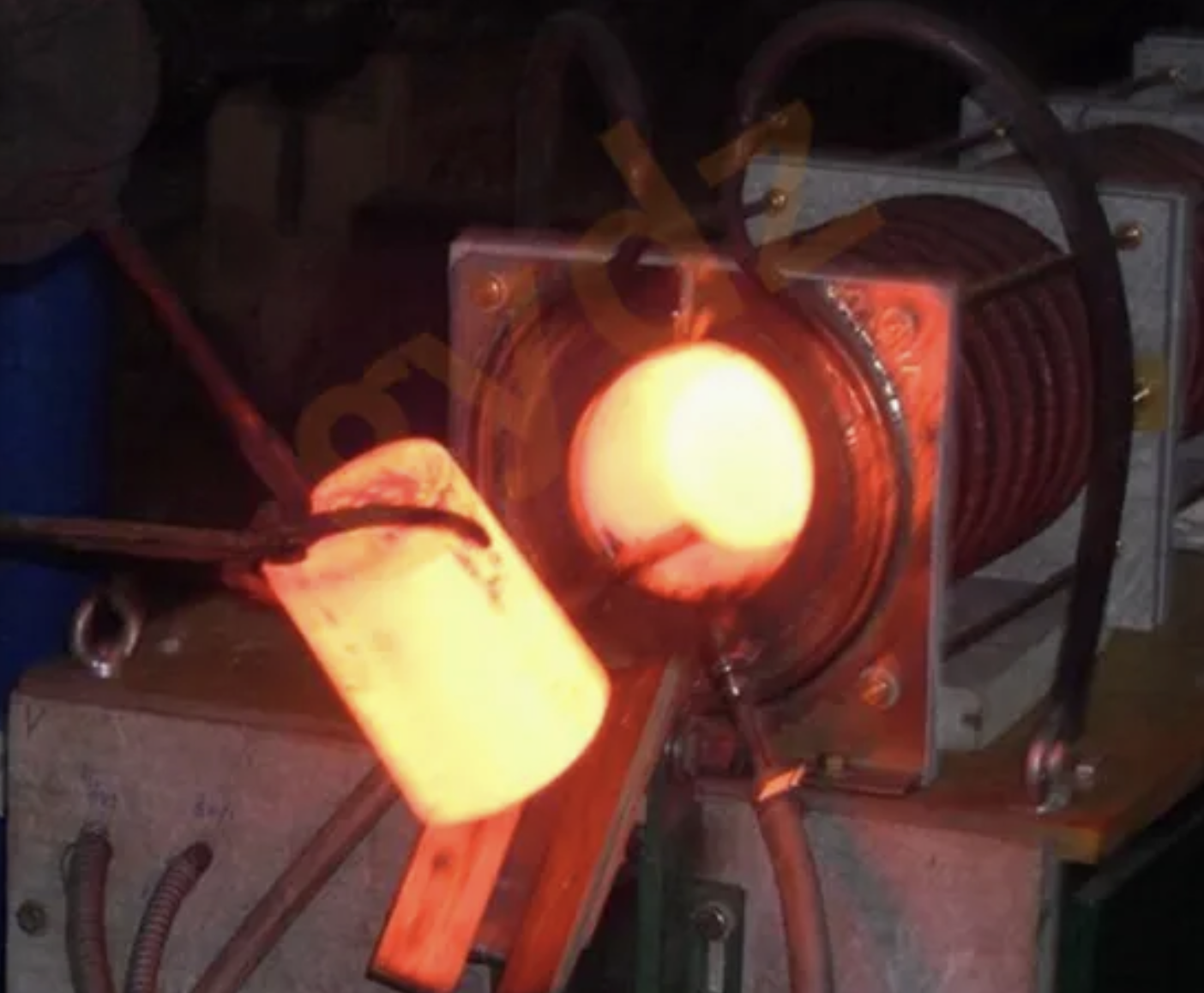

Forging aims to fabricate the work pieces of certain temperature different materials require different temperatures into other shapes through forging press with the help of punch press forging machine or other equipment for instances hot extrusion of watch case watch flan handle mold accessory kitchen and table ware art ware standard part fastener fabricated mechanical part bronze lock rivet steel pin and pin.

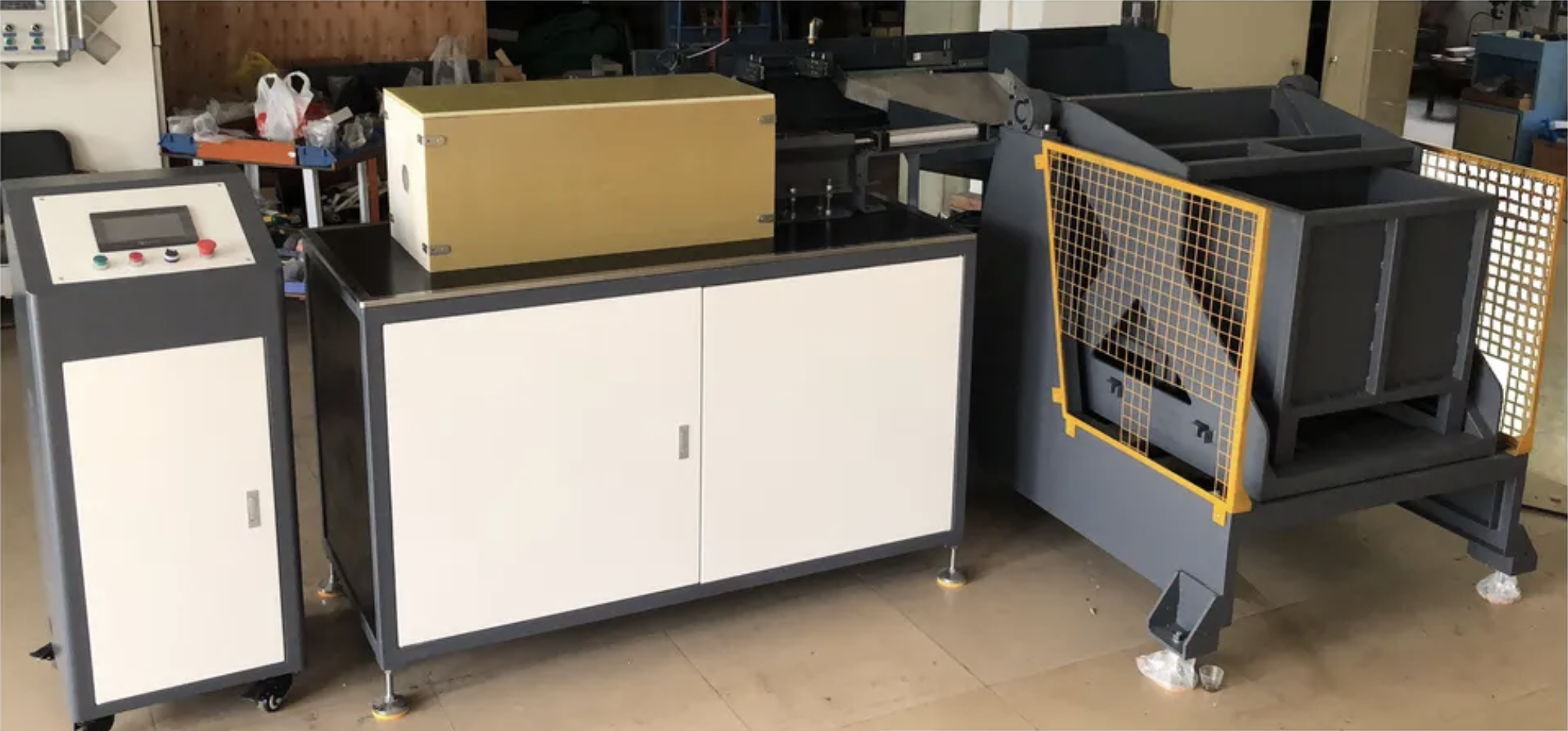

The equipment includes medium frequency induction heating machine, worktable, induction coil, feeding machine, Infrared temperature detector and some other parts.
Features of medium frequency induction forging machine:
1. Wide frequency range: 1KHZ—20KHZ, according the diameter of working piece to choose suitable frequency.
2. When heating a whole piece of material, the length of induction coil can be made from 500mm –1m, when heating multiple pieces, better penetrating results can be guaranteed.
3. It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of work piece reach 1100℃ from room temperature, by this way, actual output power can be always above 95% efficiency, thus the machine is effectively used.
4. When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.
5. Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenance, and can save power by approximately 15--20%.

Specification Max output power Heating capability for common materials
IF-25 forging furnace 25KW Recommending for OD15－30mm steel bar heating
IF-40 forging furnace 40KW
IF-60 forging furnace 60KW Recommending for OD15-50mm steel bar heating
IF-100 forging furnace 100KW
IF-160 forging furnace 160KW Recommending for OD15-80mm steel bar heating
IF-200 forging furnace 200KW
IF-250 forging furnace 250KW Recommending for bigger than OD80mm mm steel bar heating
