120KW IGBT Induction Forging Heater 10khz-50khz For Square Socket Harden
120KW IGBT Induction Forging Heater 10khz-50khz For Square Socket Harden
Specifications
Brand Name :
JR
Model Number :
JR-100AB
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
System Control :
IGBT
Structure :
Vertical Type
Cooling :
Water
Application :
Heating, Forging, Melting, Hardening and etc
Type :
Ceramic Heating Equipment
Condition :
New
Description

Induction Heating Machine Energy Saving IGBT Control For Square Socket Harden


Induction Heating Machine advantages

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive proces
Basic Info

work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs

Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.


Application:

Forging(Bar,flat plate,bar end heating,pipe ends,bar end heating)
Pre-heating(Pipe,steel wire,stainless steel wire)
Brazing(Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)
Annealing(Steel pipe,golf ball head,brass lock,aluminum pan)
Hardening(Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)
shrink fitting(motor,pipe)
Melting(Iron,steel,brass,aluminum,silver,zinc)
Extra accessories accept choose,

1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture

Significant Benefits of Induction Heating
  • Consistency: Accurate temperature control provides uniform results consistently, with negligible rejection.
  • Improved Quality: Contact-free process induces heat in the product without having any contact with it, reducing rejections.
  • Bend and Distortion: Customized process delivers heat exactly where it is needed and as rapidly as needed and precise quenching reduces Bend & Distortion.
  • Increased Profits: Energy efficient process converts up to 80% of the expended energy into useful heat to save costs.
  • Maximized Productivity: Instantaneous and controlled heat allows for increased production at reduced costs.
  • Elimination of Contamination with Atmospheric Control: The workpiece can be isolated in enclosed chamber, if required in vacuum, inert or reducing atmosphere.
  • Environmentally Friendly: Clean, non-polluting process produces no smoke, waste heat, noxious emissions or noise.
  • Saving Time and Cost: Can be used for Tempering/Stress Retrieving/Annealing in Auto hardening Cycles to reduce production time, avoid extra material handling etc.

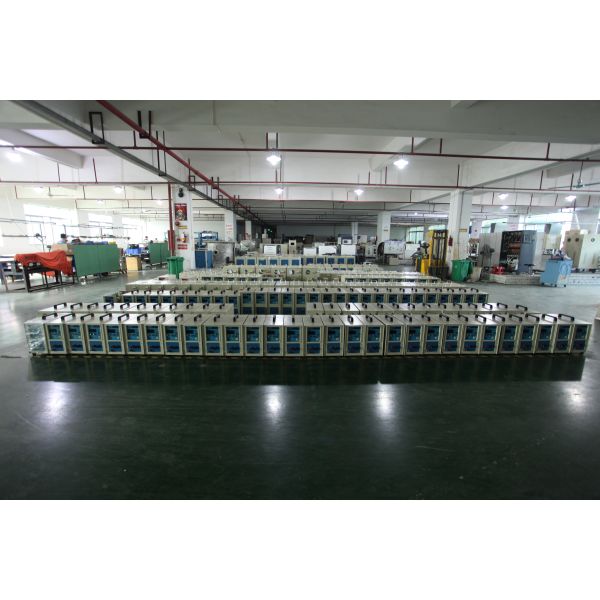

Factory View

120KW IGBT Induction Forging Heater 10khz-50khz For Square Socket Harden

120KW IGBT Induction Forging Heater 10khz-50khz For Square Socket Harden
