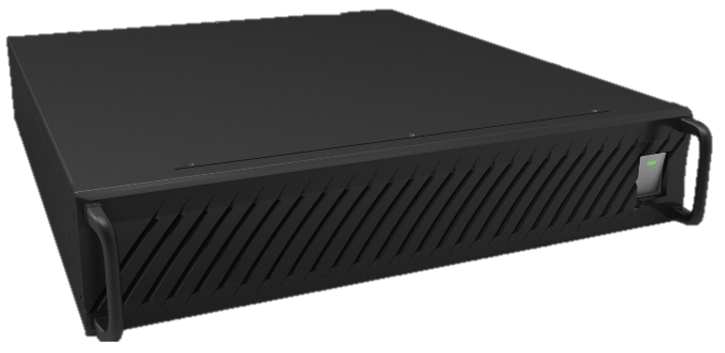

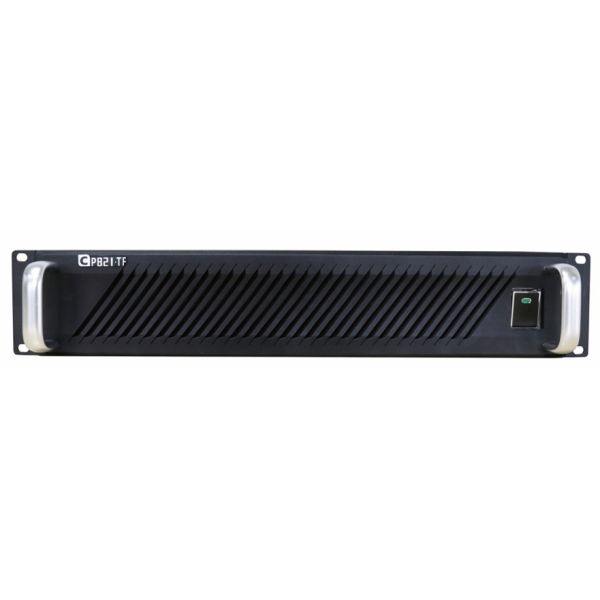

A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception
A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception
A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception
A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception
Specifications
Brand Name :
WSD
Model Number :
CA630
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C,T/T
Supply Ability :
50
Delivery Time :
30 work days
Number of Carriers :
6
Network Access Control Distance :
>300 m (at public network signal strength -80 dBm to -90 dBm)
Operating Frequency Band :
N1,N28,N41,N78(Customization Supported)
Operating Bandwidth :
20-100M
Receiving Sensitivity :
<-102dBm
Transmit Power :
20W
Description

A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception.

A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception

A 5G NR-compatible vehicle-mounted IMSI catcher system for real-time positioning, tracking, and location identification of mobile devices via IMSI interception


P1.Product Overview
The 5G active vehicle-mounted IMSI Catcher device supports the full range of 5G frequency bands. It enables IMSI information collection and precise Direction Finding and Positioning of 5G mobile phones. The complete system mainly consists of two vehicle-mounted Direction Finding and Positioning hosts, a portable decoder, direction-finding antennas, and an operation handset. For the first time, the product introduces intelligent symbol shutdown technology based on a scheduling algorithm and GaN (Gallium Nitride) technology, significantly reducing overall power consumption through both software and hardware innovations.


2. Key Features

  • Six-carrier design, supporting simultaneous activation.
  • Data transmission mode supported – portable unit requires no parameter configuration, ready to use upon startup.
  • Black box with distributed storage architecture, ensuring that records are never lost.
  • Compatible with direction-finding antennas, enabling rapid target direction indication after signal acquisition.
  • Seamless operation with 4G active devices, ensuring enhanced Direction Finding and Positioning performance.
  • APP-based remote power control, eliminating the need to exit the vehicle for operation.
  • Intelligent symbol shutdown technology based on scheduling algorithms, optimizing the duty cycle of 5G base stations to reduce device power consumption.
  • Integration of GaN (Gallium Nitride) power amplifiers, delivering high stability, high efficiency, and low power consumption.


3. Technical Specifications

Name

Parameter

Product Model

CA640-NR

Operating Frequency Band

N1,N28,N41,N78(Customization Supported)

Number of Carriers

6

Operating Bandwidth

20-100M

Receiving Sensitivity

<-102dBm

Network Access Control Distance

>300 m (at public network signal strength -80 dBm to -90 dBm)

Number of Antennas

3

Transmit Power

20W

Synchronization Method

GPS

Operating Software

Android APP

Connection Method

WIFI

Dimensions

453*440*88(mm)

Weight

≤16Kg

Total Power Consumption

≤140W

Cooling Method

Active Cooling (Fan-based)

External Interfaces

ANT * 2, GPS interface * 1, RJ45 * 2, power * 1

Operating Voltage

220V AC

Operating Temperature

-25℃～+55℃

Operating Humidity

5%～80%
