A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
Specifications
Brand Name :
WSD
Model Number :
CA-620
MOQ :
1
Price :
Price Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100
Delivery Time :
30 work days
Direction-Finding Antenna :
4-direction capability Roof box integration compatible
Bands :
GSM:900M/1800M, WCDMA:2100M, LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 (customizable)
Sensitivity :
< -102 dBm
Bandwidth :
5 MHz
Synchronization :
GPS and public network
Range :
0-1000m
Description
A multi-band (2G/3G/4G) mobile IMSI interception and tracking system deployed in vehicles

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification













A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification
Advanced Mobile Terminal Tracking Solution
This vehicle-mounted IMSI catcher system utilizes core GSM, WCDMA, and LTE base station technologies to implement communication control over mobile terminals within its coverage area. The system captures IMSI/IMEI data and provides accurate terminal location capabilities.
System Components & Operation

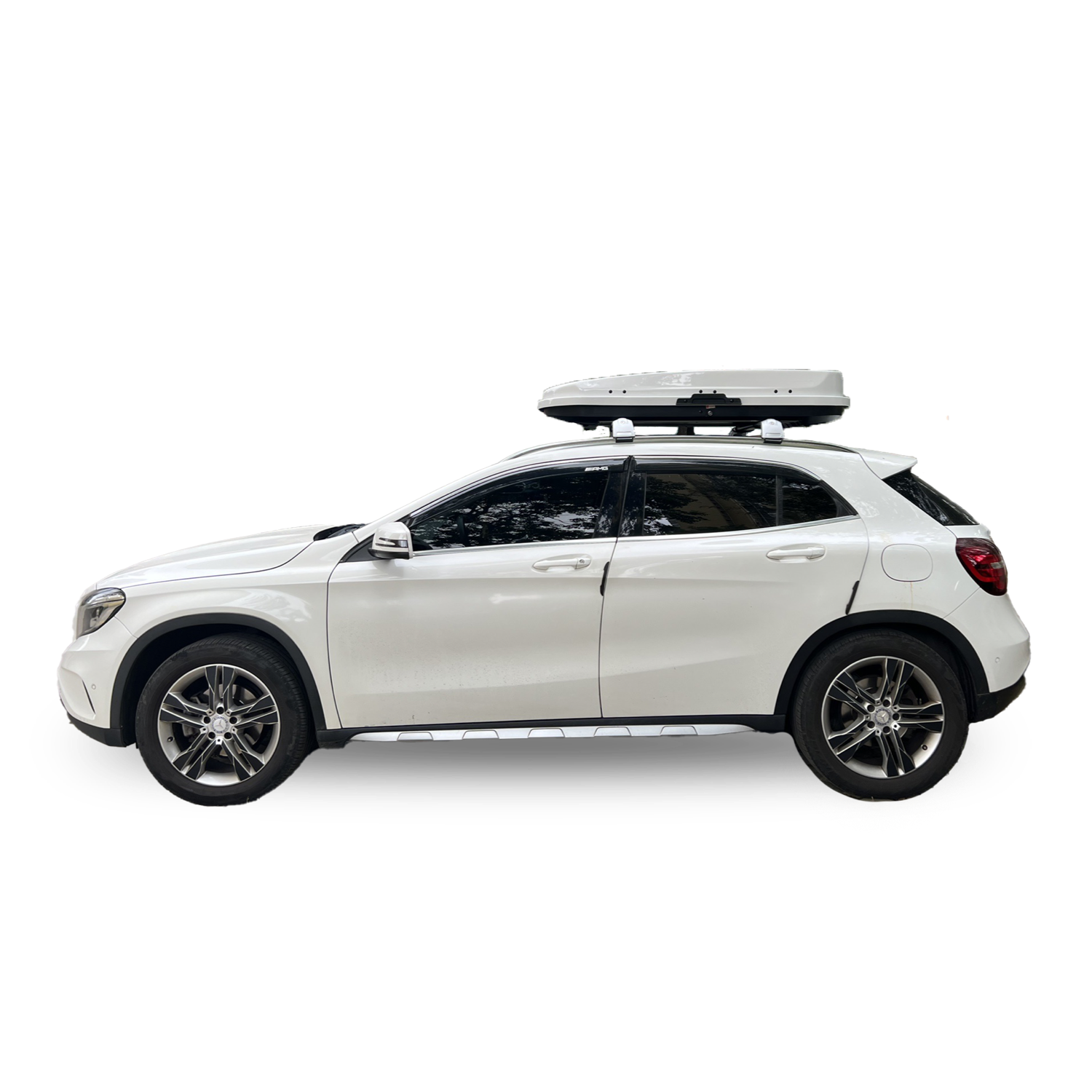

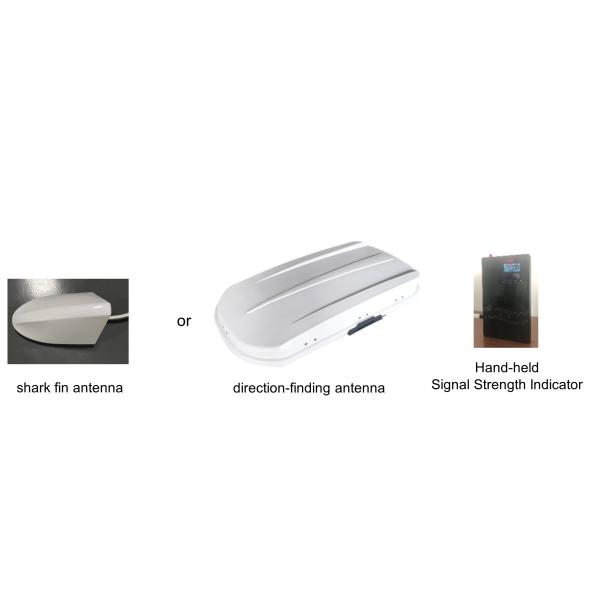

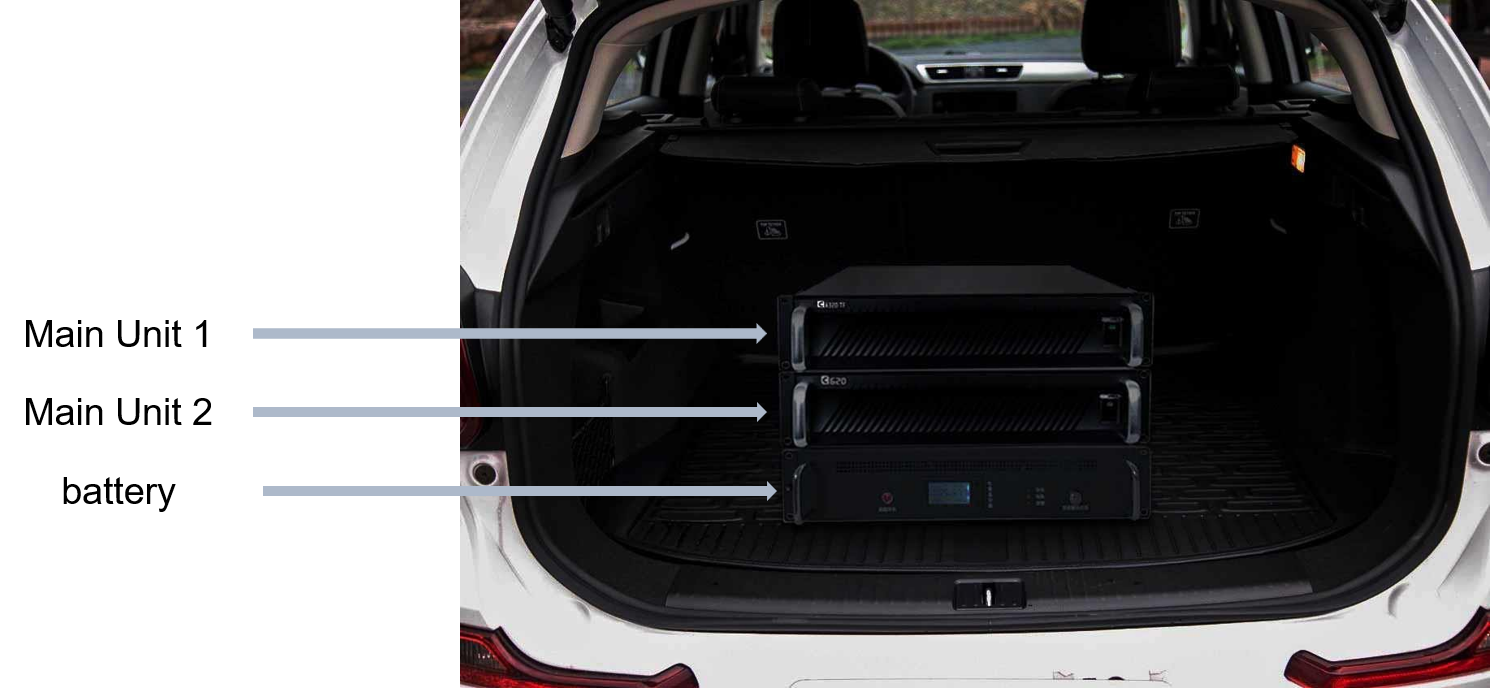

The complete system includes a main unit, antenna array, battery pack, and hand-held signal strength indicator. The main components are installed in an SUV (main unit and battery in the trunk, antennas on the roof) and controlled via a mobile application for intuitive operation.
When the system successfully captures a target, the app provides continuous, stable readings and precise directional information. Operators can use the hand-held signal strength indicator to refine detection and pinpoint the exact location of target terminals.
System Configuration
No. Component Specifications Quantity Remarks
1 Main Unit Bands: GSM:900M/1800M, WCDMA:2100M, LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 (customizable)
Bandwidth: 5 MHz
Synchronization: GPS and public network
Sensitivity: < -102 dBm
Range: 0-1000m
Power: 20W/channel (10 channels)
Dimensions: 484*474*88mm
Weight: 16kg		 2 units
2 Signal Strength Indicator Bands: GSM/WCDMA/LTE (customizable)
Power: 2.5W
Dimensions: 186*106*21mm
Weight: 0.5kg (with accessories)		 1 unit
3 Shark Fin Antenna Frequency: 700MHz-2700MHz
Gain: 1.0-4.0 dBi
VSWR: ≤2.0
Dimensions: 200*120*110mm
Weight: 0.3kg		 3 units
4 Direction-Finding Antenna 4-direction capability
Roof box integration compatible		 1 unit Optional
5 Battery Pack Type: Lithium iron phosphate
Capacity: 52Ah
Input: 10.4V-16V DC/320W
Output: 220V±10%/50Hz/3000VA
Dimensions: 500*440*134mm
Weight: 28kg		 1 unit
6 Operation Terminal Windows laptop or tablet 1 unit Included
7 Accessories Industrial router, Ethernet cable, power cables, GPS antenna, power strip 1 set
