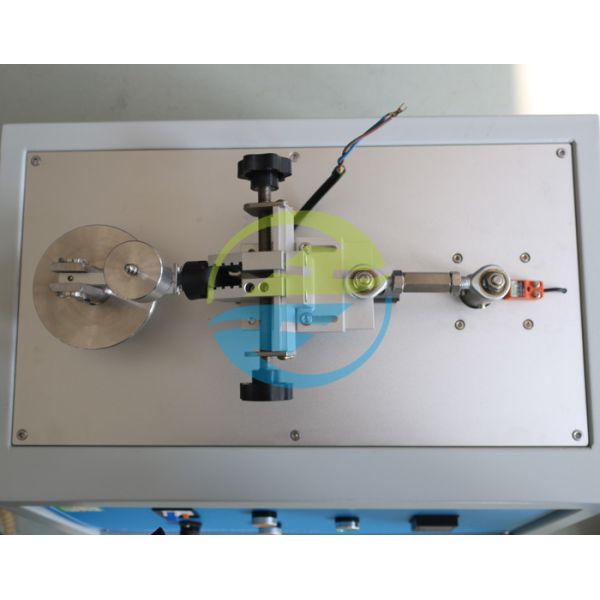

Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Specifications
Brand Name :
HongCe
Model Number :
HC9926
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood
Test Stations :
1 station
load :
4N
Test time :
1-999999
Rate of abrasion :
30 movements per minute
Working stroke :
9mm
Warranty :
1 year
Name :
Insulation Sleeves Of Plug Pins Abrasion Test Apparatus
Test sample :
Insulation Sleeve of plug pins
Description
Plug Socket Tester for Insulation Sheath Abrasion
Durable Plug Insulation Wear Testing Equipment for Safety Compliance
With the increasing presence of smart home appliances, small electrical appliances, and power banks in various settings, plug safety has become paramount. The plug's insulating sheath is the primary user contact point, and its wear resistance directly impacts:
  • Metal exposure risk
  • Electric shock potential
  • Long-term stability during plug insertion and removal
This device simulates plug friction and wear processes, providing continuous, quantitative verification of sheath material wear resistance to demonstrate proven safety through scientific testing.
Compliance Standards
  • IEC 60884-1 Clause 24 - Resistance to abrasion of plug sleeves
  • IEC 60320-1 Section 17 - Durability & mechanical strength of appliance couplers
  • IEC 60598-1 Clause 4.14 - Mechanical strength and abrasion tests
Product Features
  • Stability Testing Structure: High-precision transmission mechanism ensures uniform, repeatable wear testing
  • Multiple Plug Size Support: Accommodates wear testing for various national standard plug sheaths
  • Realistic Usage Simulation: Adjustable friction angle, pressure, and frequency mimic real-world conditions
  • Safety Protection Design: Includes overload protection and emergency stop button
  • Low Maintenance Structure: Wear-resistant core components ensure long-term operation
Test Items
  • Sheath surface wear depth
  • Sheath material abrasion resistance rating
  • Friction durability (number of friction cycles)
  • Sheath coating peeling condition
  • Risk of metal exposure after wear
  • Structural deformation condition
Technical Parameters
Parameter Name Parameter Data
Power supply AC220V, 50Hz
Station Single station
Test time 1-999999, preset
Rate of abrasion 30±1 movements per minute
Load 4-0.1N
Working stroke 9mm
Durable Plug Socket Tester with 4N Load and 30 Movements per Minute for Insulation Sleeves Abrasion Testing
Testing Capabilities
  • Thickness change of insulation sleeve after specified wears
  • Insulation resistance after wear (requires megohmmeter)
  • Tear resistance after repeated wear
  • Dielectric strength of worn area
  • Firmness of insulation sleeve and pin connection
  • Exposed conductive parts after wear
  • Wear differences under various temperature environments
