Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100
Specifications
Place of Origin :
Guangdong, China
Output Voltage :
12V AC at 40A
Temperature Sensor :
T-type thermocouple (Cu-CuNi)
Brand Name :
HongCe
Certification :
Calibration Certificate (Cost Additional)
Supply Ability :
10 Sets per Month
Delivery Time :
15-25 working days standard, 30-45 days custom
Net Weight :
Approximately 420 kg
Power Supply :
AC 380V ±10%, 50Hz, three-phase 5-wire
Test Current :
0-40A AC
Temperature Range :
0°C to +200°C
Payment Terms :
T/T,L/C
Temperature Accuracy :
±0.3°C or ±0.5% of reading
Model Number :
HC9910C
MOQ :
1 Set
Price :
Negotiatable
Number of Stations :
6 stations
Packaging Details :
Export-grade plywood case with high-density foam insert, vacuum-sealed moisture barrier, reinforced steel strapping
Description

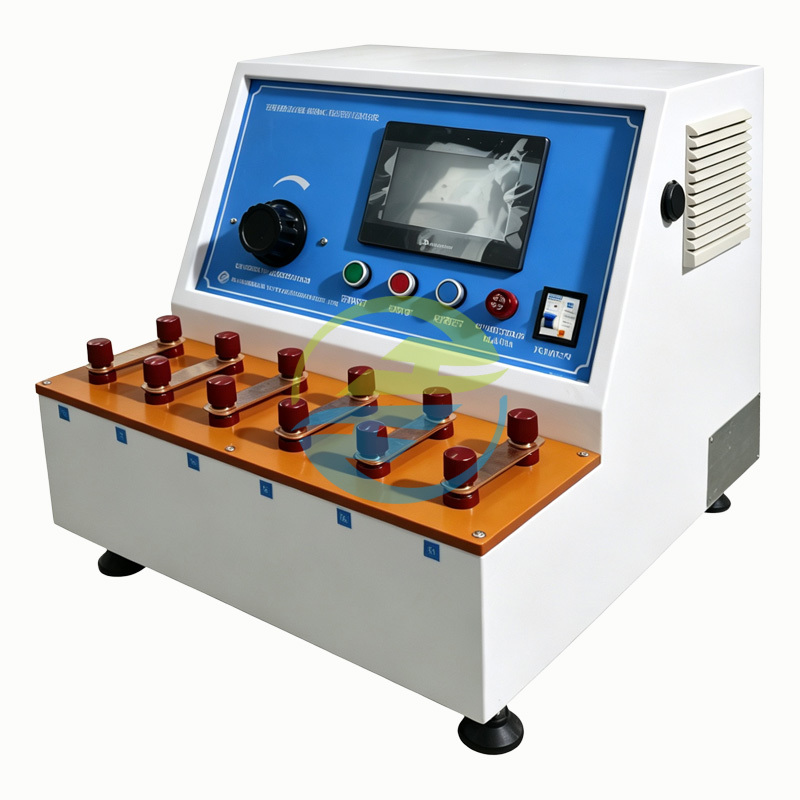

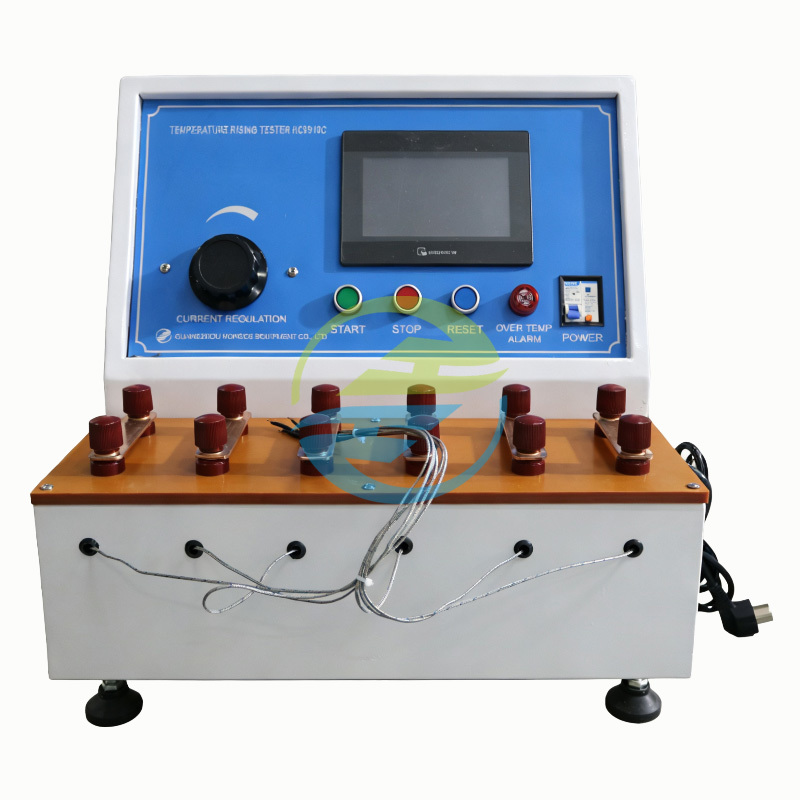

Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source
Product Overview

The Six-Station 0-40A Adjustable Current Temperature Rise Tester by HongCe is a precision thermal evaluation instrument designed for measuring temperature rise in plugs, socket-outlets, connectors, terminals, and electrical contacts under continuous rated current conditions. Fully compliant with international standards including IEC 60884-1, IEC 60669-1, and IEC 60309-1, this system delivers accurate, repeatable thermal performance data essential for product safety certification and quality assessment.

Key Features
  • Six Independent Test Stations: Each with dedicated linear current sources delivering 0-40A AC with <1% THD
  • 36-Channel Precision Thermocouple System: T-type thermocouples with independent cold junction compensation and galvanic isolation
  • Automatic Thermal Equilibrium Detection: PLC-controlled algorithm per IEC 60884-1 Clause 19.3
  • Ambient Temperature Compensation: PT100 RTD reference with ±0.1°C accuracy
  • 10-Inch Color HMI Touch Screen: Real-time monitoring with multi-channel trending
  • Comprehensive Data Recording: Configurable logging intervals with CSV export capability
  • Over-Temperature Protection: User-configurable thresholds with automatic current ramp-down
  • Industrial Construction: Forced-air cooling with thermostatic control
Testing Functions
  • IEC 60884-1 Clause 19 Temperature Rise testing
  • IEC 60669-1 Clause 18 Switch Temperature Rise evaluation
  • Multi-point thermal mapping for hot-spot identification
  • Comparative thermal performance analysis
  • Long-duration thermal stability studies
  • Production lot sampling for quality control
Technical Specifications
Parameter Specification
Test Stations 6 independent stations, expandable
Test Current 0-40A AC, ±0.5% accuracy, THD <1%
Output Voltage 12V AC at 40A (480 VA per station)
Temperature Sensors T-type thermocouples with PT100 ambient reference
Temperature Channels 36 channels total (6 per station), galvanic isolation 500V DC
Temperature Range 0°C to +200°C, ±0.3°C accuracy
Display System 10-inch 1024×600 color TFT HMI touch screen
Power Supply AC 380V ±10%, 50Hz, three-phase, 4 kVA maximum
Data Export USB 2.0 (CSV), RS-232, optional RS-485 Modbus RTU
Dimensions 1400 × 800 × 1700 mm (W×D×H)
Weight Approximately 420 kg
Compatible Test Objects
  • Household plugs (2.5A-16A at 250V AC)
  • Fixed socket-outlets and portable adapters
  • Appliance couplers (IEC 60320 C13/C14, C15/C16, C19/C20)
  • Industrial connectors (IEC 60309, 16A/32A)
  • Connection terminals and junction boxes
  • USB charging socket-outlets with AC-DC converters
Core Technology
  • Linear Regulated Current Source: Pure sinusoidal waveform with <1% THD eliminates harmonic heating artifacts
  • Automatic Thermal Equilibrium Algorithm: Real-time sliding-window computation eliminates operator judgment variability
  • Per-Channel Cold Junction Compensation: Individual PT100 RTD sensors achieve ±0.3°C system accuracy
International Standards Compliance
Standard Clause(s) Requirements
IEC 60884-1:2013 Clause 19.1-19.4 Temperature rise test with limits: terminals ≤45K, accessible metal ≤40K
IEC 60669-1:2017 Clause 18 Switch temperature rise: terminals ≤45K, ≤30K for switches ≤16A
IEC 60309-1:2021 Clause 22 Temperature rise for industrial plugs/socket-outlets
GB/T 2099.1-2008 Clause 19 China national standard equivalent to IEC 60884-1
BS 1363-1:2023 Clause 17 UK standard temperature rise test for BS 1363 plugs
Manufacturer Note: HongCe is an ISO 9001:2015 certified source factory manufacturer with comprehensive in-house manufacturing capabilities including CNC machining, heat treatment, precision grinding, and calibration services. All equipment includes 12-month warranty and lifetime technical support.
