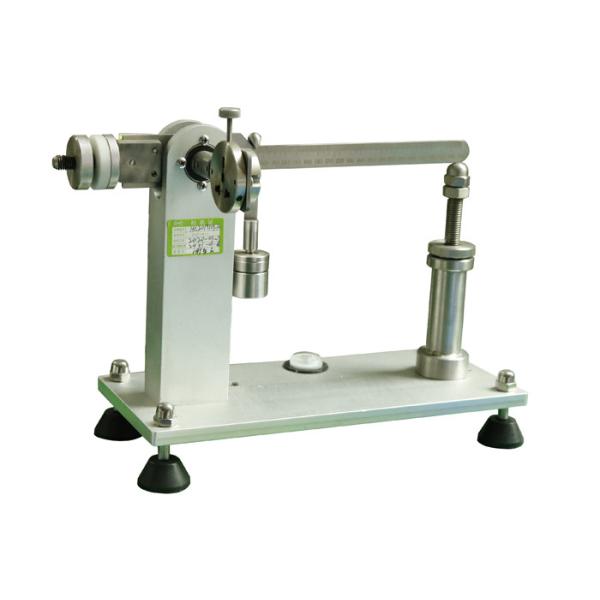

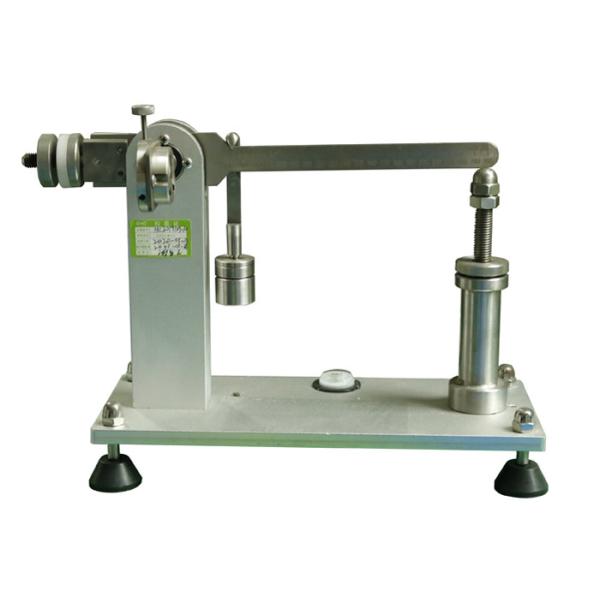

2.5N Plug Socket Torque Tester
2.5N Plug Socket Torque Tester
2.5N Plug Socket Torque Tester
2.5N Plug Socket Torque Tester
2.5N Plug Socket Torque Tester
2.5N Plug Socket Torque Tester
Specifications
Brand Name :
HongCe
Model Number :
HC9908
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
3 days (in stock)
Packaging Details :
Plywood
Balancing arm :
0-250mm
Test station :
1 station
Test weight :
2.5N
Operating method :
By manual
Description

Plug Socket Torque Tester HC9908

2.5N Plug Socket Torque Tester For IEC60884-1 0-250mm Balancing Arm Easy Adjustment Simple Operation

Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 14.23.2

Standard description:

The equipment is inserted into a fixed socket-outlet complying with this standard, the socket-outlet is pivoted about a horizontal axis through the axis of the live socket-contacts at a distance of 8 mm behind the engagement face of the socket-outlet and parallel to this engagement face.

The additional torque which has to be applied to the socket-outlet in order to maintain the engagement face in the vertical plane shall not exceed 0.25 Nm.

Application:

This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

Test sample:

Fixed socket-outlet, plug-in equipment.

Feature:

This device has the advantages of good sensitivity, easy adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixture, strong practicality.

Parameters:

Distance from the contact surface and the Axis of the surface 8mm
Balancing arm 0-250mm
Weight 2.5N, can achieve 0.25Nm to 0.4Nm torque force
Configure all-purpose plug(suit for GB and BS plug), UL plug, European plug, one each

2.5N Plug Socket Torque Tester2.5N Plug Socket Torque Tester
