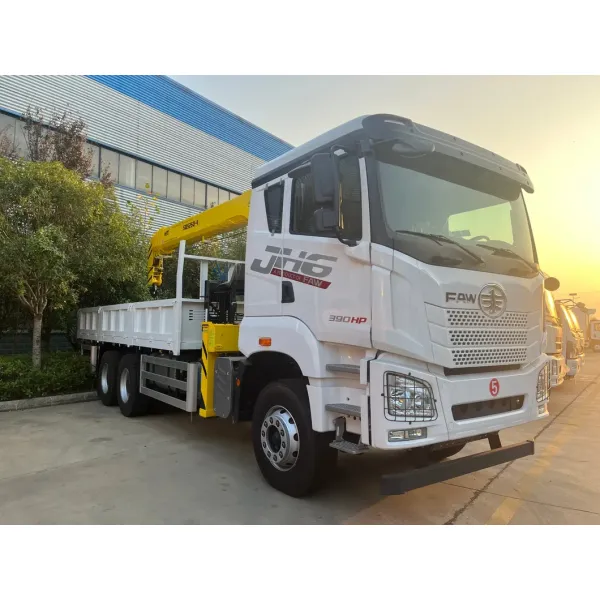

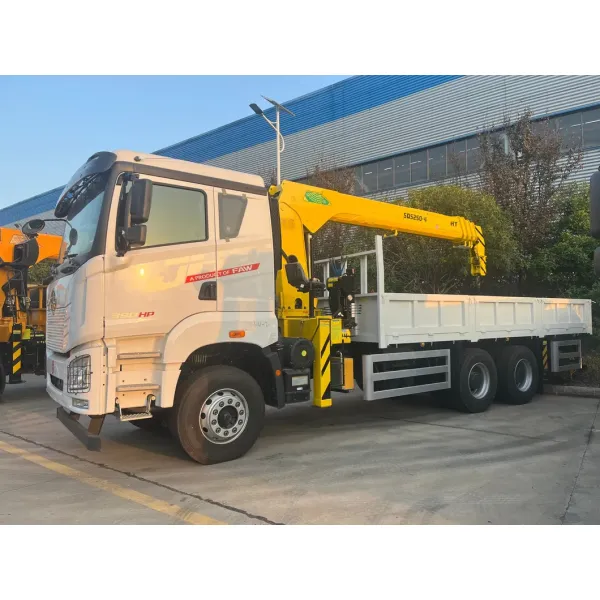

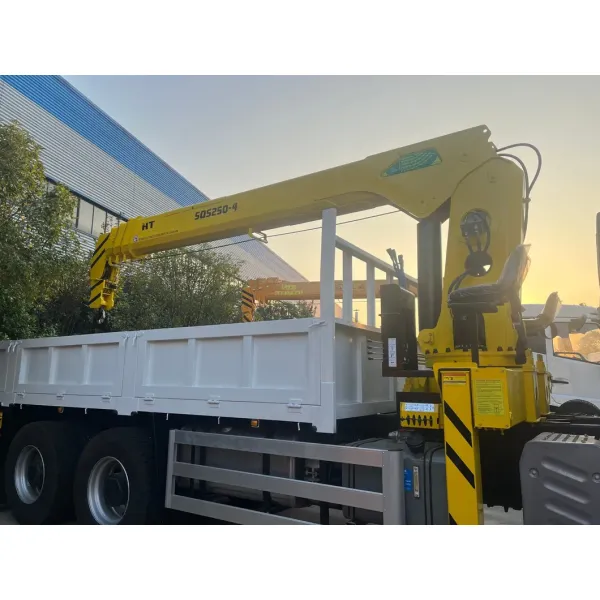

Heavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Heavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Specifications
Certification :
ISO9001
MOQ :
1
Price :
US $50,000-60,000
Place of Origin :
CHINA
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC
Supply Ability :
150 sets/month
Model NO. :
CLW5257JSQ6
Fuel :
Gasoline
Emission Standard :
Euro 6
Condition :
New
Maximum Lifting Height :
15-20m
Maximum Lifting Weight :
8-10t
Shaft Number :
3
Crane Jib :
Four-Arm
Type :
Straight Arm
Transport Package :
Road Transportation and Sea Transportation
Specification :
12000X2550X3750mm
Trademark :
CLW
Origin :
Suizhou
HS Code :
8704224000
Production Capacity :
2000
Description
Detailed Photos
Chinese manufacturers offer SHACMAN/SITRAK/ONGFENG/ISUZU 4X2 6X4 8X4 multi tonnage straight arm or folding arm gantry cranes at affordable prices
Heavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Heavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Product Parameters
[Vehicle technical parameters]
Product trademark Cheng Li card product model CLW5257JSQ6
product name truck with loading crane outline dimension (mm) 12000×2550×3750
gross mass (Kg) 25000 Goods Chamber Size (mm) 7700×2400,2450×550
Rated load mass (Kg) 7900 Front suspension / rear suspension (mm) 1500/3450
curb weight (Kg) 17100 Top vehicle speed (Km/h) 89
Number of passengers (person) 2,3 axle weight (Kg) 7000 / 18000 (2-axial group)
Approach angle / departure angle of (°) 13/10
[Chassis technical parameters]
Chassis model DFH1250A7 Chassis name truck chassis
brand name Dongfeng brand manufacturing enterprise Dongfeng Commercial Vehicle Co., Ltd
number of axles 3 Number of tires 10
wheel base (mm) 5700+1350
tyre size 11.00R20 18PR
Number of steel plate spring sheets 9/10 front gauge (mm) 2010
Fuel types diesel oil rear track (mm) 1860
Emission basis standard The GB17691-2018 countries
engine type Engine production enterprise displacement (ml) power (Kw)
DDi75E260-60
DDi75E300-60
DDi75E340-60		 Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd		 7500
7500
7500		 190
220
250

Company Profile
Heavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Chengli Special Purpose Vehicle Co., Ltd. is located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province. It was established in September 2004 with a registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, covers an area of 610 acres, and has 1786 employees. Its main business scope includes technology research and development, manufacturing, sales, and services of complete vehicles, special purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has successively passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, European Union agreement ADR and other management certifications. It has production qualifications for special vehicles, whole vehicles, new energy vehicles, on-board cranes, car cranes, fire trucks, etc.
The company's "Cheng Liwei" trademark products sell well in domestic and international markets, and are exported to more than 50 countries and regions including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar, etc.

Heavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for Transport
Hot selling car models

Heavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportHeavy-Duty FAW 6X4 Truck with 12 ton Crane for TransportProducts Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ



1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q: How many years of your company's service, especially after-sale service?
A:Chengli Special Purpose Vehicle Co., Ltd. (referred to as "Chengli Special Purpose Vehicle") is a wholly-owned subsidiary of Chengli Automobile Group Co., Ltd. We have been working in this field for nearly 20 years and have strong production and distribution capabilities. We can produce your products within 15 working days. We provide one-year after-sales service.

3. Q: Is there any advantages of your price?
A: CLW Group  is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6.Delivery time: 25 working days after payment is received.
