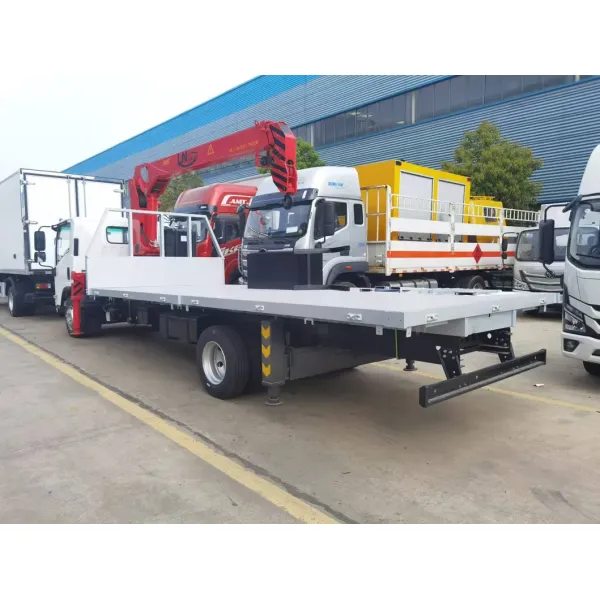

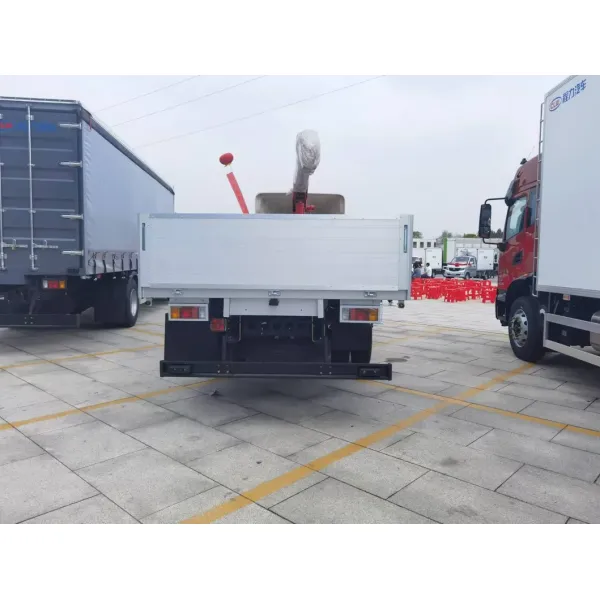

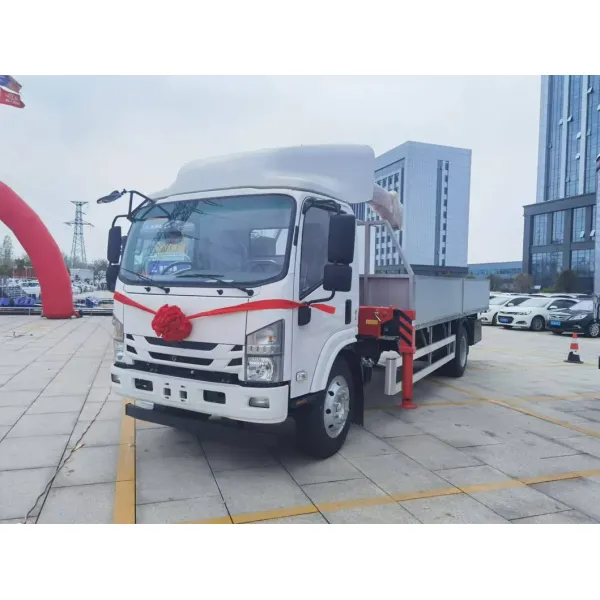

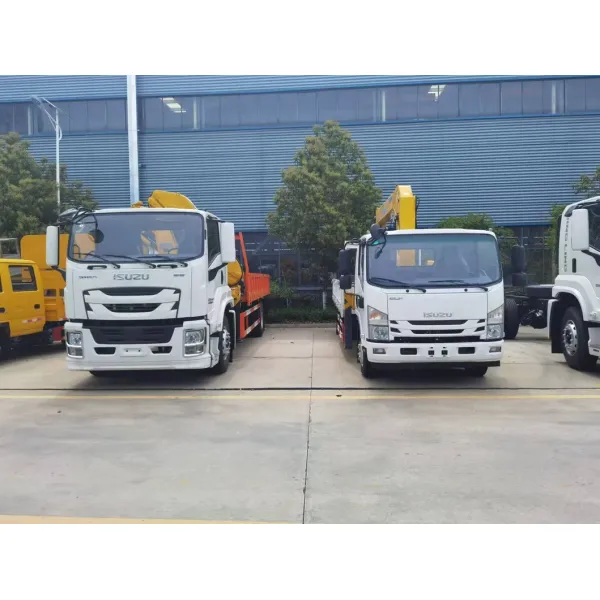

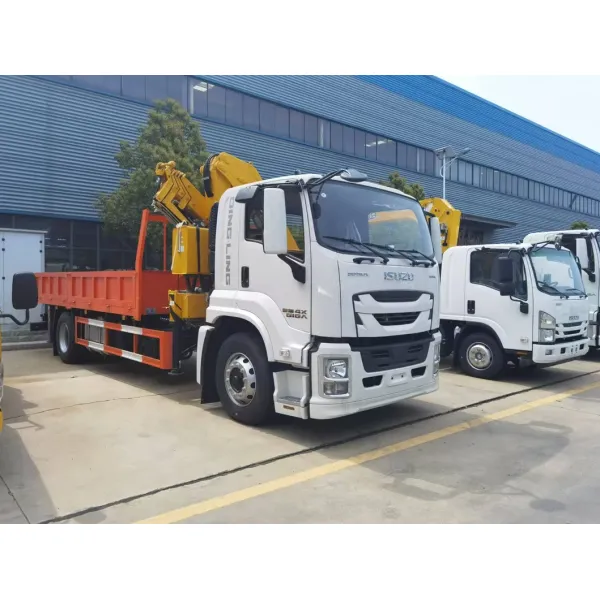

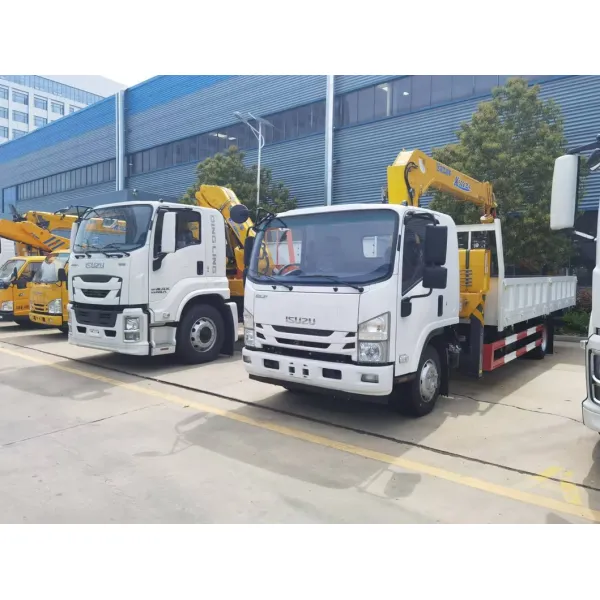

Isuzu 8 ton 10 ton Cargo Crane Truck
Isuzu 8 ton 10 ton Cargo Crane Truck
Isuzu 8 ton 10 ton Cargo Crane Truck
Isuzu 8 ton 10 ton Cargo Crane Truck
Specifications
MOQ :
1
Price :
US $16,800-36,800
Place of Origin :
CHINA
Certification :
ISO9001
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC
Supply Ability :
150 sets/month
Model NO. :
CLW5180JSQ
Shaft Number :
2
Crane Jib :
Five-Arm
Type :
Straight Arm
Transport Package :
Complete Vehicle
Specification :
9800mm*2550mm*3850mm
Trademark :
CLW
Origin :
Suizhou
HS Code :
8704224000
Production Capacity :
2000
Description
Chinese manufacturers offer SHACMAN/SITRAK/ONGFENG/ISUZU 4X2 6X4 8X4 multi tonnage straight arm or folding arm gantry cranes at affordable prices
Isuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane Truck
[Vehicle technical parameters]
Product trademark The bell card
product name truck with loading crane product model CLW 5180JS Q
gross mass (Kg) 18000 Tank volume (m3)
Rated load mass (Kg) 5705 Overall dimensions (mm) 9000×2530×3700
Preparation mass (Kg) 12100 Goods Chamber Size (mm) 5650×2430×600
Rated passenger capacity (person)   Quasi-trailer total mass (Kg)
Number of passengers (person) 3 Maximum saddle load mass (Kg)
Approach angle / departure angle of (°) 15/12 Front suspension / rear suspension (mm) 1335/2115
axle weight (Kg) 6500/11500 Top vehicle speed (Km/h) 89
remarks
[Chassis technical parameters]
Chassis model QL1180JQFRY Chassis name truck chassis
brand name Isuzu card manufacturing enterprise Qingling Automobile Co., Ltd
number of axles 2 Number of tires 6
wheel base (mm) 5550
tyre size 295/80R22.5 16PR
Number of steel plate spring sheets 7/7+7 front gauge (mm)
Fuel types diesel oil rear track (mm) 1855
Emission basis standard The GB17691-2018 countries
engine type Engine production enterprise displacement (ml) power (Kw)
4HK1-TCG60
4HK1-TCG62		 Isuzu (China) Engine Co., Ltd
Isuzu (China) Engine Co., Ltd		 5193
5193		 151
165

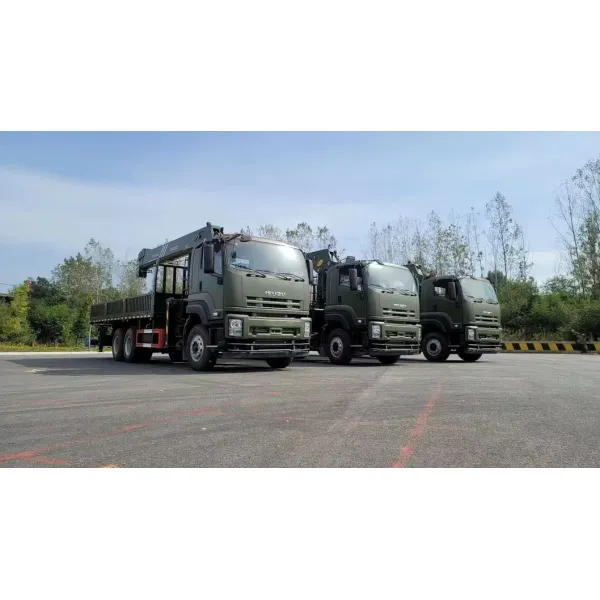

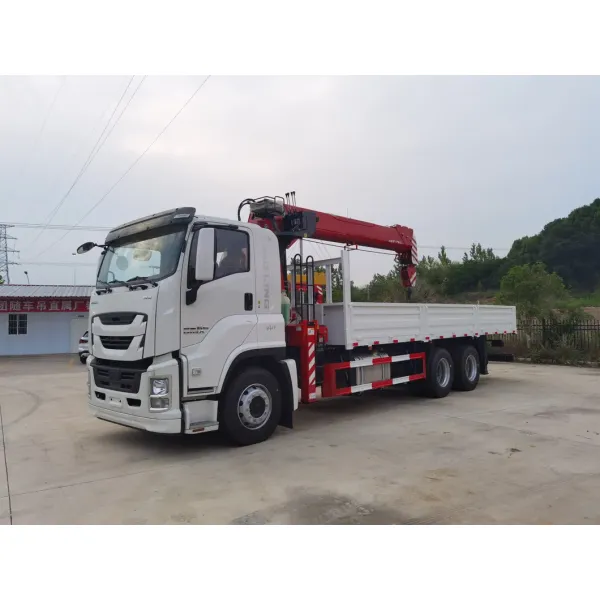

6X4 Isuzu 12T straight arm crane truck
Isuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckIsuzu 8 ton 10 ton Cargo Crane TruckISUZU-G type 8-ton -5-section arm (wheelbase 5100mm)
(National VI 205HP horsepower)
4X2 single bridge
Model: XCL5166JSQL6
Engine: YCS04200-68
Wheelbase: 5100
Transmission: SC8JS85E-C original power take-off
Front and rear axles: 5T/10T
Frame: 280mm straight frame
Tire: 10.00R20 steel wire tire
Number of leaf springs: 9/11+8
Number of passengers allowed: 3 people
Container size: 6100 * 2400 * 550
Vehicle dimensions: 9000 * 2550 * 3750
