Vehicle model: CL5323GYYLZ6 aluminum alloy oil tanker
Announcement 30.4 cubic meters, actual volume 31 cubic meters, rated mass: 20300/20365 (6 units in stock)
Vehicle model: CL5322GYYLZ6 aluminum alloy oil tanker
Announcement 24.3 cubic meters actual volume 24.8 cubic meters rated mass: 20570/20635 (8 units in stock)
Chassis configuration: Shandeka high top/flat top cab; MC07H.35-60 engine; HOWO 9-speed gearbox+HW70 flange power take-off; 7.5 ton front axle (disc); Man 11 ton self-adjusting arm double rear axle (drum); 8 airbag front less rear air suspension (3/3/-/-);  imported steering gear; Front exhaust system; EBS+ESC; High end bumper (all metal); 295/80R22.5; 400L aluminum alloy fuel tank; Large screen China National Heavy Duty Truck Intelligent Communication; Electromagnetic power switch; Emergency device for tire blowout of steering wheel; Equipped with reverse buzzer; Tire pressure monitoring system; Dangerous goods marker lights; Wheelbase 1800+4575+1400, all others come standard

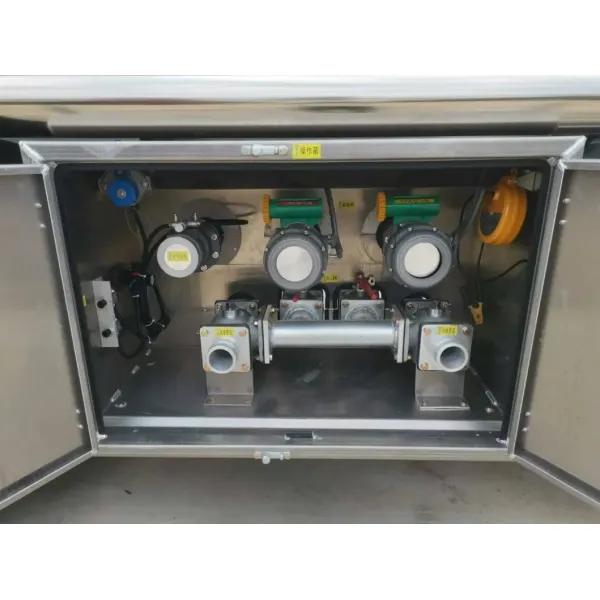

Upper configuration: The thickness of the tank body is in accordance with national standards, and the size of the tank body is strictly made according to the announcement. The declared volume of diesel is 24.3 cubic meters, and the actual effective volume is 24.8 cubic meters. The declared volume of gasoline is 30.4 cubic meters, and the actual volume is 31 cubic meters. Single/double compartments can be evenly divided, and the double compartments can be independent and interconnected. The tank body is made of 5182 aluminum alloy material. Each head and compartment plate needs two reinforcing ribs, and the upper and lower parts are reinforced with triangular supports and added with cushion plates. The tire load-bearing capacity is two square tube type (sub type). The announcement medium is "diesel/gasoline". The top of the tank is fully covered with anti slip mesh, equipped with 80-80 pumps, 1/2 sets of bottom mounted, 2 sets of European standard, and two sets of bottom mounted share one set of oil and gas recovery, one electrostatic socket, all of which are inside the box. All boxes are fully sealed, and oil and gas recovery is carried out on the cap, one pedal inside the tank, and one in the front and rear compartments. The tank mouth can be raised by 15-20 centimeters, the water tank can hold 400-600-800 liters, and the movable folding guardrail is detachable. 2 fire extinguishers (8 kg), triangular ceiling light, electrostatic coil. The rest are standard
Advantage 1: The shape of the can ensures long-lasting color retention,
Advantage 2: Each head and compartment plate needs two reinforcing ribs
Advantage 3: The load-bearing capacity of the middle tire is two square tube types (sub type)
Advantage 4: In tank pedal, one for each front and rear compartment
Advantage 5: It can be customized according to customers.
