High-Quality Dongfeng 45m Aerial Work Truck for Sale
High-Quality Dongfeng 45m Aerial Work Truck for Sale
Specifications
Model NO. :
CL5140JGK6
Type :
Self-propelled
Certification :
ISO9001
Emission Standard :
Euro 6
Hoesrpower :
195HP
Payload :
14060kg
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x2
Condition :
New
Homework Height :
34m
Size of Work Basket :
2000X700X1000mm
Work Platform Load Capacity :
200kg
Main Arm Rotation Angle :
200-500kg
Hydraulic Support Leg :
4
Operating System :
Can Wireless Remote Control
Video Display :
5-Inch Display Screen
Vehicle Size :
Vehicle Size
Transport Package :
Road Transportation and Sea Transportation
Specification :
8500x2500x3880mm
Trademark :
Cheng Liwei brand
Origin :
Suizhou
HS Code :
8705909990
Production Capacity :
2000
MOQ :
1
Price :
US $30,000-40,000
Place of Origin :
CHINA
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC,
Supply Ability :
150 sets/month
Description

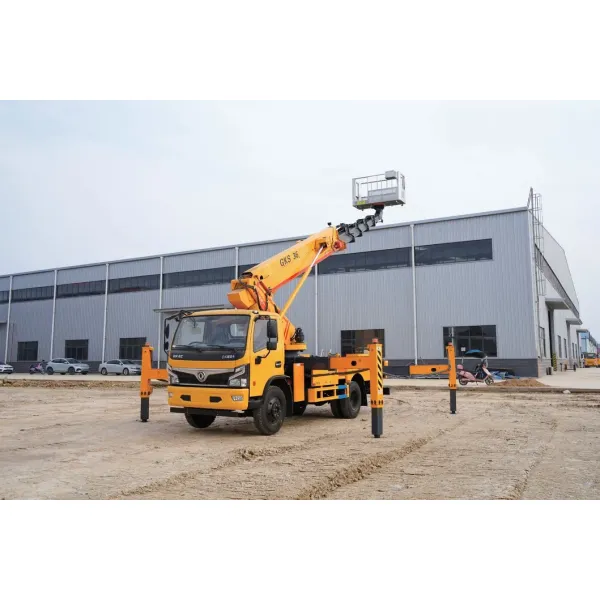

The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
High-Quality Dongfeng 45m Aerial Work Truck for SaleHigh-Quality Dongfeng 45m Aerial Work Truck for SaleHigh-Quality Dongfeng 45m Aerial Work Truck for SaleHigh-Quality Dongfeng 45m Aerial Work Truck for SaleHigh-Quality Dongfeng 45m Aerial Work Truck for Sale
High-Quality Dongfeng 45m Aerial Work Truck for Sale
Main technical parameters:


Cheng Li brand 45 meters
Main technical parameters of the aerial working vehicle
class project unit data


Dimensions parameters		 ★ cabinet minister mm 8440
★ total width mm 2550
★ overall height mm 3870

mass parameter		 Number of passengers (including drivers) human being 3
gross mass kg 14060


Main performance parameters		 Rated load of the working platform kg 200
Maximum working height is ★ m 45M
★ Operating range at the maximum working height
m
5.0
★ Maximum operating range m 18.0
Operation height is ★ at the maximum operation range
m
17.0
The leg span
★		 broadwise mm 6600
direction mm 4560
★ wheel base mm 4400
Maximum driving speed Km/h 89
Configuration Description:
Part name Brief description
batholith Dongfeng Freika single row EQ1125 SJ8 CDC
engine Cloud inside the 170 horsepower engine country six emissions
pilothouse Single row seat, can ride 3 people
Turn to assist power-assisted steering
thermoregulation Cab cooling and cooling air conditioning
Panel and walking plate Stainless steel fence and anti-skid walking pad
Take force system mechanized operation
foot platform High strength stainless steel size: 2000X700X1000
Arm frame form ★ Seven section hexagonal working arm, synchronous expansion
rotator 360 degrees of continuous rotation
landing leg ★ Front V after V, individually adjustable (control)
operate ★ Electronic control operation, also equipped with manual emergency operation

navar		 CAN bus control system, equipped with wireless remote control, realize stepless speed control
The leveling system The quiescent fluid is automatically leveled
Basic functions and security configuration:
The maximum working height is 45 meters, and the maximum operating range is 18 meters.
name Brief description

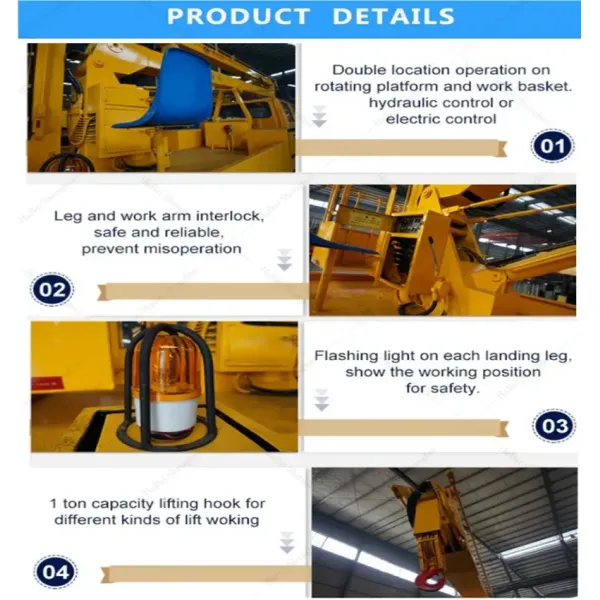

Get on and off automatic interlocking device
★ Used for interlocking on and off to prevent misoperation


Manual emergency pump		 ★ When the engine and main pump fail, the staff can be sent back to the ground and the whole vehicle back to the driving state through the emergency system
Emergency stop device of the working platform
★ For emergency stop operation and limit the boom operation

Automatically limits the working amplitude		 ★ When the working range reaches the specified value, automatically limit the dangerous direction of work.
"Real land support" limits the work ★ When the leg is not in real time (soft legs), the lifting boom will limit the dangerous direction.(apolegamy)
Night safety warning device ★ There are engineering strobe lights and LED lights on the vehicle
Engine ignition and flameout ★ The controller can fire the engine and control the flameout

The "Force" operation function		 ★ When your work is restricted, you can expand your work through the "mandatory" function

3. Introduction and performance features of the aerial work vehicle:
1. Function introduction:
The working height of the brand straight arm aerial working car is 12 meters, 14 meters, 16 meters, 18 meters, 20 meters,
21 meters, 22 meters, 28 meters, 29 meters, 45 meters, using the full telescopic working arm, the leg span is large, stable

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
High-Quality Dongfeng 45m Aerial Work Truck for SaleHigh-Quality Dongfeng 45m Aerial Work Truck for SaleFAQ
1. Q: How about the quality of trucks of your factory?

A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q: How many years of your company's service, especially after-sale service?

A:Hubei CLW group and our group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q: Is there any advantages of your price?

A: CLW Group  is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.
