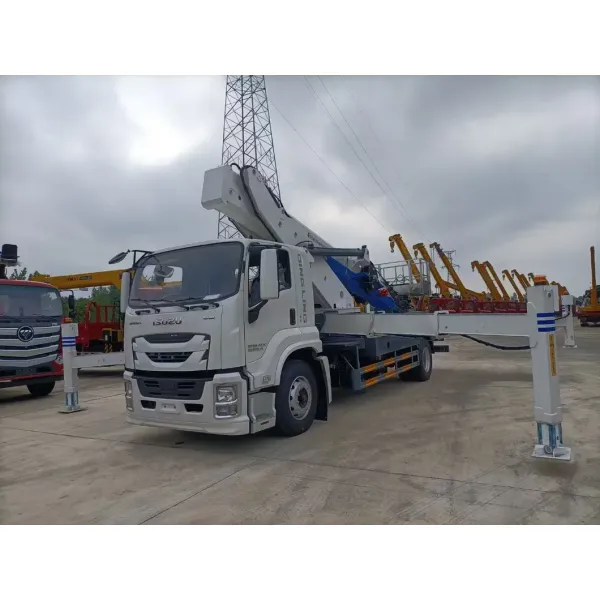

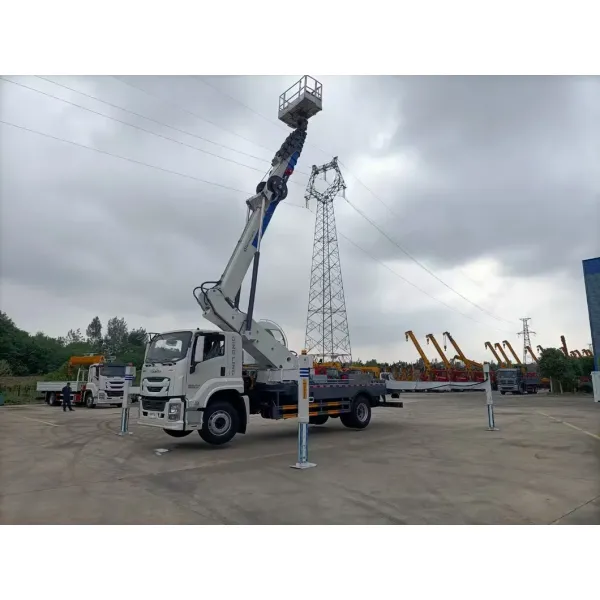

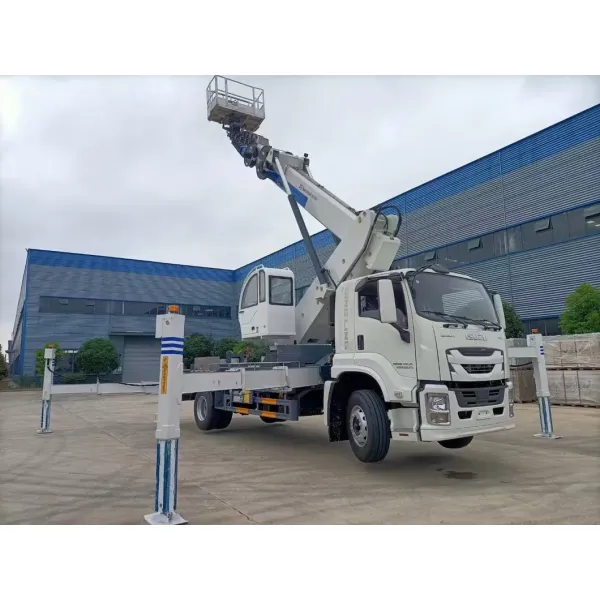

Premium Isuzu 45m Aerial Work Platform Hydraulic Lift Truck

Specifications

Model NO. :

CLW5180JSQ

Type :

Certification :

ISO9001

Emission Standard :

Euro 6

Hoesrpower :

250HP

Payload :

18000kg

Fuel :

Diesel

Transmission Type :

Manual

Drive Wheel :

4x2

Condition :

New

Homework Height :

45m

Size of Work Basket :

1900X700X1200mm

Work Platform Load Capacity :

500kg

Main Arm Rotation Angle :

360

Hydraulic Support Leg :

Operating System :

Can Wireless Remote Control

Video Display :

5-Inch Display Screen

Vehicle Size :

9665X2500X3980mm

Transport Package :

Road Transportation and Sea Transportation

Specification :

9665*2500*3980mm

Trademark :

ISUZU

Origin :

Suizhou

HS Code :

8705909990

Production Capacity :

2000

MOQ :

Price :

US $60,000-70,000

Place of Origin :

CHINA

Packaging Details :

Nuked

Delivery Time :

15 working days

Payment Terms :

T/T,LC,

Supply Ability :

150 sets/month

Description

Chassis parameters:
batholith	isuzu
Chassis model	QL1180JQFRCY
pilothouse	isuzu GAGI
Drive form	*42**
wheel base	5550mm
engine type	4HK1-TCG60
Engine horsepower	Isuzu 205HP
engine power	151 Kw
displacement	5193ml
effluent standard	Six countries
gear-box	Isuzu MLD 6-gear transmission
tyre	295 / 80R22.5 16PR tyre
Front / rear of the car bridge	6500/11500
car beam	850MM
air-conditioning	have
Direction to help	have
Broken gas brake	have
Multi-functional dashboard	have
Modified configuration
gross mass	18000Kg
curb weight	17805Kg
Chassis weight	5100Kg
Upper weight	12705Kg
outline dimension	*966525003980mm*
Rated load of the working platform	200Kg
Maximum operation height	45M
Maximum operation range	18M
On the operation	Install the cab
Leg span: in the transverse / longitudinal direction	6600/5560mm
Number of raised arms	7-section wire rope chain expansion structure
revolving stage	360° continuous rotation
Lift the height	30 M
operating system	CAN wireless remote control / manual emergency operation
High-strength stainless steel platform load	Dimensions: 2,000 X700X1000mm / 200 Kg
The highest speed	89Km/h
hydraulic leg	Front V type V 4 / root
Manual emergency pump	When the engine and main pump fail, the staff can be sent back to the ground and the vehicle back to the driving state through the emergency system
Get on and off automatic interlocking device	To interlock on and off the car to prevent misoperation
Night safety warning device	On the vehicle there are engineering strobe lights, LED lights
Operation display	A 5-inch LCD screen

Chengli Special Purpose Vehicle Co., Ltd. is located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province. It was established in September 2004 with a registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, covers an area of 610 acres, and has 1786 employees. Its main business scope includes technology research and development, manufacturing, sales, and services of complete vehicles, special purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has successively passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, European Union agreement ADR and other management certifications. It has production qualifications for special vehicles, whole vehicles, new energy vehicles, on-board cranes, car cranes, fire trucks, etc.
The company's "Cheng Liwei" trademark products sell well in domestic and international markets, and are exported to more than 50 countries and regions including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar, etc
Premium Isuzu 45m Aerial Work Platform Hydraulic Lift Truck

After more than 20 years of leapfrog development, Chengli Special Purpose Vehicle Co., Ltd. now covers an area of over 3000 acres, with a construction area of 1.2 million square meters and more than 5000 sets of various large-scale production equipment. It has 16 subsidiaries, over 40 member factories, and more than 100 professional factories. It has four major production bases in the southern suburbs of Zengdu District, Zengdu Economic Development Zone, Huangpi District of Wuhan City, and Dongjin New District of Xiangyang City. The company can produce 50000 sets of automotive chassis, 100000 sets of special purpose vehicles, 10000 sets of new energy vehicles, and 20000 sets of emergency equipment annually.
The company has obtained national industrial product production license, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certification, after-sales service certification, 3C mandatory certification, automobile energy conservation and environmental protection certification, and automobile exemption certification. We have production qualifications for specialized vehicles, on-board cranes, truck cranes, fire trucks, new energy vehicles, complete vehicles, and buses.
Premium Isuzu 45m Aerial Work Platform Hydraulic Lift Truck

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q: How many years of your company's service, especially after-sale service?
A:Chengli Special Purpose Vehicle Co., Ltd. (referred to as "Chengli Special Purpose Vehicle") is a wholly-owned subsidiary of Chengli Automobile Group Co., Ltd. We have been working in this field for nearly 20 years and have strong production and distribution capabilities. We can produce your products within 15 working days. We provide one-year after-sales service.

3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.
