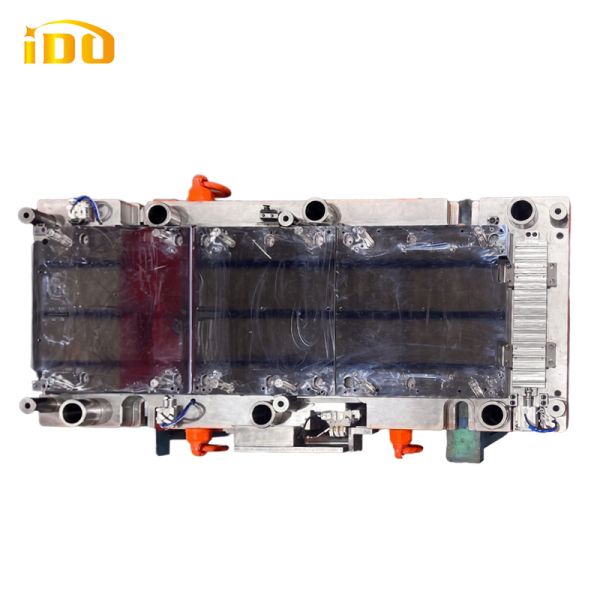

High Precision Progressive Die for Washing Machine Inner Drum with 1,000,000 Shots Life and Customizable Size
High Precision Progressive Die for Washing Machine Inner Drum with 1,000,000 Shots Life and Customizable Size
High Precision Progressive Die for Washing Machine Inner Drum with 1,000,000 Shots Life and Customizable Size
High Precision Progressive Die for Washing Machine Inner Drum with 1,000,000 Shots Life and Customizable Size
Specifications
Brand Name :
IDO
Model Number :
washing machine
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
T/T,L/C
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Washing machine drum
Mould Type :
Progressive mold
Mould Weight :
1T
Tooling Material :
DC53 / D2 / SKD11 / Cr12MoV / 45# / P20
Cusotmer :
Overseas
Size :
Customizable
Tooling Steel :
DC53 / D2 / SKD11 / Cr12MoV / S45C / P20
Tooling Type :
Metal Stamping Tooling for Auto Part
Mould Life :
1,000,000 shots
Description
High Precision Progressive Die for Washing Machine Inner Drum Sheet Metal Stamping Parts
Product Overview

Our precision stamping dies are specifically engineered for the high-volume production of washing machine inner drums. Utilizing high-grade DC53 or SKD11 tool steel, we ensure the molds deliver exceptional durability and surface finish requirements necessary for stainless steel laundry tubs.

Why Partner With Us?
  • Industry-Leading Experience: Over 15 years of specialization in home appliance sheet metal tooling, particularly for complex cylindrical and perforated drum structures.
  • Full-Cycle Engineering: We provide a "One-Stop Solution"—from initial DFM (Design for Manufacturing) analysis and mold flow simulation to final trial production and global shipping.
  • Strict Quality Control: Equipped with high-precision CNC centers, slow-feeding wire cut machines, and CMM inspection to guarantee mold accuracy.
  • Customization Mastery: We understand the unique challenges of inner drum production, such as maintaining concentricity and preventing scratches on mirror-finish stainless steel.
  • Fast Response & Support: 24/7 technical support and a commitment to providing mold trial videos and dimensional inspection reports before delivery.
Technical Specifications
Mould/Tool Type Progressive tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063, 7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade Terms FOB (Shanghai)
Mould Lead Time Generally 6~8 weeks (as per actual situation)
