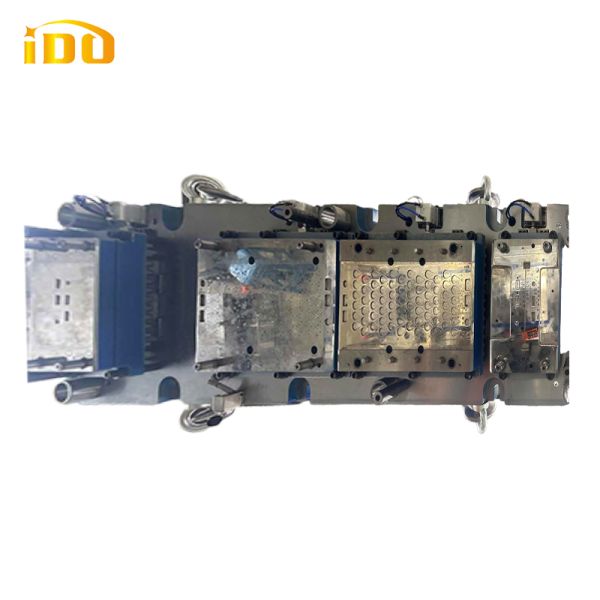

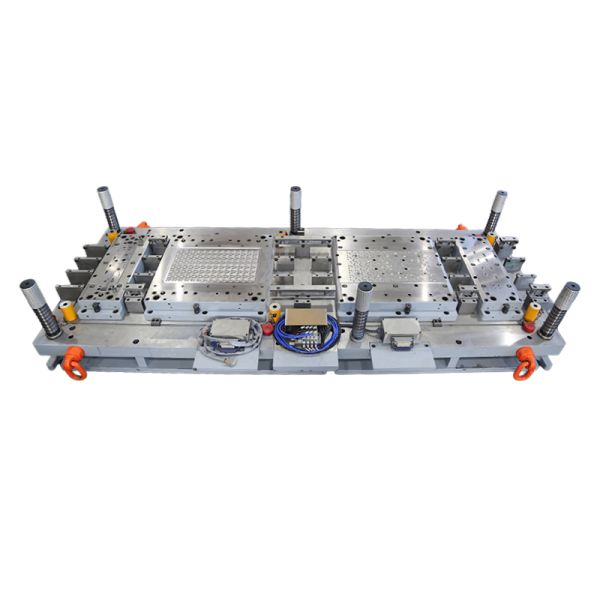

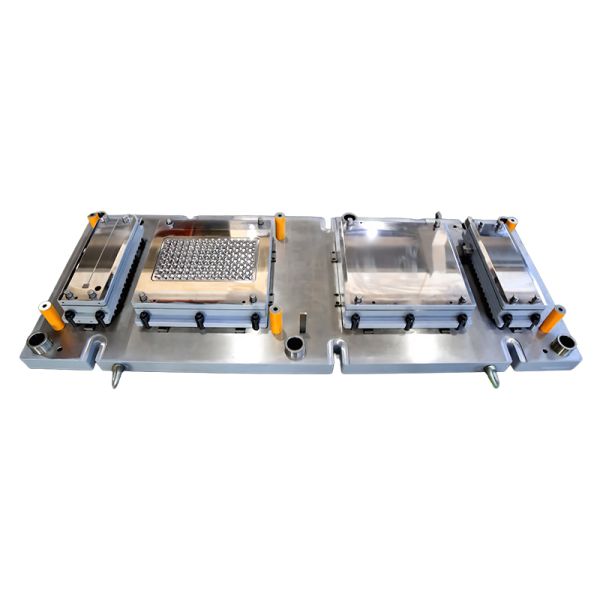

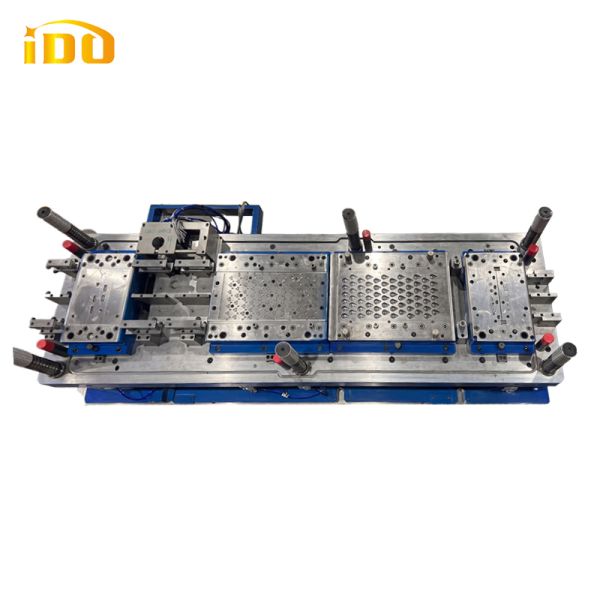

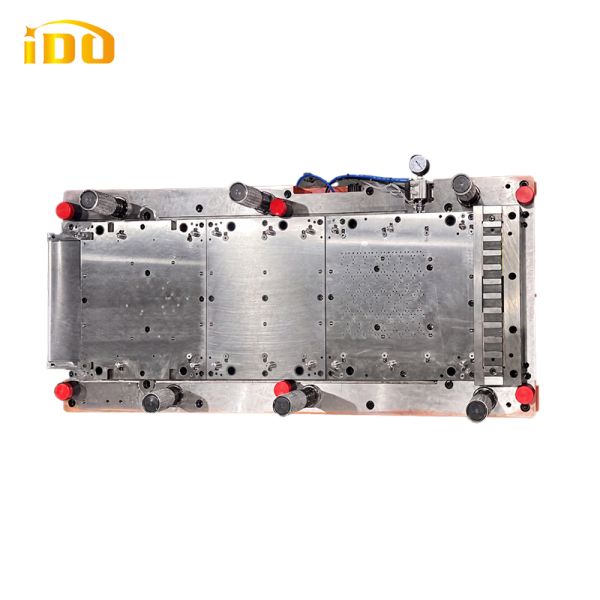

High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum
Specifications
Brand Name :
IDO
Model Number :
washing machine
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Warranty :
12 months
Designsoftware :
AutoCAD, SolidWorks
Mould Life :
1,000,000 shots
Productname :
Metal Stamping Die
Precision :
Tolerance +/- 0.02~0.05 Mm
Customization :
Available
Quality Control :
internal and external
Part Quality Control :
CMM
Description

High Precision Progressive Die for 7kg Washing Machine Stainless Steel Inner Drum


Description:

We provide high-end stamping mold solutions specifically engineered for 7kg capacity washing machine inner drums. Our tooling is designed to handle the complex requirements of forming, piercing, and flanging stainless steel sheets (SUS304/430) while maintaining perfect concentricity and a smooth, snag-free finish for clothing protection.


Key Performance Features:

  • Precision Deep Drawing: Advanced geometry design to prevent material thinning or fracturing during the drum forming process.

  • Burr-Free Perforation: Specialized punching pins ensure all drainage holes are smooth, preventing damage to delicate fabrics during the wash cycle.

  • Vibration Control: Ensures the inner drum maintains high balance accuracy, reducing noise and mechanical wear in the final appliance.

  • Modular Insert Design: All critical wearing parts are modular, allowing for fast replacement on the production line without disassembling the entire die.


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
