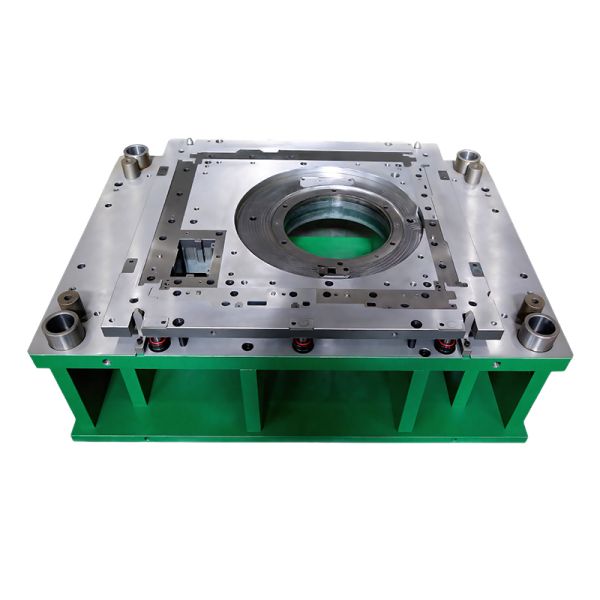

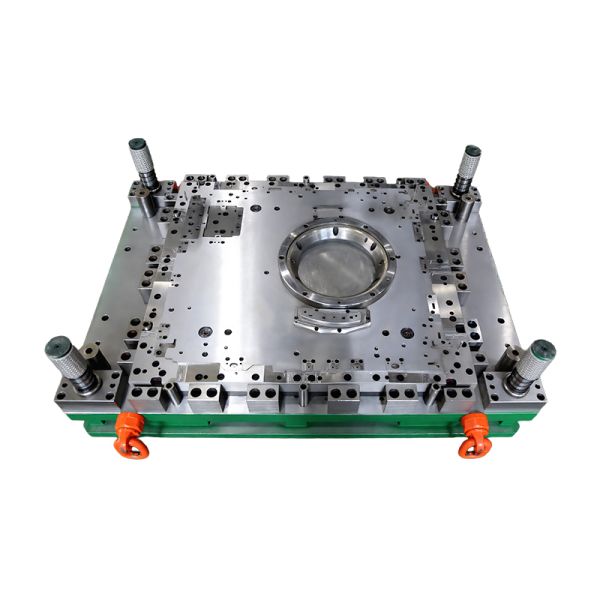

9kg Household Washing Machine Front Panel Stamping Mold
9kg Household Washing Machine Front Panel Stamping Mold
9kg Household Washing Machine Front Panel Stamping Mold
9kg Household Washing Machine Front Panel Stamping Mold
9kg Household Washing Machine Front Panel Stamping Mold
9kg Household Washing Machine Front Panel Stamping Mold
Specifications
Brand Name :
IDO
Model Number :
washing machine front pannel
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mold Name :
Washing Machine Front Panel Stamping Mold
Applicable Capacity :
9kg
Mold Material :
High-Quality Tool Steel
Product Material :
Steel Sheet (customizable)
Thickness Range :
Customized according to panel design
Stamping Accuracy :
High precision with stable tolerance
Mold Structure :
Optimized for durability and easy maintenance
Production Mode :
Batch Production / Mass Production
Description

9kg Household Washing Machine Front Panel Stamping Mold


Description:

The 9kg Household Washing Machine Front Panel Stamping Mold is designed for precision stamping of front panels used in household washing machines with a 9kg capacity.
With a well-optimized mold structure and strict dimensional control, the mold ensures accurate hole positioning, smooth surface quality, and consistent forming results, meeting both appearance and assembly requirements of modern home appliances.

Manufactured from high-quality mold steel and processed with advanced machining technology, this stamping mold offers stable performance, high production efficiency, and long service life. It supports continuous and mass production, and can be customized according to different front panel designs, materials, and production requirements, making it a reliable solution for washing machine manufacturers and appliance OEMs.


Quick Detail:

  • Product Name: 9kg Household Washing Machine Front Panel Stamping Mold
  • Mold Type: Stamping Mold
  • Application: Washing Machine Front Panel Production
  • Applicable Capacity: 9kg
  • Suitable Materials: Cold-Rolled Steel / Galvanized Steel / Stainless Steel
  • Process: Stamping, Bending, Forming
  • Feature: High precision, stable stamping performance, long mold life
  • Customization: Supported (panel size, structure, hole layout)
  • OEM & ODM: Available


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
