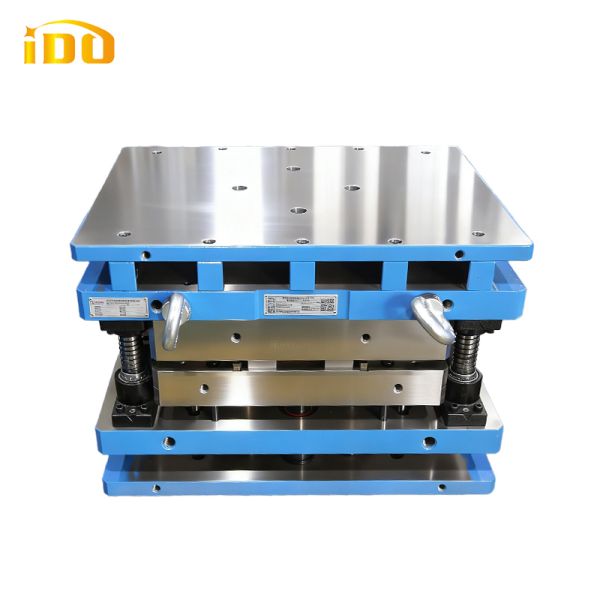

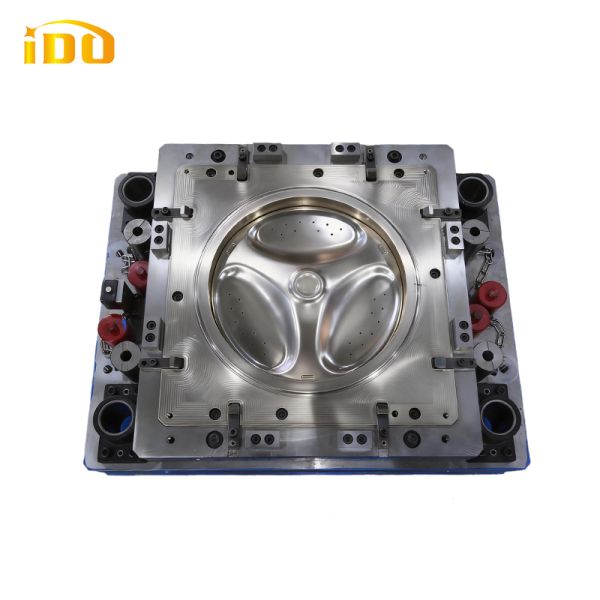

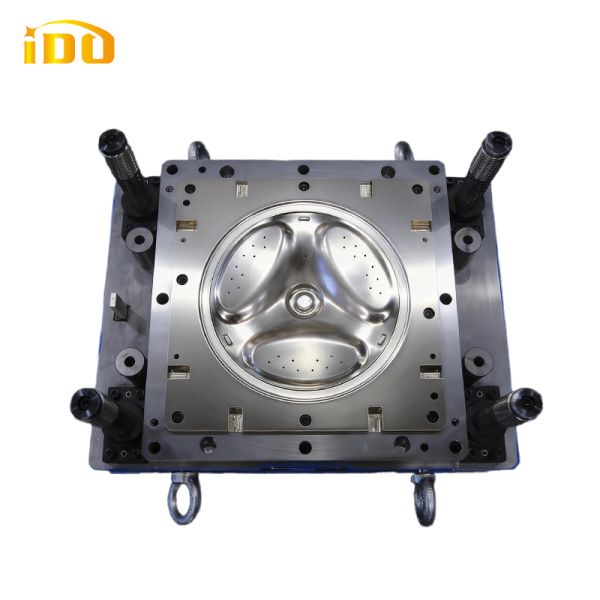

1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
Specifications
Brand Name :
IDO
Model Number :
washing machine
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Certification :
ISO9001
Product Name :
Rear Cover Condenser Tray Stamping Mold
Applicable Product :
Wall Mounted Dryer
Capacity :
1kg
Mold Material :
Tool Steel
Mold Life :
≥ 300,000 Strokes
Processing Accuracy :
±0.02 mm
Production Mode :
Manual / Automatic Line
Custom Design :
Yes
Description

1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold

Description:

This stamping mold is specially designed for producing the rear cover condenser tray of a 1kg wall-mounted dryer inner drum. The mold is engineered to meet the requirements of high precision, stable forming quality, and long service life, making it suitable for mass production of household appliance components.

The mold structure is optimized based on the material characteristics and forming complexity of the condenser tray. It ensures accurate dimensional control, smooth surface quality, and consistent product performance throughout long-term operation. High-strength mold steel and precision machining processes are applied to enhance wear resistance and overall durability.

This stamping mold supports efficient production with reliable repeatability, helping manufacturers improve productivity, reduce scrap rates, and maintain stable product quality. It is widely used in the manufacturing of wall-mounted dryers and related household appliance components, and can be customized according to different product drawings, materials, and production requirements.

Quick Detail:

  • Product Type: Stamping Mold
  • Application: Wall Mounted Dryer Inner Drum Rear Cover
  • Product Name: Condenser Tray
  • Capacity Specification: 1kg
  • Mold Structure: Progressive
  • Mold Material: High Quality Tool Steel
  • Processing Method: Precision CNC Machining
  • Customization: Available According to Drawings

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
