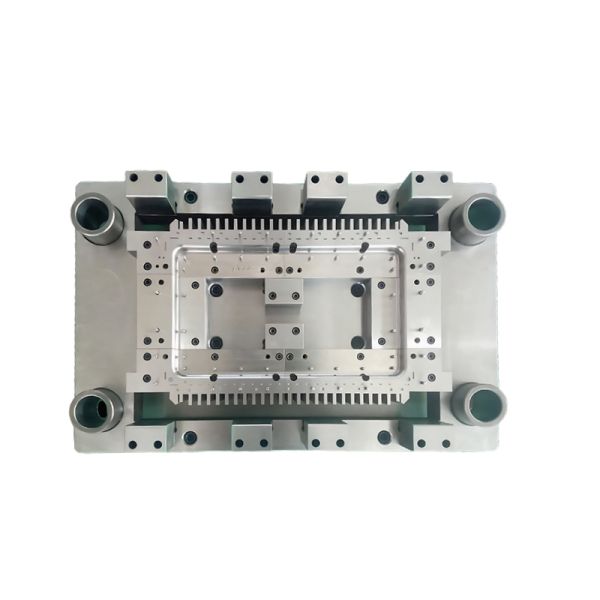

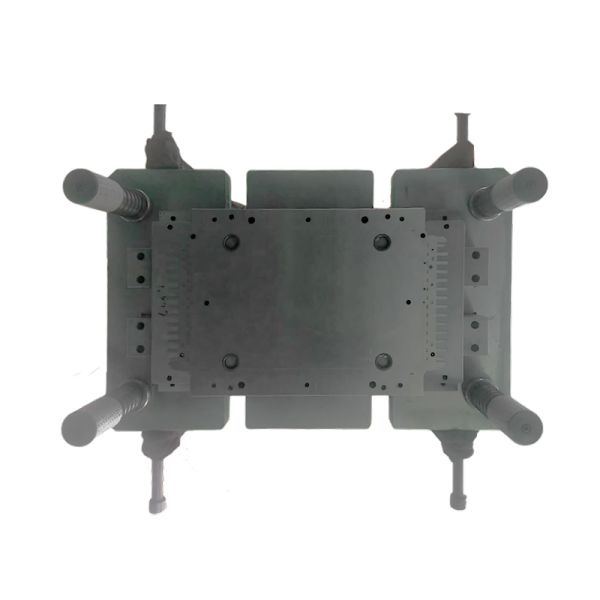

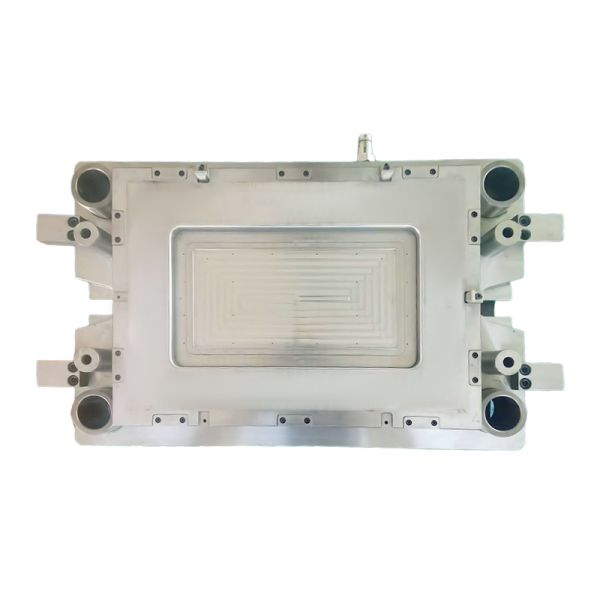

1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
1T DC04 Microwave Oven Door Stage Die 850 × 550 × 345 mm
Specifications
Mould Weight :
1T
Transport Package :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Material :
DC04
Punch Tonnage :
300T
Service Life :
1 Million Shots
Part Name :
Microwave oven door
Compatibility :
Yes
Mould Type :
Stage mold
Mould Size :
850*550*345mm
Brand Name :
IDO
Model Number :
Microwave oven door
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Description

Metal Stamping Mold Stage Mold For Major Appliance Washing Microwave Oven Door

Description:

Our Metal Stamping Mold Stage Mold for Major Appliance Washing Microwave Oven Door is designed for high-precision forming of microwave oven door components. Built for durability and stable performance, this mold ensures accurate dimensions, consistent quality, and long service life. Suitable for various sheet metal materials used in major household appliances, it helps manufacturers improve production efficiency, maintain product standards, and support reliable large-scale manufacturing operations.

Quick Detail:

  • 6–14s cycle time (product dependent).
  • 30-minute repair; 15-minute tool change.
  • Punch edge sharpen after 300k–500k cycles.
  • Software supervises die movement.
  • One press table and tool set for cabinet production, reducing cost.
  • Sub-die only removed during maintenance.
  • One tool set handles multiple models with program changeover.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
