Specifications
Brand Name :
IDO
Model Number :
microwave oven top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Microwave oven top
Part Material :
DC51D+Z(T0.45)
Mould Type :
Stage mold
Mould Size :
550*700*275.45mm
Mould Weight :
0.6T
Processing Method :
Punching and Shearing Mould
Technics :
Cutting Die
Manufacturing Technology :
Computer Technology
Description

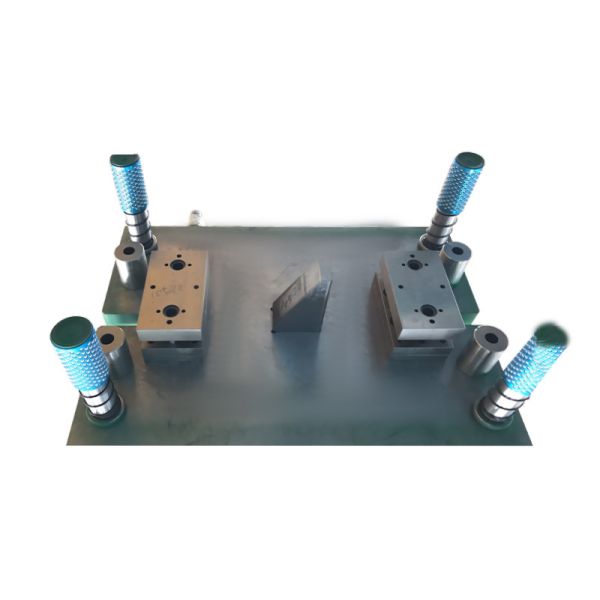

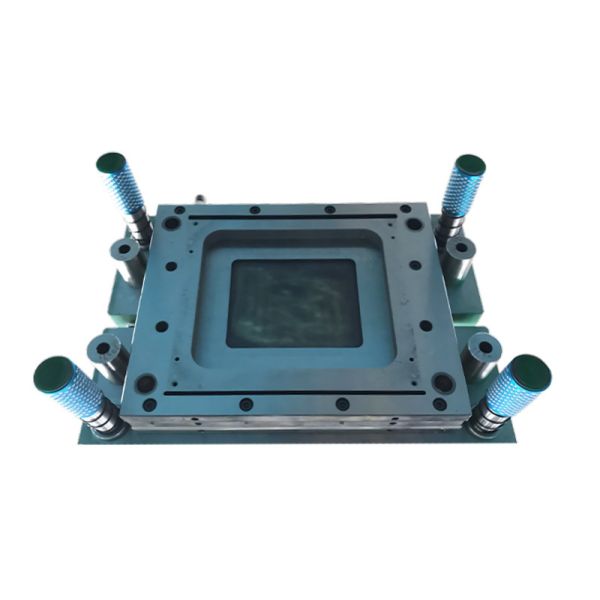

DC51D+Z(T0.45) Steel Stamping Die Stage Die For Microwave Oven Top

Description:

Our DC51D+Z (T0.45) Steel Stamping Die – Stage Die for Microwave Oven Top is engineered for precise sheet metal forming and consistent mass production. Made from high-strength galvanized steel (DC51D+Z), this stage die ensures accurate shaping of microwave oven upper covers with tight tolerances and stable performance. It is designed to improve production efficiency, reduce tooling wear, and deliver high-quality stamped components that meet international standards for home appliance manufacturing.

Quick Detail:

  • Operating cycle: 6–14s, depending on product.
  • Repairs done in 30 minutes; tool changes in 15 minutes.
  • Punch edges require sharpening after 300k–500k strokes.
  • Die movements software-controlled.
  • Cabinets produced with one press table and tool set, lowering equipment cost.
  • Only sub-dies dismantled for maintenance.
  • One tool set supports several models; tool changeover program-controlled.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
