Specifications
Brand Name :
IDO
Model Number :
dishwasher tub top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Dishwasher tub top
Part Material :
SUS430
Mould Type :
Stage mold
Mould Size :
2100*1000*600mm
Mould Weight :
10T
Package Gross Weight :
4500.000kg
Production Application :
White Household Appliances
Metal Sheet Material :
Stainless Steel
Description

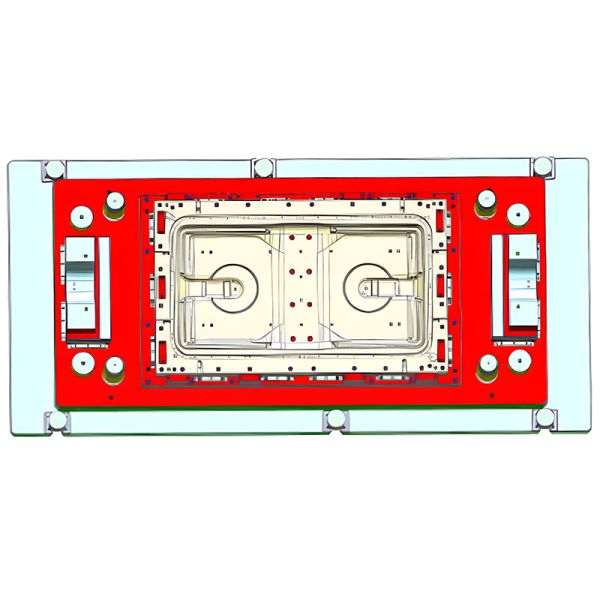

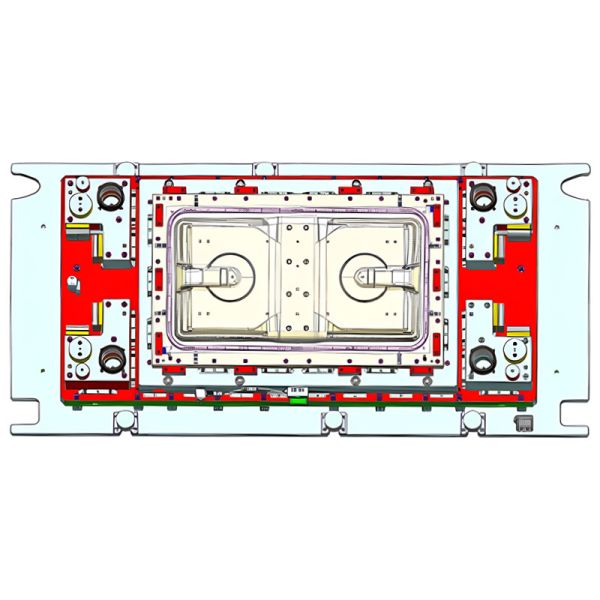

Steel Stamping Die Stage Die For Dishwasher Tub Top Mould Size 2100×1000×600mm

Description:

The Steel Stamping Die Stage Die for Dishwasher Tub Top with mould size 2100×1000×600mm is engineered for precise and efficient sheet metal forming. Made from high-quality steel, this stage die ensures accurate shaping of dishwasher tub top components, maintaining tight tolerances and reliable performance. Its large mould size supports heavy-duty production, making it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.

Quick Detail:

  • Cycle: 6–14 seconds, depending on the product.

  • Repairs finished within 30 minutes; tools replaced in 15 minutes.

  • Punch edges sharpened every 300,000–500,000 strokes.

  • Software manages die motion.

  • Cabinets are produced using only one press table and tool set, lowering equipment cost.

  • Maintenance requires removing only sub-dies.

  • A single tool set produces multiple models; program-controlled changeover.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
