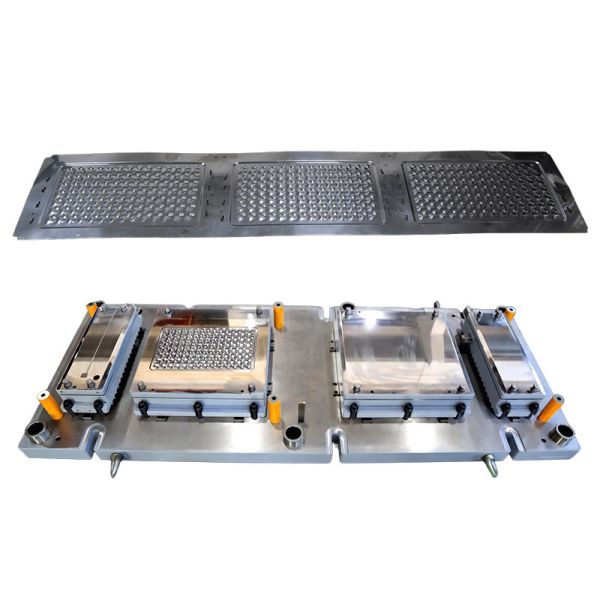

10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
10T Steel Stamping Dies SUS430 Washing Machine Drum Sheet Progressive Foil Press Dies
Specifications
Brand Name :
IDO
Model Number :
washing machine drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Part Name :
Washing machine drum sheet
Part Material :
SUS430
Mould Type :
Progressive mold
Mould Size :
2300*800*560mm
Mould Weight :
10T
Service Life :
1 Million Shots
Sheet Thickness :
0.4mm, 0.5mm, 0.6mm
Trademark :
IDO
Description

Steel Stamping Die Mould Weight 10T SUS430 Washing Machine Drum Sheet Progressive Die

Description:

The Steel Stamping Die Mould Weight 10T SUS430 Washing Machine Drum Sheet Progressive Die is engineered for precision stamping of washing machine drum sheets. Made with SUS430 stainless steel, this progressive die ensures accurate forming, stable mould performance, and efficient material utilization. With a 10T mould weight, it supports reliable and continuous production of washing machine drum sheet components, making it an ideal choice for high-volume manufacturing in the home appliance industry.

Quick Detail:

  • Cycle: 6–14 seconds per product.
  • Fast repair achievable within 30 minutes; tool change in 15 minutes.
  • Punch edges sharpen every 300k–500k shots.
  • Software handles die movement.
  • Cabinet production needs only one press table and tool set, reducing costs.
  • Only sub-dies removed for maintenance.
  • One tool set produces multiple models; changeover via software.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
