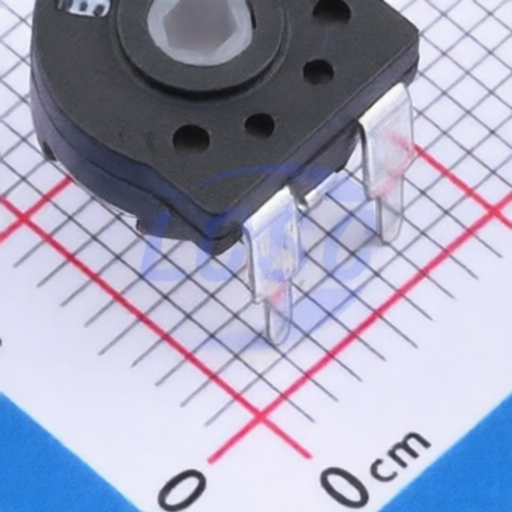

BOCHEN PT10-M-V-103 10K potentiometer featuring carbon element for performance in electronic devices
BOCHEN PT10-M-V-103 10K potentiometer featuring carbon element for performance in electronic devices
Specifications
Tolerance :
±20%
Power(Watts) :
150mW
Number of Turns :
1
Resistance :
10kΩ
Description :
10kΩ ±20% 150mW Potentiometers, Variable Resistors
Mfr. Part # :
PT10-M-V-103(10K)
Model Number :
PT10-M-V-103(10K)
Description

Product Overview

The PT10-M-V is a general-grade carbon element potentiometer designed for various electronic applications. It offers reliable performance with specifications for electrical characteristics, mechanical features, and durability. This potentiometer is suitable for voltage adjustment in electronic circuits and comes with detailed usage precautions to ensure optimal performance and longevity.

Product Attributes

  • Product Name: PT10-M-V
  • Type: General grade carbon element potentiometer (single turn)
  • Material: Primarily polycarbonate synthetic resin

Technical Specifications

ItemSpecificationDetails
ELECTRICAL CHARACTERISTICSTotal Resistance__K
Total Resistance Tolerance20%
Resistance TaperB taper
Power Rating0.15W (Linear/B taper), 0.07W (Other linear)
Max. operating Voltage250V DC (Linear/B taper), 125V DC (Other linear)
Residual ResistanceR1-2 10 ; R2-3 10
Insulation Resistance100 M at DC 100 V
MECHANICAL CHARACTERISTICSDimensionsRefer to the separate product chart
Total Rotational Angle235 10
Rotational Torque10 ~ 150 gf.cm
Shaft Stop Strength1kgf.cm min
DURABILITY CHARACTERISTICSRotational Life10,000 cycles (Resistance change within 15%, Rotational Noise 150mV)
Working Temperature-10 ~ + 70
Storage Temperature-20 ~ + 80
Soldering Heat CharacteristicAuto Soldering2605 ; time31 sec
Manual Soldering2805 ; time31 sec
Resistance Effective Stroke220 5
Rotational Noise100 mV
Withstanding Voltage1 Minute at DC 100 V

ABBREVIATION OF NOMINAL TOTAL RESISTANCE

TOTAL RESISTANCE VALUEMARKING
100101
200201
300301
500501
1K102
2K202
3K302
5K502
10K103
20K203
22K223
30K303
47K473
50K503
100K104
200K204
250K254
300K304
500K504
1M105
2M205

PRECAUTIONS

  • Use of chemicals: Avoid contact with ammonia, amines, alkali solution, aromatic hydrocarbon, ketones, esters, and halogenated hydrocarbons.
  • Use of flux: Avoid using water-soluble flux during soldering.
  • Soldering: Avoid molten solder flowing over the upper surface of PC board to prevent imperfect contacts.
  • Circuit Configuration: Recommended for voltage adjustment. If used for current adjustment, confirm under actual operating conditions.
  • Residual Resistance: Standard units have a protective anti-sulfurization film. Contact manufacturer for low residual resistance requirements.
  • Dew condensation: Avoid use in conditions where dew or water drops may occur to prevent insulation deterioration or shorting.
  • Low Temperature Operation: Customized products for comfortable operation at low temperatures are available upon request.
