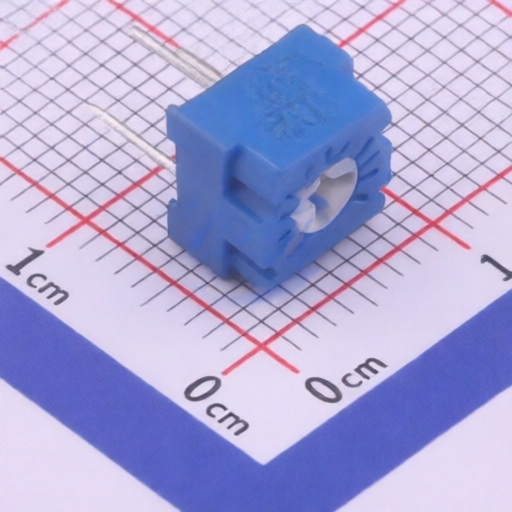

glass glaze preset potentiometer BOCHEN 3323P-1-102 designed for precise resistance control in electronic systems
glass glaze preset potentiometer BOCHEN 3323P-1-102 designed for precise resistance control in electronic systems
Specifications
Tolerance :
±10%
Temperature Coefficient :
±250ppm/℃
Power(Watts) :
500mW
Resistance :
1kΩ
Description :
±10% ±250ppm/℃ 500mW 1kΩ Through Hole Trimmer Potentiometers RoHS
Mfr. Part # :
3323P-1-102
Model Number :
3323P-1-102
Package :
Through Hole
Description

Product Overview

The BOCHEN 3323 Glass Glaze Preset Potentiometer is designed for precise resistance adjustment. It offers a wide nominal resistance range and tight tolerances, making it suitable for various electronic applications requiring reliable and stable performance.

Product Attributes

  • Brand: (BOCHEN)
  • Origin: (Chengdu Guosheng Technology Co., Ltd.)
  • Model: 3323
  • Material: Glass Glaze
  • Packaging: 50 pcs. per tube
  • Marking: Resistance tolerance (10% not marked), resistance code, product model

Technical Specifications

SpecificationValue
Nominal Resistance Range502M
Resistance Tolerance10%
Terminal Resistance5%R or 5
Contact Resistance Variation (CRV)5%R or 5
Withstand Voltage101.3kPa: 500V; 8.5kPa: 315V
Insulation Resistance (Ri)1G (100Vac)
Effective Electrical Travel21010
Rated Power (max 315V)0.5W (at 70), 0W (at 125)
Temperature Range-55~+125
Temperature Coefficient (TCR)250ppm/
Temperature Variation (R)R2%R
Temperature Variation ((Uab/Uac))(Uab/Uac)1%R
Collision Resistance390m/S, 4000 cycles, R1%R
Electrical Endurance (at 70)0.5W, 1000h, R10%R
Mechanical Endurance200 cycles, R10%R
Steady Damp-HeatR3%R, R1100M
Total Mechanical Travel25010
Starting Torque20mN.m
Clutch Torque50mN.m

2410121336_BOCHEN-3323P-1-102_C118970.pdf
