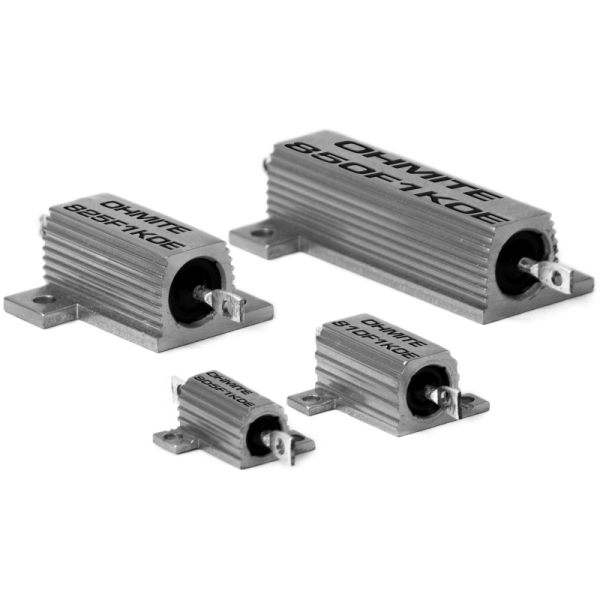

25 watt Ohmite 825FR10 axial terminal resistor featuring silicone coating and solder coated terminals for performance
25 watt Ohmite 825FR10 axial terminal resistor featuring silicone coating and solder coated terminals for performance
Specifications
Resistance :
100mΩ
Power(Watts) :
25W
Type :
Wirewound Resistor
Tolerance :
±1%
Temperature Coefficient :
±90ppm/℃
Description :
100mΩ 25W Wirewound Resistor ±1% ±90ppm/℃ Chassis Mount Resistors
Mfr. Part # :
825FR10
Model Number :
825FR10
Description

Product Overview

The 89 Series Metal-Mite is a high-performance, aluminum-housed axial terminal wirewound resistor designed for demanding applications. These resistors offer a high power-to-size ratio, excellent stability (0.5% R), and robust construction capable of withstanding vibration, shock, and harsh environmental conditions. The metal housing facilitates chassis mounting, acting as a heat sink to maintain high stability during operation.

Product Attributes

  • Brand: Ohmite
  • Series: 89 Series Metal-Mite
  • Housing Material: Anodized aluminum
  • Internal Coating: Silicone
  • Core Material: Ceramic
  • Terminals: Solder-coated axial
  • Certifications: RoHS Compliant (as of Sept 2006, no longer offered as Mil. Spec.)

Technical Specifications

SeriesWattageOhmic Value RangeToleranceNon-Inductive AvailableTemperature CoefficientDielectric Withstanding Voltage
8055W0.10-25K1%, 5%Yes (Insert 'N' before tolerance code)<1: 90 ppm/C; 1-9.99: 50 ppm/C; 10+: 20 ppm/C1000 VAC
81010W0.10-50K1%, 5%Yes (Insert 'N' before tolerance code)<1: 90 ppm/C; 1-9.99: 50 ppm/C; 10+: 20 ppm/C1000 VAC
82525W0.010-75K1%, 5%Yes (Insert 'N' before tolerance code)<1: 90 ppm/C; 1-9.99: 50 ppm/C; 10+: 20 ppm/C2250 VAC
85050W0.005-100K1%, 5%Yes (Insert 'N' before tolerance code)<1: 90 ppm/C; 1-9.99: 50 ppm/C; 10+: 20 ppm/C2250 VAC
CharacteristicSpecification
DeratingLinearly from 100% @ +25C to 0% @ +275C
Power Rating BasisChassis mounting area and temperature stability (specific chassis sizes provided for 5W, 10W, 25W, and 50W units)
Overload5 times rated wattage for 5 seconds
Dimensions (August 2015)Refer to detailed dimension table in source document (specific values vary by wattage)
Ordering InformationPart Number Format: Series Wattage Prefix - Ohmic Value Suffix Tolerance. Example: 805NF5R0E (805=5W, N=Non-Inductive, F=1%, 5R0=5.0, E=RoHS Compliant)
