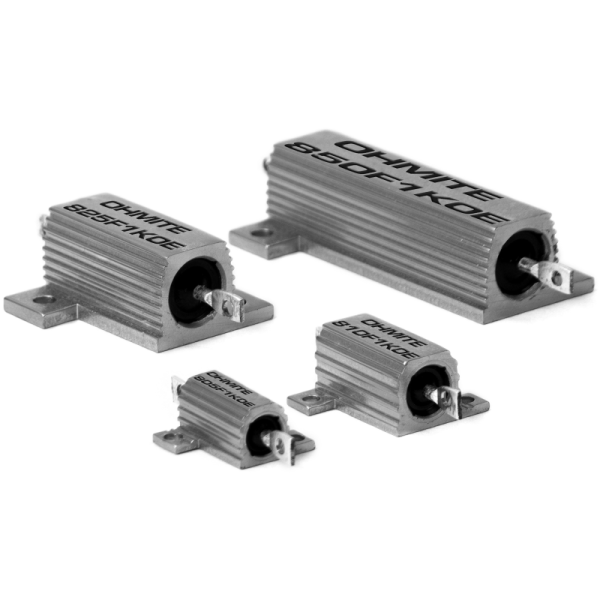

High stability Ohmite 825F500 axial terminal resistor with ceramic core and silicone internal coating
High stability Ohmite 825F500 axial terminal resistor with ceramic core and silicone internal coating
Specifications
Resistance :
500Ω
Power(Watts) :
25W
Type :
Wirewound Resistor
Tolerance :
±1%
Temperature Coefficient :
±20ppm/℃
Description :
500Ω 25W Wirewound Resistor ±1% ±20ppm/℃ Chassis Mount Resistors
Mfr. Part # :
825F500
Model Number :
825F500
Description

Product Overview

The 89 Series Metal-Mite is a high-performance, aluminum-housed axial terminal wirewound resistor designed for demanding applications. These resistors offer a high power-to-size ratio and feature a metal housing that allows for chassis mounting and provides excellent heat-sinking capabilities, ensuring high stability during operation. They are well-suited to withstanding vibration, shock, and harsh environmental conditions.

Product Attributes

  • Brand: Ohmite
  • Series: 89 Series Metal-Mite
  • Housing Material: Anodized aluminum
  • Internal Coating: Silicone
  • Core Material: Ceramic
  • Terminals: Solder-coated axial
  • Certifications: RoHS Compliant (as of September 2006, no longer offered as Mil. Spec.)

Technical Specifications

SeriesWattageOhmic Value RangeToleranceNon-Inductive OptionTemperature CoefficientDielectric Withstanding VoltageOverload Rating
8055W0.10-25K ℆±1%, ±5%Insert "N" before tolerance code (e.g., 805NF560)Under 1℆: ±90 ppm/°C
1 to 9.99℆: ±50 ppm/°C
10℆ and over: ±20 ppm/°C		1000 VAC5 times rated wattage for 5 seconds
81010W0.10-50K ℆±1%, ±5%Insert "N" before tolerance codeUnder 1℆: ±90 ppm/°C
1 to 9.99℆: ±50 ppm/°C
10℆ and over: ±20 ppm/°C		1000 VAC5 times rated wattage for 5 seconds
82525W0.010-75K ℆±1%, ±5%Insert "N" before tolerance codeUnder 1℆: ±90 ppm/°C
1 to 9.99℆: ±50 ppm/°C
10℆ and over: ±20 ppm/°C		2250 VAC5 times rated wattage for 5 seconds
85050W0.005-100K ℆±1%, ±5%Insert "N" before tolerance codeUnder 1℆: ±90 ppm/°C
1 to 9.99℆: ±50 ppm/°C
10℆ and over: ±20 ppm/°C		2250 VAC5 times rated wattage for 5 seconds

Ordering Information

Part Number Structure: 8XX[N]F/J-Ohmic Value

Series: 805 (5W), 810 (10W), 825 (25W), 850 (50W)

Non-Inductive Winding: Optional (blank = standard winding, N = Non-Inductive)

Tolerance: F = 1%, J = 5%

Ohmic Value Suffix: e.g., R005 (0.005℆), R10 (0.1℆), 1R0 (1.0℆), 250 (250℆), 1K0 (1,000℆), 1K5 (1,500℆), 25K (25,000℆)

Example: 805NF5R0E (805 Series, Non-Inductive, 5W, 5.0℆, 1% Tolerance)
