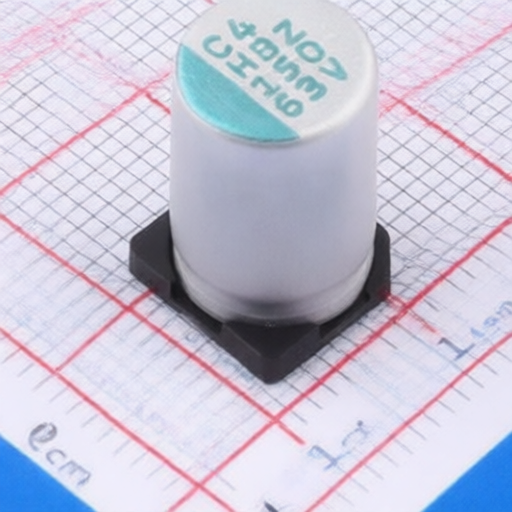

Conductive Polymer Hybrid Capacitors Featuring Low ESR and High Ripple Current Lelon HBZ151M1JTR-1016
Conductive Polymer Hybrid Capacitors Featuring Low ESR and High Ripple Current Lelon HBZ151M1JTR-1016
Specifications
Voltage Rating :
63V
Capacitance :
150uF
Lifetime :
4000hrs@125℃
Tolerance :
±20%
Height - Seated (Max) :
16.5mm
Operating Temperature :
-55℃~+125℃
Diameter :
10mm
Description :
150uF 63V Aluminum - Polymer Capacitors Surface Mount 10x16.5mm
Mfr. Part # :
HBZ151M1JTR-1016
Model Number :
HBZ151M1JTR-1016
Package :
SMD,10x16.5mm
Description

Conductive Polymer Hybrid Capacitors - HBZ Series

The HBZ Series conductive polymer hybrid capacitors are designed for high-performance applications requiring excellent reliability and stability. They offer low ESR and high ripple current capabilities, making them suitable for demanding environments. These capacitors are rated for 125 operation for 4,000 hours and are RoHS compliant and AEC-Q200 compliant.

Product Attributes

  • Brand: Not specified
  • Series: HBZ
  • Marking Color: Dark Green
  • Certifications: RoHS compliant, AEC-Q200 compliant

Technical Specifications

Category Performance Rated Voltage (V) Capacitance (F) Size (DL mm) Tan (120 Hz, 20) Leakage Current (A) ESR (m/at 100kHz, 20 max.) Ripple Current (mA/rms at 100k Hz, 125)
Performance Category Temperature Range -55 ~ +125 Capacitance Tolerance 20% (at 120 Hz, 20) Leakage Current (at 20) I = 0.01CV or 3 (A) whichever is greater (after 2 minutes) Tan (at 120 Hz, 20) See Standard Ratings
Low Temperature Characteristics Impedance Z (-25) / Z (+20) ratio 25, 35, 50, 63 N/A 1.5 N/A N/A N/A N/A
Low Temperature Characteristics Impedance Z (-55) / Z (+20) ratio 25, 35, 50, 63 N/A 2.0 N/A N/A N/A N/A
Endurance Test Time 4,000 Hrs Capacitance Change Within 30% of initial value Tan Less than 200% of specified value ESR Less than 200% of specified value
Endurance Leakage Current N/A N/A Within specified value N/A N/A N/A N/A
Shelf Life Test N/A N/A N/A N/A N/A N/A N/A N/A
Resistance to Soldering Heat Capacitance Change N/A N/A Within 10% of initial value Tan Within specified value ESR Within specified value
Resistance to Soldering Heat Leakage Current N/A N/A Within specified value N/A N/A N/A N/A
Standard Ratings 25V (1E) 28.8 470 10 12.5 0.14 117 14 3,500
Standard Ratings 25V (1E) 28.8 560 10 16.5 0.14 140 11 4,000
Standard Ratings 35V (1V) 40.3 330 10 12.5 0.12 115 14 3,500
Standard Ratings 35V (1V) 40.3 470 10 16.5 0.12 164 11 4,000
Standard Ratings 50V (1H) 57.5 150 10 12.5 0.10 75.0 17 3,200
Standard Ratings 50V (1H) 57.5 220 10 16.5 0.10 110 13 3,700
Standard Ratings 63V (1J) 72.5 100 10 12.5 0.08 63.0 19 3,000
Standard Ratings 63V (1J) 72.5 150 10 16.5 0.08 94.5 15 3,500
Ripple Current and Frequency Multipliers Frequency (Hz) 120 f < 1k Multiplier 0.1 1k f < 10k 0.3 10k f < 100k 0.6
Ripple Current and Frequency Multipliers Frequency (Hz) 100k f < 500k Multiplier 1.0 N/A N/A N/A N/A

Diagram of Dimensions

Unit: mm

D L A B C W P
10 12.5 0.5 10.3 10.3 11.0 0.7 ~ 1.3 4.7
10 16.5 0.5 10.3 10.3 11.0 1.0 ~ 1.4 4.7

The diagram is marking " ( ) " for reference dimension.

Part Numbering System Example

HBZ Series 470F 20% 25V Carrier Tape 1012.5L General Purpose

HBZ 471 M 1E TR - 1013

  • Series Name: HBZ
  • Capacitance: 471 (470F)
  • Capacitance Tolerance: M ( 20%)
  • Rated Voltage: 1E (25V)
  • Package Type: TR (Carrier Tape)
  • Terminal Type: Not specified
  • Case Size: 1013 (1012.5L)
  • Application: General Purpose

Note: For more details, please refer to Part Numbering System on page 87.
