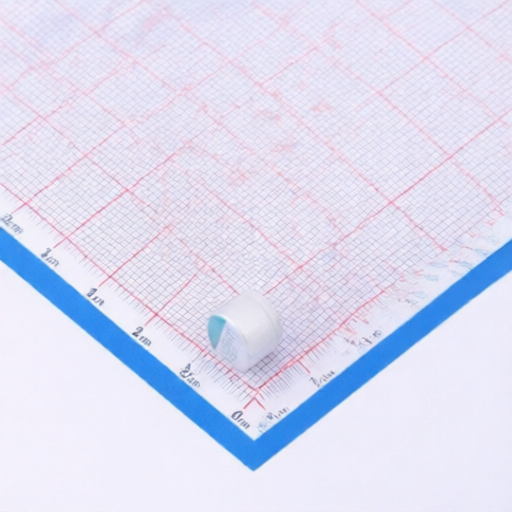

conductive polymer hybrid capacitors Lelon HBR331M1EBK-1010 with high ripple current and RoHS compliance
conductive polymer hybrid capacitors Lelon HBR331M1EBK-1010 with high ripple current and RoHS compliance
Specifications
Voltage Rating :
25V
Capacitance :
330uF
Lifetime :
10000hrs@105℃
Tolerance :
±20%
Height - Seated (Max) :
10mm
Operating Temperature :
-55℃~+105℃
Diameter :
10mm
Description :
330uF Aluminum - Polymer Capacitors Through Hole D10xL10mm
Mfr. Part # :
HBR331M1EBK-1010
Model Number :
HBR331M1EBK-1010
Package :
Through Hole,D10xL10mm
Description

Conductive Polymer Hybrid Capacitors

The HBR Series offers high performance conductive polymer hybrid capacitors designed for demanding applications. Key features include 105 operation with 10,000 hours assured life, low ESR, and high ripple current capability. These capacitors are RoHS compliant.

Product Attributes

  • Marking Color: Dark Green
  • Certifications: RoHS compliant

Technical Specifications

SeriesRated Voltage (V)Capacitance (F)Size DL(mm)Tan (120 Hz, 20)ESR (m/at 100kHz, 20 max.)Rated R. C. (mA/rms at 100k Hz, 105)Leakage Current (A)
HBR16826.3 60.1613.115050
HBR161506.3 80.1618.415050
HBR162708 100.1624.015050
HBR1647010 100.1643.215050
HBR25476.3 60.1411.815050
HBR25566.3 60.1414.015050
HBR25686.3 80.1417.015050
HBR251006.3 80.1428.815050
HBR251508 100.1437.515050
HBR252208 100.1455.015050
HBR2533010 100.1482.515050
HBR2533010 120.1482.515050
HBR35336.3 60.1211.615060
HBR35476.3 60.1216.515060
HBR35686.3 80.1223.815060
HBR351008 100.1235.015060
HBR351508 100.1252.515060
HBR3522010 100.1277.015060
HBR3527010 100.1294.515060
HBR50226.3 60.1011.015080
HBR50336.3 80.1016.515080
HBR50478 100.1023.515080
HBR50688 100.1034.015080
HBR5010010 100.1050.015080
HBR63106.3 60.086.3150120
HBR63226.3 80.0813.915080
HBR63338 100.0820.815040
HBR63478 100.0829.615056
HBR635610 100.0835.315056
HBR636810 100.0842.815056
HBR638210 100.0851.715056
HBR80228 100.0817.615045
HBR803310 100.0826.415036
HBR804710 100.0837.615036

Note: All product specifications are subject to change without notice. (Cat. 2025E3)
