Specifications
Filter Type :
DC Filter
Voltage - Input :
36V
Mounting Type :
Through Hole
Current Rating :
5mA
Description :
DC Filter Through Hole Through Hole Power Line Filter Modules RoHS
Mfr. Part # :
VFM-50-D
Model Number :
VFM-50-D
Package :
Through Hole
Description

Product Overview

The CUI VFM-50 series is a compact, high-efficiency DC power line filter designed to meet stringent industry standards for conducted and radiated emissions. With up to 98% efficiency and protection against input voltage fluctuations, it offers reliable performance in various mounting configurations including DIP, chassis, and DIN rail. This filter is ideal for applications requiring robust EMI/RFI suppression and stable DC power delivery.

Product Attributes

  • Brand: CUI
  • Certifications: IEC/EN61000-4, CISPR22/EN55022, RoHS
  • Material: Black flame-retardant heat-proof epoxy resin (UL94V-0)
  • Color: Black
  • Warranty: 2 year limited

Technical Specifications

ParameterConditions/DescriptionMinTypMaxUnits
SeriesVFM-50
Output Power50W
Input Voltage182436Vdc
Efficiencyat 24 Vdc, full load98%
Isolation Voltage+Vin to GND, -Vin to GND, at 1 minute500Vac
Leakage Current5mA
Conducted EmissionsCISPR22/EN55022, 150 kHz ~ 30 MHzclass B
Radiated EmissionsCISPR22/EN55022, 30 MHz ~ 1 GHzclass B
ESDIEC/EN61000-4-2, air ±8 kV, contact ± 6kVclass B
Radiated ImmunityIEC/EN61000-4-3, 10 V/mclass A
EFT/BurstIEC/EN61000-4-4, ±4 kV(5 kHz, 100 kHz)class B
SurgeIEC/EN61000-4-5, ±2 kV (1.2μs/50μs 2Ω>)/±4 kV (1.2 μs/50 μs 12 Ω>)class B
Conducted ImmunityIEC/EN61000-4-6, 10 Vr.m.sclass A
MTBFas per MIL-HDBK-217F, 40°C1,000,000hours
Operating Temperature-4085°C
Storage Temperature-55125°C
Storage Humiditynon-condensing595%
Solderability (Board Mount)hand soldering for 3~5 seconds350360370°C

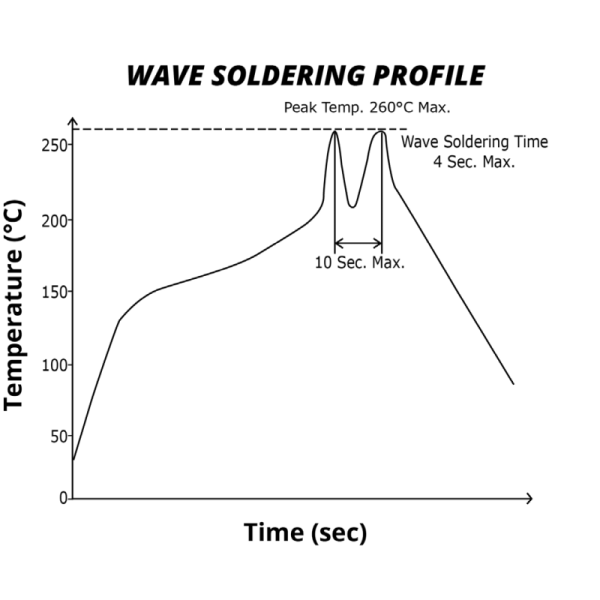

Solderability (Board Mount)wave soldering260°C
Dimensions (Board Mount)53.80 x 28.80 x 19.00mm [inch]
Dimensions (Chassis Mount)76.00 x 31.50 x 27.80mm [inch]
Dimensions (DIN-Rail Mount)76.00 x 31.50 x 32.40mm [inch]
Weight (Board Mount)50g
Weight (Chassis Mount)70g
Weight (DIN-Rail Mount)90g

2411192355_CUI-VFM-50-D_C7410262.pdf
