Specifications
Filter Type :
DC Filter
Voltage - Input :
75V
Mounting Type :
Through Hole
Current Rating :
5mA
Description :
DC Filter Through Hole Through Hole Power Line Filter Modules RoHS
Mfr. Part # :
VFM-70-D
Model Number :
VFM-70-D
Package :
Through Hole
Description

Product Overview

The CUI VFM-70 series is a high-efficiency DC power line filter designed to meet stringent EMC standards. It offers protection against input voltage fluctuations and features a soft-start function. Available in DIP, Chassis, and DIN Rail mounting versions, this filter is ideal for applications requiring reliable power conditioning and electromagnetic interference suppression.

Product Attributes

  • Brand: CUI
  • Series: VFM-70
  • Certifications: IEC/EN61000-4 standard, CISPR22/EN55022 compliant
  • Mounting Options: DIP, Chassis, DIN Rail
  • Material: Black flame-retardant heat-proof epoxy resin (UL94V-0) for case
  • Warranty: 2 year limited warranty

Technical Specifications

ParameterConditions/DescriptionMinTypMaxUnits
Input Voltage364875Vdc
Output Powerat 48 Vdc75W
No Load Input Currentat 48 Vdc5mA
Efficiencyat 48 Vdc, full load9798%
Isolation Voltage+Vin to GND, -Vin to GND, at 1 minute and leakage current 5 mA max500Vac
Conducted EmissionsCISPR22/EN55022, 150 kHz ~ 30 MHzClass B
Radiated EmissionsCISPR22/EN55022, 30 MHz ~ 1 GHzClass B
ESDIEC/EN61000-4-2, air ±8 kV, contact ±6 kVClass B
Radiated ImmunityIEC/EN61000-4-3, 10 V/mClass A
EFT/BurstIEC/EN61000-4-4, ±4 kV (5 kHz, 100 kHz)Class B
SurgeIEC/EN61000-4-5, ±2 kV (1.2µs/50µs 2“) / ±4 kV (1.2 µs/50 µs 12 “)Class B
Conducted ImmunityIEC/EN61000-4-6, 10 Vr.m.sClass A
MTBFas per MIL-HDBK-217F, 40°C1,000,000hours
RoHSyes
Operating Temperature-4085°C
Storage Temperature-55125°C
Storage Humiditynon-condensing595%
Solderability (Board Mount)hand soldering for 3~5 seconds350360370°C
Solderability (Board Mount)wave soldering260°C
Dimensions (Board Mount)53.8019.00mm [inch]
Dimensions (Chassis Mount)76.0027.80mm [inch]

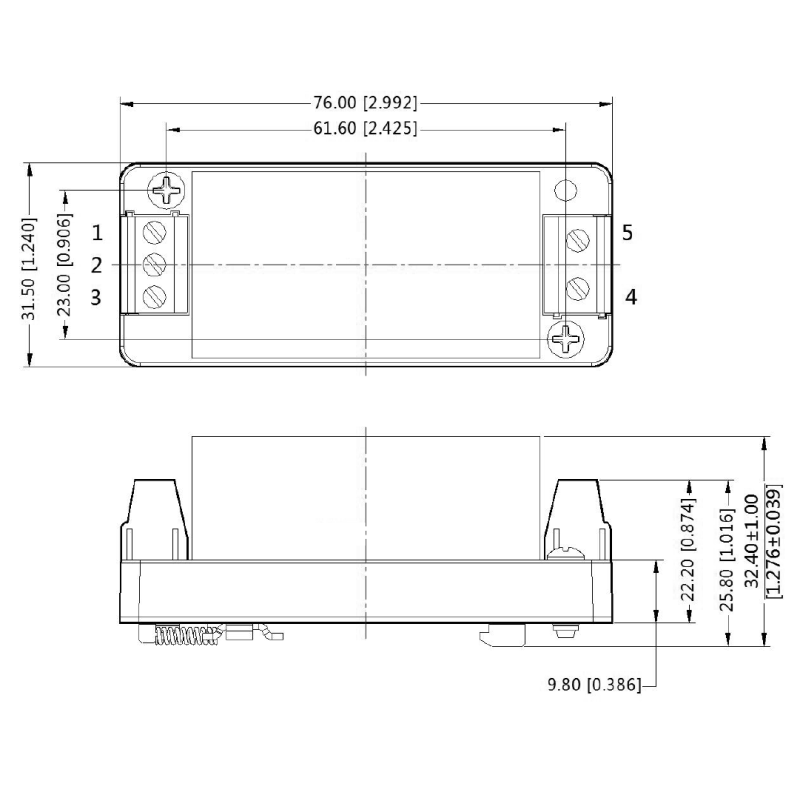

Dimensions (DIN-Rail Mount)76.0032.40mm [inch]
Weight (Board Mount)50g
Weight (Chassis Mount)70g
Weight (DIN-Rail Mount)90g
