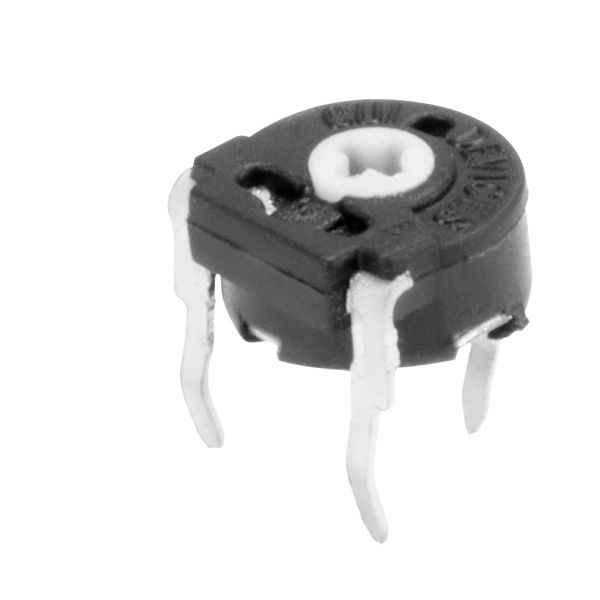

Rotary potentiometer dust proof enclosure carbon element CUI PTN06-B20CC20 with multiple taper options
Rotary potentiometer dust proof enclosure carbon element CUI PTN06-B20CC20 with multiple taper options
Specifications
Tolerance :
±20%
Power(Watts) :
150mW
Number of Turns :
1
Resistance :
20kΩ
Description :
20kΩ ±20% 150mW Potentiometers, Variable Resistors
Mfr. Part # :
PTN06-B20CC20
Model Number :
PTN06-B20CC20
Description

Product Overview

The CUI Devices PTN06 series rotary potentiometers feature a 6mm carbon element in a dust-proof enclosure, offering multiple rotor options and linear, logarithmic, and reverse logarithmic tapers. These potentiometers are designed for applications requiring precise rotational control and variable resistance.

Product Attributes

  • Brand: CUI Devices
  • Element: Carbon
  • Enclosure: Dust proof
  • Certifications: RoHS

Technical Specifications

ParameterConditions/DescriptionMinTypMaxUnits
Maximum Operating Voltage200Vdc
Power Ratingat 70C0.15W
TaperLinear, Logarithmic, and Reverse Logarithmic
Standard Resistance RangeSee Resistance Table1.02,000k
Standard Resistance Tolerance10% or 20%
Residual Resistance10
Sliding Noise68mV
Operating Temperature-1070C
Hand Solderingfor 3 seconds max350C
Wave Solderingfor 51 seconds255260265C
Mechanical Angle225235245
Rotational Torque1080gf-cm
Stop Strength400gf-cm
Rotational Life10,000cycles
Weight0.180.1850.19g

2411200030_CUI-PTN06-B20CC20_C20182135.pdf
