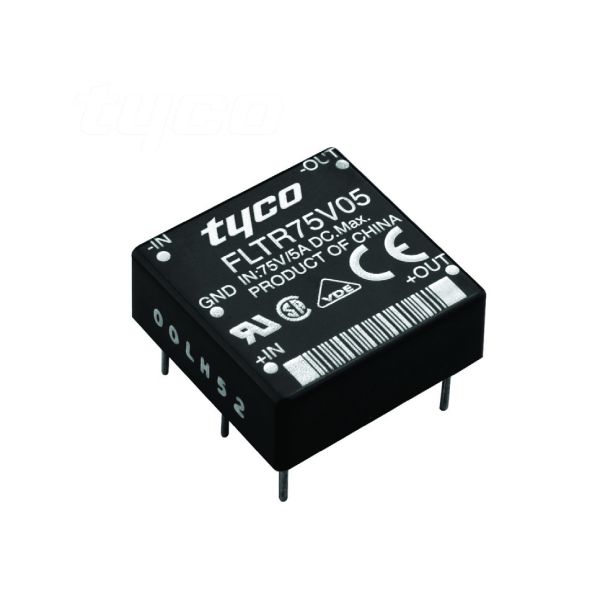

Compact EMI Filter ABB FLTR75V05Z for PCB Mounting in High Frequency DC DC Power Module Applications
Compact EMI Filter ABB FLTR75V05Z for PCB Mounting in High Frequency DC DC Power Module Applications
Compact EMI Filter ABB FLTR75V05Z for PCB Mounting in High Frequency DC DC Power Module Applications
Compact EMI Filter ABB FLTR75V05Z for PCB Mounting in High Frequency DC DC Power Module Applications
Specifications
Filter Type :
Single-Phase Filter
Voltage - Input :
75V
Mounting Type :
Through Hole
Current Rating :
5A
Description :
Single-Phase Filter Through Hole Through Hole Power Line Filter Modules RoHS
Mfr. Part # :
FLTR75V05Z
Model Number :
FLTR75V05Z
Package :
Through Hole
Description

Product Overview

The FLTR75V05 Filter Module is designed to effectively reduce conducted common-mode and differential-mode noise on the input or output lines of high-frequency switching power supplies. It is optimized for use with high-frequency switching DC-DC power modules and offers high insertion loss across the frequency ranges regulated by the FCC and CISPR. This compact, PCB-mountable module is compatible with RoHS EU Directive 2002/95/EC and can be used in lead-free or SnPb reflow environments. Ideal for distributed power architectures, telecom, and datacom applications, the FLTR75V05 helps meet stringent international EMI requirements by filtering noise conducted onto power lines.

Product Attributes

  • Brand: Lineage Power
  • Certifications: RoHS Compliant (EU Directive 2002/95/EC)
  • Mounting: Printed-circuit board mountable
  • Environment Compatibility: Pb-free or SnPb reflow

Technical Specifications

Parameter Symbol Min Typ Max Unit
Input Voltage: Continuous VI 75 Vdc
Input Voltage: Transient (100 ms) VI, trans 100 Vdc
Voltage from GND to Either Input Lead 1500 Vdc
Operating Case Temperature TC 40 100 C
Storage Temperature Tstg 55 125 C
Resistance per Leg R 20 m
Maximum Average Current (TA = 60 C, 2.03 m/s (400 lfm) air) Imax 5 A
Maximum Average Current (TA = 60 C, natural convection) Imax 3.3 A
Common-mode Insertion Loss (50 circuit, 500 kHz) 28 dB
Differential-mode Insertion Loss (50 circuit, 500 kHz) 25 dB
Dimensions (L x W x H) 25.4 x 25.4 x 10.2 (1.0 x 1.0 x 0.4) mm (in.)

Available Options

Option Code Device Code Suffix Description
Z (No Suffix) RoHS Compliant
8 8Z Short pins: 3.68 mm (+0.38 mm/ 0.25 mm) (0.145 in. (+0.015 in./ 0.010 in.))
6 6Z Short pins: 2.79 mm (+0.38 mm/ 0.25 mm) (0.110 in. (+0.015 in./ 0.010 in.))
5 5Z Short pins: 4.57 mm (+0.38 mm/ 0.25 mm) (0.180 in. (+0.015 in./ 0.010 in.))

2411220716_ABB-FLTR75V05Z_C6947286.pdf
