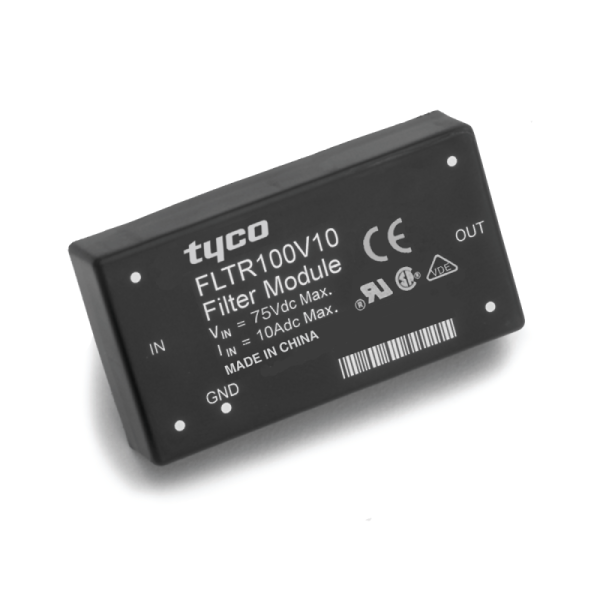

FLTR100V10 Filter Module

Product Overview

The FLTR100V10 Filter Module is designed to reduce conducted common-mode and differential-mode noise on the input or output lines of high-frequency switching power supplies. Encapsulated in a small, nonconductive plastic case, this module is optimized for use with high-frequency DC-to-DC power modules and is suitable for PC board mounting. It offers significant insertion loss across the frequency ranges regulated by the FCC and CISPR, making it ideal for computer applications and communications equipment. The module is RoHS compliant and compatible with both lead-free and SnPb reflow environments.

Product Attributes

  • Brand: Lineage Power
  • Model: FLTR100V10
  • Certifications: UL* 60950 Recognized, CSA C22.2 No. 60950-00 Certified; VDE 0805 (IEC60950) Licensed
  • Compliance: RoHS EU Directive 2002/95/EC, CE mark meets 73/23/EEC and 93/68/EEC directives
  • Case Material: Nonconductive plastic

Technical Specifications

Specification Value Unit
Input Voltage (Maximum Continuous) 75 Vdc
Input Voltage (Maximum Transient, 100 ms) 100 Vdc
Maximum Current 10 A
Dimensions (L x W x H) 51 x 28 x 12 mm (2.0 x 1.1 x 0.46 in.)
Operating Case Temperature Range -40 to 100 C
Storage Temperature -55 to 125 C
Resistance per Leg - 14 m (Max)
Maximum Average Current (TA = 60 C, 2.03 m/s air) - 10 A
Maximum Average Current (TA = 60 C, natural convection) - 6.5 A
Common-mode Insertion Loss (50 circuit, 500 kHz) - 36 dB (Typical)
Differential-mode Insertion Loss (50 circuit, 500 kHz) - 44 dB (Typical)
Pin Options Short pin: 2.8 mm (0.110 in.)
Pin Options Short pin: 3.7 mm (0.145 in.)
Pin Options Short pin: 4.6 mm (0.180 in.)
