Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Motor Run Capacitor KEMET C276CCB5125AF0J Metallized Polypropylene Film with Self Healing Properties
Specifications
Capacitance :
12.5uF
Operating Temperature :
-25℃~+85℃
Tolerance :
±5%
Voltage Rating :
470V
Description :
12.5uF -25℃~+85℃ ±5% 470V Motor Start, Motor Run Capacitors (AC) RoHS
Mfr. Part # :
C276CCB5125AF0J
Model Number :
C276CCB5125AF0J
Description

KEMET C27 Motor Run Capacitors

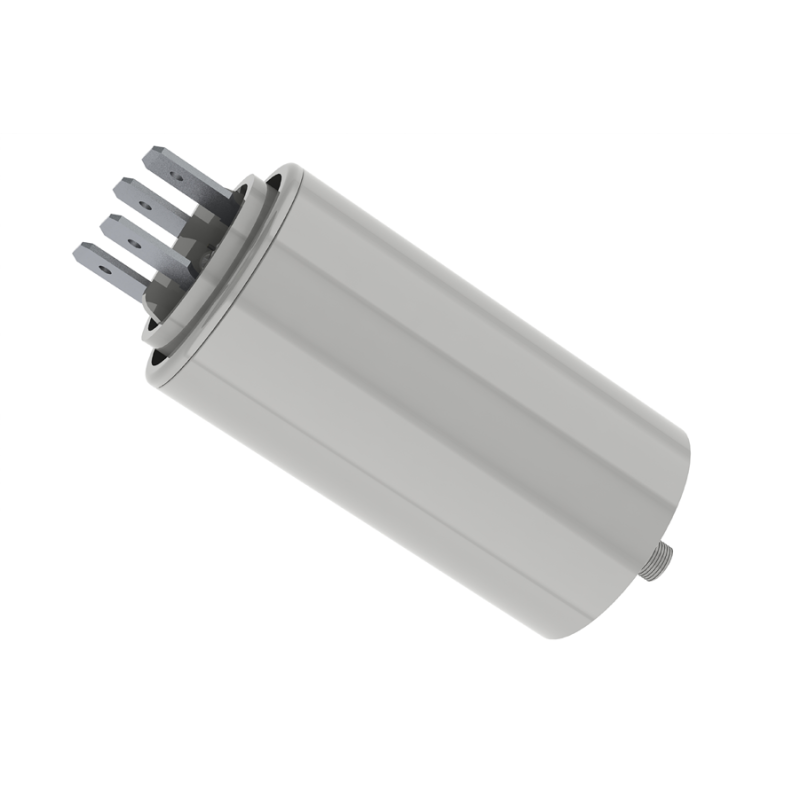

The KEMET C27 is a cylindrical, plastic can-type metallized polypropylene film capacitor designed for motor run applications. It features self-healing properties, IMQ and UL810 approval (construction only), and is rated for 50 Hz and 60 Hz frequencies. Offering high capacitance density, it is suitable for safety class S0 motor run applications. Terminals are available as faston, plastic deck, or cable.

Product Attributes

  • Brand: KEMET
  • Origin: USA
  • Material: Metallized Polypropylene Film, Plastic Can (Polypropylene with self-extinguishing features V2 (UL 94)), Noryl (for diameters > 50 mm), Nylon PA66 (for Disk Faston execution V0), PC-A (for Cable execution V0), Noryl PPO (for diameters > 40 mm cable execution VI)
  • Filling Resin: Polyurethane
  • Dielectric: Polypropylene Plates
  • Certifications: IMQ and UL810 approved (construction only)

Technical Specifications

Series Capacitance (F) Rated Voltage (VAC) dV/dt (V/s) Termination Dimensions (D x H) (mm) Part Number
C274 1 470 20 Single faston 25 x 56.5 C274AC24100AA0J
C274 1.25 470 20 Single faston 25 x 58 C274AC24125AA0J
C274 1.5 470 20 Single faston 25 x 58 C274AC24150AA0J
C274 2 470 20 Single faston 25 x 58 C274AC24200AA0J
C274 2.5 470 20 Single faston 25 x 58 C274AC24250AA0J
C274 3 470 20 Single faston 25 x 58 C274AC24300AA0J
C274 4 470 20 Single faston 30 x 56.5 C274AC24400AA0J
C274 5 470 20 Single faston 30 x 56.5 C274AC24500AA0J
C274 6 470 20 Single faston 35 x 56.5 C274AC24600AA0J
C274 6.3 470 20 Single faston 35 x 56.5 C274AC24630AA0J
C274 7 470 20 Single faston 35 x 56.5 C274AC24700AA0J
C274 7.5 470 20 Single faston 35 x 56.5 C274AC24750AA0J
C274 8 470 20 Single faston 35 x 56.5 C274AC24800AA0J
C274 10 470 20 Single faston 35 x 73.5 C274AC25100AA0J
C274 12 470 20 Single faston 35 x 73.5 C274AC25120AA0J
C274 12.5 470 20 Single faston 35 x 73.5 C274AC25125AA0J
C274 16 470 20 Single faston 40 x 73.5 C274AC25160AA0J
C274 25 470 20 Single faston 45 x 93 C274AC25250AA0J
C274 30 470 20 Single faston 45 x 93 C274AC25300AA0J
C274 31.5 470 20 Single faston 45 x 93 C274AC25315AA0J
C274 1 470 20 Double faston 25 x 56.5 C274AC34100AA0J
C274 1.5 470 20 Double faston 25 x 58 C274AC34150AA0J
C274 2 470 20 Double faston 25 x 58 C274AC34200AA0J
C274 2.5 470 20 Double faston 25 x 56.5 C274AC34250AA0J
C274 3 470 20 Double faston 25 x 58 C274AC34300AA0J
C274 4 470 20 Double faston 30 x 56.5 C274AC34400AA0J
C274 5 470 20 Double faston 30 x 56.5 C274AC34500AA0J
C274 6 470 20 Double faston 35 x 56.5 C274AC34600AA0J
C274 6.3 470 20 Double faston 35 x 56.5 C274AC34630AA0J
C274 7 470 20 Double faston 35 x 56.5 C274AC34700AA0J
C274 7.5 470 20 Double faston 35 x 56.5 C274AC34750AA0J
C274 8 470 20 Double faston 35 x 56.5 C274AC34800AA0J
C274 9 470 20 Double faston 35 x 73.5 C274AC34900AA0J
C274 10 470 20 Double faston 35 x 73.5 C274AC35100AA0J
C274 11 470 20 Double faston 35 x 73.5 C274AC35110AA0J
C274 12 470 20 Double faston 35 x 73.5 C274AC35120AA0J
C274 12.5 470 20 Double faston 35 x 73.5 C274AC35125AA0J
C274 14 470 20 Double faston 40 x 73.5 C274AC35140AA0J
C274 15 470 20 Double faston 40 x 73.5 C274AC35150AA0J
C274 16 470 20 Double faston 40 x 73.5 C274AC35160AA0J
C274 18 470 20 Double faston 45 x 74 C274AC35180AA0J
C274 20 470 20 Double faston 45 x 74 C274AC35200AA0J
C274 25 470 20 Double faston 45 x 93 C274AC35250AA0J
C274 30 470 20 Double faston 45 x 93 C274AC35300AA0J
C274 35 470 20 Double faston 50 x 95 C274AC35350AA0J
C274 40 470 20 Double faston 50 x 120 C274AC35400AA0J
C274 50 470 20 Double faston 50 x 120 C274AC35500AA0J
C274 55 470 20 Double faston 55 x 120 C274AC35550AA0J
C274 60 470 20 Double faston 55 x 121 C274AC35600AA0J
C274 1 470 20 Unipolar flexible cable (tinned end) 25 x 55 C274ACA4100AL0J
C274 1.5 470 20 Unipolar flexible cable (tinned end) 25 x 55 C274ACA4150AL0J
C274 2 470 20 Unipolar flexible cable (tinned end) 25 x 55 C274ACA4200AL0J
C274 2.5 470 20 Unipolar flexible cable (tinned end) 25 x 55 C274ACA4250AL0J
C274 3 470 20 Unipolar flexible cable (tinned end) 25 x 55 C274ACA4300AL0J
C274 4 470 20 Unipolar flexible cable (tinned end) 30 x 55 C274ACA4400AL0J
C274 5 470 20 Unipolar flexible cable (tinned end) 30 x 55 C274ACA4500AL0J
C274 6 470 20 Unipolar flexible cable (tinned end) 35 x 55 C274ACA4600AL0J
C274 1 470 20 Unsheathed bipolar cable (tinned end) 25 x 58.5 C274ACF4100LF0J
C274 1.5 470 20 Unsheathed bipolar cable (tinned end) 25 x 58.5 C274ACF4150LF0J
C274 2 470 20 Unsheathed bipolar cable (tinned end) 25 x 58.5 C274ACF4200LF0J
C274 2.5 470 20 Unsheathed bipolar cable (tinned end) 25 x 58.5 C274ACF4250LF0J
C274 3 470 20 Unsheathed bipolar cable (tinned end) 25 x 58.5 C274ACF4300LF0J
C274 4 470 20 Unsheathed bipolar cable (tinned end) 30 x 58.5 C274ACF4400LF0J
C274 5 470 20 Unsheathed bipolar cable (tinned end) 30 x 58.5 C274ACF4500LF0J
C274 6 470 20 Unsheathed bipolar cable (tinned end) 35 x 58.5 C274ACF4600LF0J
C274 8 470 20 Unsheathed bipolar cable (tinned end) 35 x 58.5 C274ACF4800LF0J
C274 10 470 20 Unsheathed bipolar cable (tinned end) 35 x 71.5 C274ACF5100LF0J
C274 12 470 20 Unsheathed bipolar cable (tinned end) 35 x 71.5 C274ACF5120LF0J
C274 15 470 20 Unsheathed bipolar cable (tinned end) 40 x 71.5 C274ACF5150LF0J
C274 20 470 20 Unsheathed bipolar cable (tinned end) 45 x 71.5 C274ACF5200LF0J
C274 30 470 20 Unsheathed bipolar cable (tinned end) 45 x 93 C274ACF5300LF0J
C274 35 470 20 Unsheathed bipolar cable (tinned end) 50 x 93 C274ACF5350LF0J
C274 40 470 20 Unsheathed bipolar cable (tinned end) 50 x 120 C274ACF5400LF0J
C276 1.5 470 15 Single faston 25 x 58 C276CC24150AA0J
C276 2 470 15 Single faston 25 x 58 C276CC24200AA0J
C276 2.5 470 15 Single faston 25 x 58 C276CC24250AA0J
C276 3 470 15 Single faston 25 x 58 C276CC24300AA0J
C276 3.15 470 15 Single faston 25 x 58 C276CC24315AA0J
C276 4 470 15 Single faston 25 x 58 C276CC24400AA0J
