SMD Conductive Polymer Tantalum Capacitors Xiangyee CA55B010K107TA for Color TV and PC Electronics
SMD Conductive Polymer Tantalum Capacitors Xiangyee CA55B010K107TA for Color TV and PC Electronics
SMD Conductive Polymer Tantalum Capacitors Xiangyee CA55B010K107TA for Color TV and PC Electronics
SMD Conductive Polymer Tantalum Capacitors Xiangyee CA55B010K107TA for Color TV and PC Electronics
Specifications
Capacitance :
100uF
Voltage Rating :
10V
Equivalent Series Resistance(ESR) :
300mΩ
Operating Temperature :
-55℃~+125℃
Tolerance :
±20%
Description :
100000000pF ±20% 10V Tantalum Capacitors 1210
Mfr. Part # :
CA55B010K107TA
Model Number :
CA55B010K107TA
Package :
1210
Description

Product Overview

The NextGen Components CA55 Series SMD Conductive Polymer Tantalum Capacitors, specifically the CA55B010K107TA model, are designed for surface mount applications in consumer electronic equipment. These capacitors offer a wide operating temperature range (-55C to +125C), small volume, high stability, low ESR, and good frequency characteristics. Key applications include color TV sets, PCs, mobile telephones, pickup cameras, and radar systems. They are RoHS III compliant.

Product Attributes

  • Brand: NextGen Components, Inc.
  • Series: CA55 Series
  • Type: SMD Conductive Polymer Tantalum Capacitors
  • Compliance: RoHS/RoHS III compliant
  • Package: Tape/Reel

Technical Specifications

Part Code Series Code Case Size Code EIA Code Dimensions (L*W*H mm) Rated Voltage (Vdc) Capacitance (F) Tolerance (%) ESR (m Max.) Operating Temp. Range (C) Package Quantity (pcs/Reel)
CA55B010K107TA CA55 B 3528-21 3.50*2.80*2.10 10 100 20% 300 -55 ~ +125 2000

Detailed Electrical Characteristics

Item Unit Symbol Characteristic Condition Value
Operating Temperature Range C -55~+125
Rated Voltage V DC 10
Capacitance Tolerance % @25, 100Hz 20%
Leakage Current A I 0 @25 , Measured after 5 Minutes Application of rated voltage I 0 0.01 CRUR or 100A Max. whichever is greater
Nominal Capacitance F C R @25, 100Hz 100
Dissipation Factor % tg 10.0 Max.
ESR m @25, 100KHz 300 Max.

Temperature Characteristics

Item Unit -55 C +85 C +125 C
Dissipation Factor (tg Max) % 9 9 12
Capacitance change % 10 10 12
Leakage Current (I Max.) A 8*I 0 10* I 0 150% of the specified value

Load Life

Item Condition Specification
Failure Rate Level Under the normal load of 1000 hours Less than 100 ppm

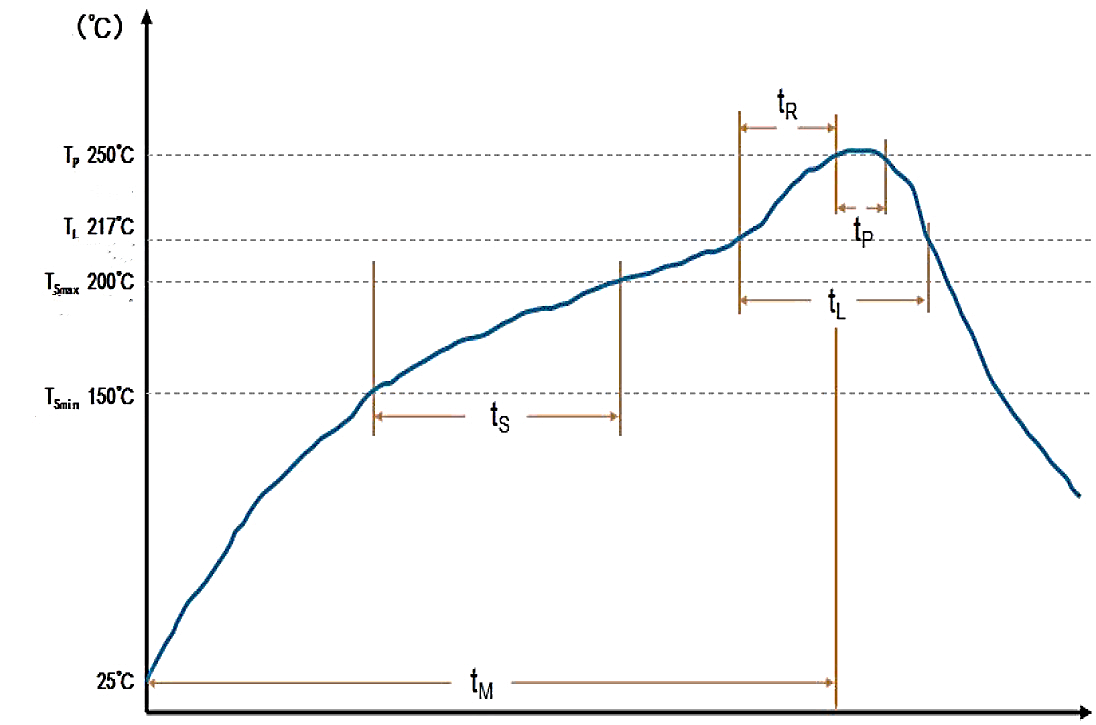

Soldering Profile Conditions (Pb-Free Assemble)

Item Unit Min. Max. Condition
Preheat Temperature C 150 200
Preheat time Second 60 120
Ramp-up Rate (C/Second) 3 T L to T p
Liquidous Temperature C 217
Time Above Liquidous Second 60 150
Peak Temperature C 245 250
Time within 5C Max. Peak Temperature Second 3
Ramp-down Rate (C/Second) 6 T p to T L
Time 25C to Peak Temperature minute 6

2412091240_Xiangyee-CA55B010K107TA_C7228034.pdf
