SMD Standard Tantalum Capacitors CA45B016K225TA Industrial Grade MnO Series with 16 Vdc Rated Voltage
SMD Standard Tantalum Capacitors CA45B016K225TA Industrial Grade MnO Series with 16 Vdc Rated Voltage
Specifications
Capacitance :
2.2uF
Voltage Rating :
16V
Operating Temperature :
-55℃~+125℃
Equivalent Series Resistance(ESR) :
2.5Ω
Tolerance :
±10%
Description :
2200000pF ±10% 16V Tantalum Capacitors 1210
Mfr. Part # :
CA45B016K225TA
Model Number :
CA45B016K225TA
Package :
1210
Description

Product Overview

The NextGen Components CA45 Series SMD Standard Tantalum Capacitors are industrial-grade MnO capacitors designed for surface mount applications. Featuring a wide operating temperature range of -55C to +125C, these capacitors offer small volume, high stability, and good frequency characteristics. They are suitable for various consumer electronic equipment including color TV sets, PCs, mobile telephones, pickup cameras, and radar systems. The CA45B016K225TA model is RoHS III compliant.

Product Attributes

  • Brand: NextGen Components, Inc.
  • Series: CA45 Series
  • Material: MnO Tantalum
  • Grade: Industrial Grade
  • Compliance: RoHS III Compliant
  • Package: Tape/Reel, 2000pcs/Reel

Technical Specifications

Specification Value Condition/Notes
Part Code CA45B016K225TA
Series Code CA45 SMD Standard Tantalum Capacitors Industrial Grade MnO
Case Code B EIA 3528-21
Case Dimensions (mm) L3.60*W2.90*H2.10
Rated Voltage 16 Vdc
Capacitance 2.2F Nominal Capacitance
Capacitance Tolerance 10% @25, 100Hz
ESR (Equivalent Series Resistance) 2.5 Max. @25, 100KHz
Operating Temperature Range -55C ~ +125C
Leakage Current (I) 0.01 CRUR or 0.5A Max. (whichever is greater) @25 , Measured after 5 Minutes Application of rated voltage
Dissipation Factor (tg) 6.0% Max. @25, 100Hz
Power Dissipation (Case B) 75mW Max. @+25C
Reel Quantity 2000pcs/Reel

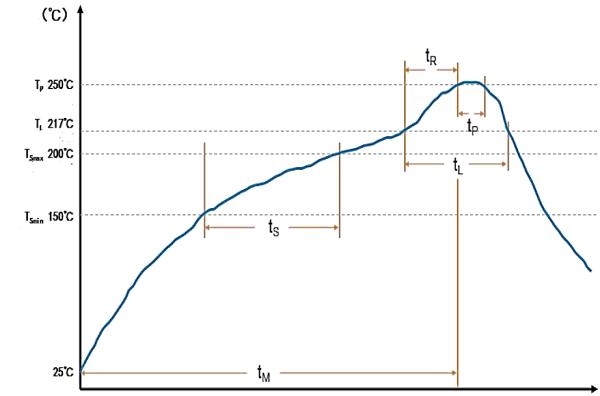

Soldering Type Reflow Soldering Not suitable for wave soldering and manual welding. Reflow temperature 250C, 5 seconds.

2412091240_Xiangyee-CA45B016K225TA_C7228014.pdf
