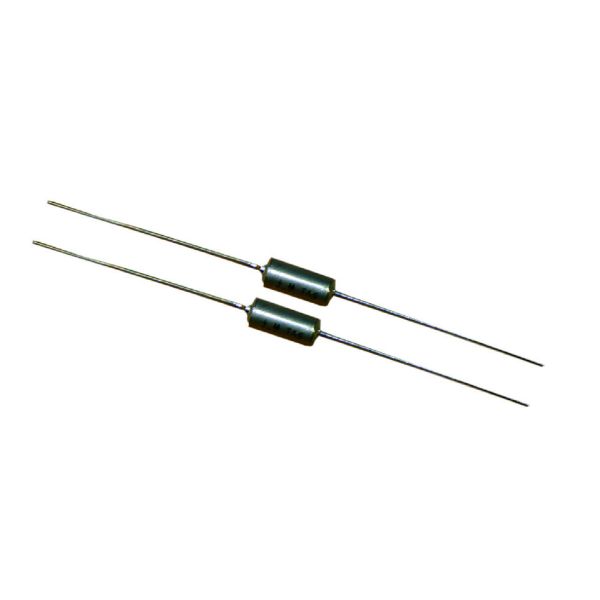

High capacitance miniature solid tantalum capacitor Cornell Dubilier Electronics TAS225K075P1C for industrial

Specifications

Capacitance :

2.2uF

Voltage Rating :

75V

Operating Temperature :

-55℃~+125℃

Tolerance :

±10%

Description :

2.2uF ±10% 75V Tantalum Capacitors

Mfr. Part # :

TAS225K075P1C

Model Number :

TAS225K075P1C

Description

Type TAS Solid Tantalum Capacitors

The CDE Cornell Dubilier Type TAS solid tantalum axial lead capacitor is designed for demanding and industrial applications. It features a rugged, hermetically sealed metal case with a polyester insulator wrap, offering excellent moisture and solvent resistance. These capacitors provide high capacitance in a miniature size, with stable performance across a wide temperature range and frequency. They are ideal for harsh environments and offer a long shelf life.

Product Attributes

Brand: CDE Cornell Dubilier
Origin: New Bedford, MA
Certifications: RoHS Compliant

Technical Specifications

Capacitance Range	Capacitance Tolerance	Rated Voltage	Operating Temperature Range	Reverse Voltage (@ 25 C)	DC Leakage (@ +25 C)	Capacitance Change (@ -55 C)	Capacitance Change (@ +85 C)	Capacitance Change (@ +125 C)	Max Power Dissipation @ 25 C (Watts)
0.0047 F to 330 F	10%, 20%	6 WVdc to 100 WVdc	55 C to +125 C (with proper derating)	15% of rated voltage	See Ratings	10%	+10%	+12%	Case Code Dependent (See table below)

Capacitor Ratings and Part Numbers

Cap (F)	Case Code	DCL @ +25 C (A)	Max DF @ 120 Hz (%)	Part Number	WVdc @ 85 C	WVdc @ 125 C
2.2	A	0.3	4	TAS225K006P1A-F	6	4
2.7	A	0.3	4	TAS275K006P1A-F	6	4
3.3	A	0.3	4	TAS335K006P1A-F	6	4
3.9	A	0.3	4	TAS395K006P1A-F	6	4
4.7	A	0.3	4	TAS475K006P1A-F	6	4
5.6	A	0.3	4	TAS565K006P1A-F	6	4
6.8	A	0.3	6	TAS685K006P1A-F	6	4
8.2	C	0.3	6	TAS825K006P1C-F	6	4
10	C	0.3	6	TAS106K006P1C-F	6	4
12	C	0.5	6	TAS126K006P1C-F	6	4
15	C	0.9	6	TAS156K006P1C-F	6	4
18	C	0.9	6	TAS186K006P1C-F	6	4
22	C	0.9	6	TAS226K006P1C-F	6	4
27	C	0.9	6	TAS276K006P1C-F	6	4
33	C	0.9	6	TAS336K006P1C-F	6	4
39	C	0.9	6	TAS396K006P1C-F	6	4
47	C	1.5	6	TAS476K006P1C-F	6	4
56	C	1.5	6	TAS566K006P1C-F	6	4
68	F	3.0	6	TAS686K006P1F-F	6	4
100	F	3.0	6	TAS107K006P1F-F	6	4
120	F	3.0	6	TAS127K006P1F-F	6	4
150	F	4.5	6	TAS157K006P1F-F	6	4
180	F	5.5	6	TAS187K006P1F-F	6	4
220	G	6.0	8	TAS227K006P1G-F	6	4
270	G	6.0	8	TAS277K006P1G-F	6	4
330	G	7.5	8	TAS337K006P1G-F	6	4
1.0	A	0.3	3	TAS105K010P1A-F	10	7
1.2	A	0.3	4	TAS125K010P1A-F	10	7
1.5	A	0.3	4	TAS155K010P1A-F	10	7
1.8	A	0.3	4	TAS185K010P1A-F	10	7
2.2	A	0.3	4	TAS225K010P1A-F	10	7
2.7	A	0.3	4	TAS275K010P1A-F	10	7
3.3	A	0.3	4	TAS335K010P1A-F	10	7
3.9	A	0.3	4	TAS395K010P1A-F	10	7
4.7	A	0.4	4	TAS475K010P1A-F	1	0	7
5.6	C	0.4	4	TAS565K010P1C-F	10	7
6.8	C	1.0	6	TAS685K010P1C-F	10	7
8.2	C	1.0	6	TAS825K010P1C-F	10	7
10	C	1.0	6	TAS106K010P1C-F	10	7
12	C	1.0	6	TAS126K010P1C-F	10	7
15	C	1.0	6	TAS156K010P1C-F	10	7
18	C	1.0	6	TAS186K010P1C-F	10	7
22	C	2.0	6	TAS226K010P1C-F	10	7
27	C	2.0	6	TAS276K010P1C-F	10	7
33	C	2.0	6	TAS336K010P1C-F	10	7
39	C	2.0	6	TAS396K010P1C-F	10	7
47	F	3.0	6	TAS476K010P1F-F	10	7
56	F	3.0	6	TAS566K010P1F-F	10	7
68	F	3.0	6	TAS686K010P1F-F	10	7
82	G	6.0	6	TAS826K010P1G-F	10	7
100	G	10.0	6	TAS107K010P1G-F	10	7
120	G	5.0	6	TAS127K010P1G-F	10	7
150	G	9.0	6	TAS157K010P1G-F	10	7
180	G	9.0	6	TAS187K010P1G-F	10	7
220	G	10.0	8	TAS227K010P1G-F	10	7
0.39	A	0.3	3	TAS394K015P1A-F	15	10
0.47	A	0.3	3	TAS474K015P1A-F	15	10
0.56	A	0.3	3	TAS564K015P1A-F	15	10
0.68	A	0.3	3	TAS684K015P1A-F	15	10
0.82	A	0.3	3	TAS824K015P1A-F	15	10
1.0	A	0.3	3	TAS105K015P1A-F	15	10
1.2	A	0.3	4	TAS125K015P1A-F	15	10
1.5	A	0.3	4	TAS155K015P1A-F	15	10
1.8	A	0.3	4	TAS185K015P1A-F	15	10
2.2	A	0.3	4	TAS225K015P1A-F	15	10
2.7	A	0.3	4	TAS275K015P1A-F	15	10
3.3	A	0.4	4	TAS335K015P1A-F	15	10
3.9	C	0.4	4	TAS395K015P1C-F	15	10
4.7	C	0.7	4	TAS475K015P1C-F	15	10
5.6	C	0.7	4	TAS565K015P1C-F	15	10
6.8	C	0.7	6	TAS685K015P1C-F	15	10
8.2	C	0.7	6	TAS825K015P1C-F	15	10
10	C	1	6	TAS106K015P1C-F	15	10
12	C	1	6	TAS126K015P1C-F	15	10
15	C	2	6	TAS156K015P1C-F	15	10
18	C	2	6	TAS186K015P1C-F	15	10
22	C	2	6	TAS226K015P1C-F	15	10
27	F	3	6	TAS276K015P1F-F	15	10
33	F	3	6	TAS336K015P1F-F	15	10
39	F	3	6	TAS396K015P1F-F	15	10
47	F	4	6	TAS476K015P1F-F	15	10
56	F	4	6	TAS566K015P1F-F	15	10
68	F	5	6	TAS686K015P1F-F	15	10
82	G	6	6	TAS826K015P1G-F	15	10
100	G	6	6	TAS107K015P1G-F	15	10
120	G	6	6	TAS127K015P1G-F	15	10
150	G	8	6	TAS157K015P1G-F	15	10
180	G	9	6	TAS187K010P1G-F	15	10
220	G	10	8	TAS227K010P1G-F	15	10
0.39	A	0.3	3	TAS394K020P1A-F	20	13
0.47	A	0.3	3	TAS474K020P1A-F	20	13
0.56	A	0.3	3	TAS564K020P1A-F	20	13
0.68	A	0.3	3	TAS684K020P1A-F	20	13
0.82	A	0.3	3	TAS824K020P1A-F	20	13
1.0	A	0.3	3	TAS105K020P1A-F	20	13
1.2	A	0.3	4	TAS125K020P1A-F	20	13
1.5	A	0.3	4	TAS155K020P1A-F	20	13
1.8	A	0.3	4	TAS185K020P1A-F	20	13
2.2	A	0.4	4	TAS225K020P1A-F	20	13
2.7	C	0.5	4	TAS275K020P1C-F	20	13
3.3	C	1.0	4	TAS335K020P1C-F	20	13
3.9	C	1.0	4	TAS395K020P1C-F	20	13
4.7	C	1.0	4	TAS475K020P1C-F	20	13
5.6	C	1.0	4	TAS565K020P1C-F	20	13
6.8	C	1.0	6	TAS685K020P1C-F	20	13
8.2	C	1.0	6	TAS825K020P1C-F	20	13
10	C	1.0	6	TAS106K020P1C-F	20	13
12	C	1.0	6	TAS126K020P1C-F	20	13
15	C	2.0	6	TAS156K020P1C-F	20	13
18	F	2.0	6	TAS186K020P1F-F	20	13
22	F	2.5	6	TAS226K020P1F-F	20	13
27	F	2.5	6	TAS276K020P1F-F	20	13
33	F	3.0	6	TAS336K020P1F-F	20	13
39	F	3.0	6	TAS396K020P1F-F	20	13
47	F	4.5	6	TAS476K020P1F-F	20	13
56	G	5.5	6	TAS566K020P1G-F	20	13
68	G	6.0	6	TAS686K020P1G-F	20	13
82	G	6.0	6	TAS826K020P1G-F	20	13
100	G	10.0	6	TAS107K020P1G-F	20	13
0.0047	A	0.1	3	TAS472K035P1A-F	35	23
0.0056	A	0.1	3	TAS562K035P1A-F	35	23
0.0068	A	0.1	3	TAS682K035P1A-F	35	23
0.0082	A	0.1	3	TAS822K035P1A-F	35	23
0.01	A	0.1	3	TAS103K035P1A-F	35	23
0.012	A	0.1	3	TAS123K035P1A-F	35	23
0.015	A	0.1	3	TAS153K035P1A-F	35	23
0.018	A	0.1	3	TAS183K035P1A-F	35	23
0.022	A	0.1	3	TAS223K035P1A-F	35	23
0.027	A	0.1	3	TAS273K035P1A-F	35	23
0.033	A	0.1	3	TAS333K035P1A-F	35	23
0.039	A	0.1	3	TAS393K035P1A-F	35	23
0.047	A	0.1	3	TAS473K035P1A-F	35	23
0.056	A	0.1	3	TAS563K035P1A-F	35	23
0.068	A	0.1	3	TAS683K035P1A-F	35	23
0.082	A	0.1	3	TAS823K035P1A-F	35	23
0.10	A	0.5	3	TAS104K035P1A-F	35	23
0.12	A	0.5	3	TAS124K035P1A-F	35	23
0.15	A	0.5	3	TAS154K035P1A-F	35	23
0.18	A	0.5	3	TAS184K035P1A-F	35	23
0.22	A	0.5	3	TAS224K035P1A-F	35	23
0.27	A	0.5	3	TAS274K035P1A-F	35	23
0.39	A	0.5	3	TAS394K035P1A-F	35	23
0.47	A	0.5	3	TAS474K035P1A-F	35	23
0.56	A	0.5	3	TAS564K035P1A-F	35	23
0.68	A	0.5	3	TAS684K035P1A-F	35	23
0.82	A	0.5	3	TAS824K035P1A-F	35	23
1.0	A	0.5	3	TAS105K035P1A-F	35	23
1.2	C	0.5	4	TAS125K035P1C-F	35	23
1.5	C	0.5	4	TAS155K035P1C-F	35	23
1.8	C	0.5	4	TAS185K035P1C-F	35	23
2.2	C	1.0	4	TAS225K035P1C-F	35	23
2.7	C	1.0	4	TAS275K035P1C-F	35	23
3.3	C	1.0	4	TAS335K035P1C-F	35	23
3.9	C	1.0	4	TAS395K035P1C-F	35	23
4.7	C	1.0	4	TAS475K035P1C-F	35	23
5.6	C	1.0	4	TAS565K035P1C-F	35	23
6.8	C	1.5	4	TAS685K035P1C-F	35	23
8.2	F	3.0	4	TAS825K035P1F-F	35	23
10	F	3.0	4	TAS106K035P1F-F	35	23
12	F	3.0	4	TAS126K035P1F-F	35	23
15	F	3.0	4	TAS156K035P1F-F	35	23
18	F	3.0	4	TAS186K035P1F-F	35	23
22	F	4.0	4	TAS226K035P1F-F	35	23
27	G	4.5	4	TAS276K035P1G-F	35	23
33	G	5.5	4	TAS336K035P1G-F	35	23
39	G	6.0	4	TAS396K035P1G-F	35	23
47	G	8.0	4	TAS476K035P1G-F	35	23
0.0047	A	0.1	2	TAS472K050P1A-F	50	33
0.0056	A	0.1	2	TAS562K050P1A-F	50	33
0.0068	A	0.1	2	TAS682K050P1A-F	50	33
0.0082	A	0.1	2	TAS822K050P1A-F	50	33
0.01	A	0.1	2	TAS103K050P1A-F	50	33
0.012	A	0.1	2	TAS123K050P1A-F	50	33
0.015	A	0.1	2	TAS153K050P1A-F	50	33
0.018	A	0.1	2	TAS183K050P1A-F	50	33
0.022	A	0.1	2	TAS223K050P1A-F	50	33
0.027	A	0.1	2	TAS273K050P1A-F	50	33
0.033	A	0.1	2	TAS333K050P1A-F	50	33
0.039	A	0.1	2	TAS393K050P1A-F	50	33
0.047	A	0.1	2	TAS473K050P1A-F	50	33
0.056	A	0.1	2	TAS563K050P1A-F	50	33
0.068	A	0.1	2	TAS683K050P1A-F	50	33
0.082	A	0.1	2	TAS823K050P1A-F	50	33
0.10	A	0.3	2	TAS104K050P1A-F	50	33
0.12	A	0.3	2	TAS124K050P1A-F	50	33
0.15	A	0.3	2	TAS154K050P1A-F	50	33
0.18	A	0.3	2	TAS184K050P1A-F	50	33
0.22	A	0.3	2	TAS224K050P1A-F	50	33
0.27	A	0.3	2	TAS274K050P1A-F	50	33
0.39	A	0.3	2	TAS394K050P1A-F	50	33
0.47	A	0.3	2	TAS474K050P1A-F	50	33
0.56	A	0.3	2	TAS564K050P1A-F	50	33
0.68	A	0.3	2	TAS684K050P1A-F	50	33
0.82	A	0.3	2	TAS824K050P1A-F	50	33
1.0	A	0.4	2	TAS105K050P1A-F	50	33
1.2	C	0.4	4	TAS125K050P1C-F	50	33
1.5	C	0.5	4	TAS155K050P1C-F	50	33
1.8	C	0.5	4	TAS185K050P1C-F	50	33
2.2	C	0.8	4	TAS225K050P1C-F	50	33
2.7	C	0.8	4	TAS275K050P1C-F	50	33
3.3	C	1.2	4	TAS335K050P1C-F	50	33
3.9	C	1.5	4	TAS395K050P1C-F	50	33
4.7	C	1.7	4	TAS475K050P1C-F	50	33
5.6	F	2.2	4	TAS565K050P1F-F	50	33
6.8	F	2.2	4	TAS685K050P1F-F	50	33
8.2	F	2.5	4	TAS825K050P1F-F	50	33
10	F	2.5	4	TAS106K050P1F-F	50	33
12	F	3.0	4	TAS126K050P1F-F	50	33
15	F	4.0	4	TAS156K050P1F-F	50	33
18	F	4.5	4	TAS186K050P1F-F	50	33
22	G	5.5	4	TAS226K050P1G-F	50	33
0.0047	A	0.3	2	TAS472K075P1A-F	75	50
0.0056	A	0.3	2	TAS562K075P1A-F	75	50
0.0068	A	0.3	2	TAS682K075P1A-F	75	50
0.0082	A	0.3	2	TAS822K075P1A-F	75	50
0.01	A	0.3	2	TAS103K075P1A-F	75	50

Dimensions

Case Code	D (in./mm)	L (in./mm)	d (in./mm)	Quantity Per Reel	Max Power Dissipation @ 25 C (Watts)
A	.125(3.18)	.250(6.35)	.020(.51)	3,500	0.090
C	.175(4.45)	.438(11.13)	.020(.51)	2,500	0.100
F	.279(7.09)	.650(16.51)	.025(.64)	500	0.125
G	.341(8.66)	.750(19.05)	.025(.64)	400	0.180

Part Numbering System

TAS - Series

Capacitance Value (e.g., 474 = 0.47 F, 105 = 1.0 F, 225 = 2.2 F)

Tolerance (K = 10%, M = 20%)

Voltage Code (e.g., 006 = 6 Vdc, 010 = 10 Vdc, 015 = 15 Vdc, 020 = 20 Vdc, 035 = 35 Vdc, 050 = 50 Vdc, 075 = 75 Vdc, 100 = 100 Vdc)

Polarity (P = Polar)

Sleeve Code (1A)

RoHS Compliant (-F)
