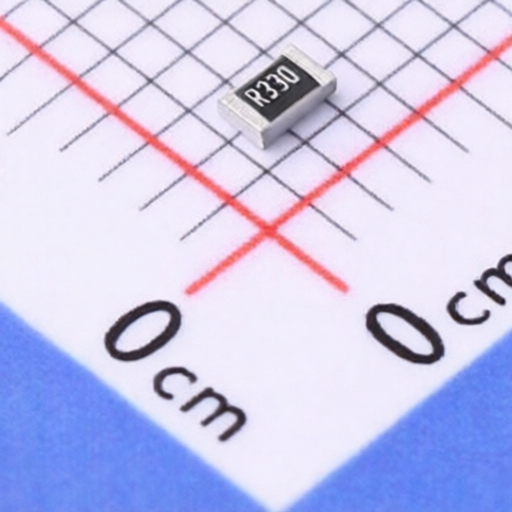

Current detecting resistors FH RBE-05MR330FT with wide resistance range and RoHS compliant features
Current detecting resistors FH RBE-05MR330FT with wide resistance range and RoHS compliant features
Specifications
Power(Watts) :
125mW
Resistance :
330mΩ
Type :
Current Sense Resistor
Temperature Coefficient :
±500ppm/℃
Tolerance :
±1%
Description :
330mΩ ±1% 125mW Current Sense Resistor
Mfr. Part # :
RBE-05MR330FT
Model Number :
RBE-05MR330FT
Package :
0805
Description

Product Description

Current detecting resistors designed for power supply, motor circuits, and various electronic applications. These resistors offer a wide resistance range from 10m to 1000m and are RoHS Compliant, including halogen-free requirements. They are suitable for applications such as LED switching power supplies, over-current protection in audio circuits, voltage regulation modules (VRMs), DC-DC converters, chargers, LED lamps, and portable devices.

Product Attributes

  • Certifications: RoHS Compliant, Halogen Free

Technical Specifications

TypeResistance RangePower RatingT.C.R. (ppm/C)Tolerance (%)Operating Temperature Range (C)Dimensions (mm)Limiting Element Current (A)
04020.001 ~ 101/16W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1551.00 x 0.50 x 0.251.98
06030.001 ~ 101/10W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1551.60 x 0.80 x 0.303.16
08050.002 ~ 201/8W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1552.00 x 1.25 x 0.403.54
12060.003 ~ 471/4W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1553.20 x 1.60 x 0.505
12100.005 ~ 1001/3W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1553.20 x 2.50 x 0.505.77
20100.003 ~ 2003/4W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1555.00 x 2.50 x 0.608.66
25120.005 ~ 2001W700, 500, 400, 1500, 1000, 8001, 2, 3, 5-55 to 1556.40 x 3.20 x 0.6010

2410121613_FH-RBE-05MR330FT_C2991535.pdf
