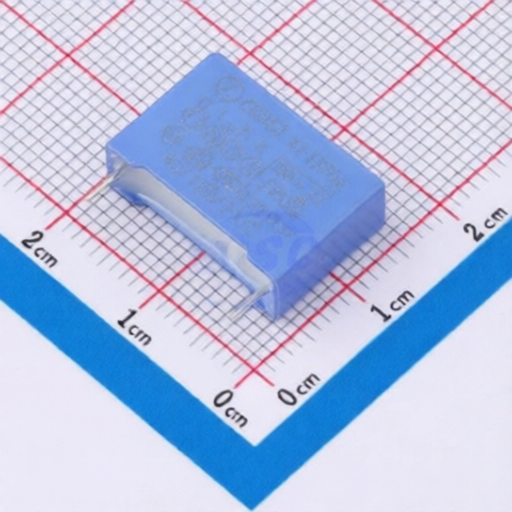

polypropylene film capacitor jiangbeizhenhua GPX104KA5Z2366BF1 with epoxy potting compound and PBT shell
polypropylene film capacitor jiangbeizhenhua GPX104KA5Z2366BF1 with epoxy potting compound and PBT shell
Specifications
Description :
Through Hole,P=15mm Film Capacitors RoHS
Mfr. Part # :
GPX104KA5Z2366BF1
Model Number :
GPX104KA5Z2366BF1
Package :
Through Hole,P=15mm
Description

Product Overview

The CBB62 X2 CAPACITOR is a 0.1FK330VAC capacitor designed for various applications. It features a polypropylene zinc-aluminum evaporated film construction with gold spraying and tin-zinc alloy terminals, utilizing tinned copper-clad steel wires. The capacitor is housed in a PBT engineering plastic shell and sealed with flame-retardant epoxy potting compound.

Product Attributes

  • Product Name: CBB62 X2 CAPACITOR
  • Product Type: 0.1FK330VAC
  • Brand: ZHENHUA ELECTRON
  • Origin: NINGBO JIANGBEI ZHENHUA ELECTRON CO., LTD.
  • Main Raw Materials: Polypropylene zinc-aluminum evaporated film, Gold spraying, Tin-zinc alloy material, Tinned copper-clad steel wire (CP wire), PBT engineering plastic, Flame-retardant epoxy potting compound
  • Certifications: CQC, US E251337

Technical Specifications

ItemSpecificationValue
Capacitance rangeCapacitance range0.001-2.2F
Capacitance toleranceCapacitance toleranceJ(5%), K(10%)
Dissipation FactorDissipation Factor0.1% at 10KHz and 25
Insulation resistanceC0.33F32000M
Insulation resistanceC > 0.33F15000M
Rated voltageRated voltage330VAC
Test voltageTest voltage1800VDC
Operating temperatureMinimum limit temperature-40
Operating temperatureMaximum limit temperature+100
Welding standardTemperature2605
Welding standardTime50.5S

2306081101_jiangbeizhenhua-GPX104KA5Z2366BF1_C7424564.pdf
