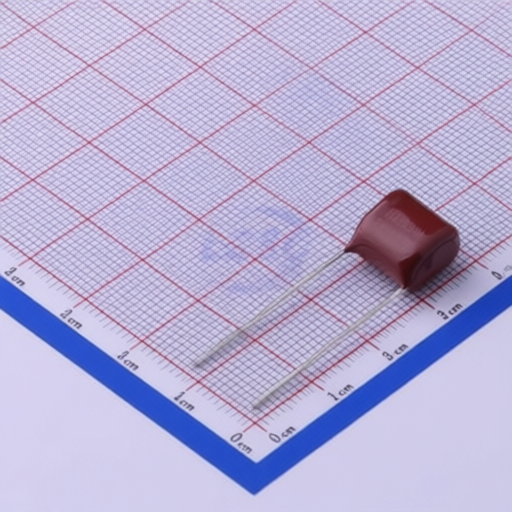

MPP capacitor Jimson MPP224J450D01 0.22uF 450VDC with epoxy resin coating and radial lead terminals
MPP capacitor Jimson MPP224J450D01 0.22uF 450VDC with epoxy resin coating and radial lead terminals
Specifications
Capacitance :
220nF
Operating Temperature :
-40℃~+85℃
Tolerance :
±5%
Voltage Rating :
450V
Description :
220nF Film Capacitor ±5% 450V Through Hole P=10mm
Mfr. Part # :
MPP224J450D01
Model Number :
MPP224J450D01
Package :
Through Hole,P=10mm
Description

Product Overview

The JIMSON ELECTRONICS (XIAMEN) CO.,LTD. MPP Capacitor, model 0.22uF J 450VDC, is designed for general resonance circuits, DC pulse, high-frequency, and low-current applications. It is particularly suitable for S-shaping correction circuits in color TV sets, offering excellent performance with a small size. Key features include high stability of capacitance and dissipation factor (DF) across temperature and frequency, low DF, high insulation resistance (IR), non-inductive construction, self-healing properties, and very small inherent temperature rise. This product complies with RoHS 2.0 environmental directives.

Product Attributes

  • Brand: JIMSON ELECTRONICS (XIAMEN) CO.,LTD.
  • Product Type: Capacitor
  • Category: MPP
  • Origin: Xiamen, China
  • Construction: Dielectric: Polypropylene film; Electrodes: Vacuum evaporated metal; Coating: Epoxy resin (fire retardant on request); Leads: Radial leads of tinned wire/insulation flexible wire; Terminal contact: Electrically welded (arc spot welding).
  • Certifications: RoHS 2.0 Compliant

Technical Specifications

Specification Description Test Conditions
Rated Capacitance 0.22uF Measuring frequency: 1kHz10%; Measuring voltage: 1Vrms.max.
Capacitance Tolerance J (5%)
Rated Voltage 450VDC 1.6*UR Unit:VDC (5 S at 20)
Voltage Proof No permanent breakdown or flashover
Dissipation Factor (tan ) 0.1% at 20, 1KHz (Measuring frequency: 1kHz10%; Measuring voltage: 1Vrms.max.)
Insulation Resistance (IR) 30000M (for C0.33uF) Measured at rated voltage or less than 100VDC for 1 minute at 20 and RH65%
Endurance C/C5%; DF0.4%; IR50% of specified value 1000 hours with 125% of rated voltage at 85
Climatic Category 40/85/21
Solderability Solder should cover at least 75% of the circumference of the lead Solder bath: 2355; Bath time: 2.00.5 sec; Speed: 256 mm/sec; Depth: 1.5+0.5/-0mm from the bottom of the body
Heat Shock C/C5%, DF1.2*specified value. No visible damage after test. Solder bath: 2605; Bath time: 5.00.5 sec; Speed: 256 mm/sec; Depth: 1.5+0.5/-0mm from the bottom of the body
Lead Tensile Strength No visible damage Pull: 2.2 LBS; Time: 5 sec
Lead Bending Strength No visible damage Load of lead: 1.1 LBS (The body of capacitor is bent 90 degrees and returned to its original position)
Vibration No visible damage Frequency cycle: 10Hz to 55Hz and then 10Hz; Amplitude: 1.5mm in three directions; Time: 2 hours each direction (total 6 hours)
Reference Standard IEC 60384-16, GB10190
Dimensions (Model: 224J450D01) Capacitance: 0.22uF
Color: Brown
W Max: 13.0 mm
H Max: 9.5 mm
T Max: 7.5 mm
P 1.0: 10.0 mm
D 0.05: 0.6 mm
L +5/-10: 25.0 mm		 UNIT: mm
Soldering Suggestion Maximum Soldering Temperature: 270 for 4S; Pre-heating: 105 for 1min
Storage Environment Temperature 30, Humidity 70% (MBB unopened) Guarantees 24 months storage period
