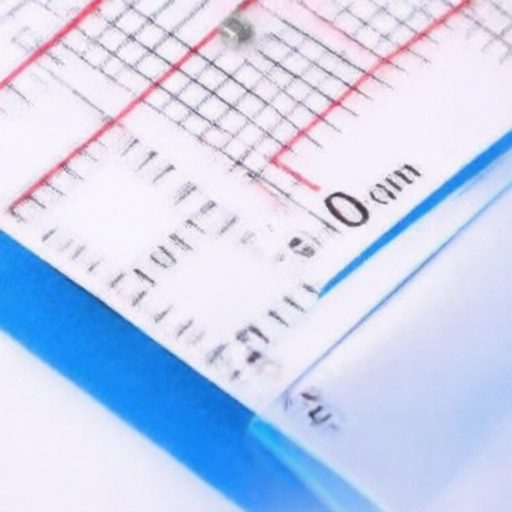

High current chip ferrite bead muRata BLM15PX221SN1D designed for circuits lacking stable ground lines
High current chip ferrite bead muRata BLM15PX221SN1D designed for circuits lacking stable ground lines
Specifications
Current Rating :
1.4A
Number of Circuits :
1
DC Resistance(DCR) :
100mΩ
Tolerance :
±25%
Impedance @ Frequency :
220Ω@100MHz
Description :
220Ω@100MHz 1 Line Ferrite Bead 0402 1.4A 100mΩ
Mfr. Part # :
BLM15PX221SN1D
Model Number :
BLM15PX221SN1D
Package :
0402
Description

Product Overview

The BLM15PX221SN1# is a chip ferrite bead from Murata Manufacturing Co., Ltd., designed to function as a resistor at noise frequencies, minimizing resonance and preserving signal waveforms. It is effective in circuits without stable ground lines as it does not require a ground connection. The series features a nickel barrier structure for excellent solder heat resistance and the BLM_P series is suitable for high current applications, supporting up to 6A DC. This product is intended for general usage.

Product Attributes

  • Brand: Murata Manufacturing Co., Ltd.
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

Part NumberPackage Specification CodePackaging InformationMinimum Order QuantityShapeSize Code (in mm)Size Code (in inch)Length (mm)Length Tolerance (mm)Width (mm)Width Tolerance (mm)Thickness (mm)Thickness Tolerance (mm)Impedance (at 100MHz)Impedance ToleranceRated Current (at 85)Rated Current (at 125)DC Resistance (max.)Operating Temperature Range ()Mass (typ.) (g)Number of Circuit
BLM15PX221SN1BBBulk(Bag)1000SMD100504021.00.050.50.050.50.0522025%1.4A800mA0.1-55 to 1250.0011
BLM15PX221SN1DD180mm Paper Tape10000SMD100504021.00.050.50.050.50.0522025%1.4A800mA0.1-55 to 1250.0011
BLM15PX221SN1JJ330mm Paper Tape50000SMD100504021.00.050.50.050.50.0522025%1.4A800mA0.1-55 to 1250.0011

Note: This datasheet may be out of date. Please download the latest datasheet from the official website of Murata Manufacturing Co., Ltd. Specifications are subject to change without notice.


1811081514_muRata-BLM15PX221SN1D_C160973.pdf
