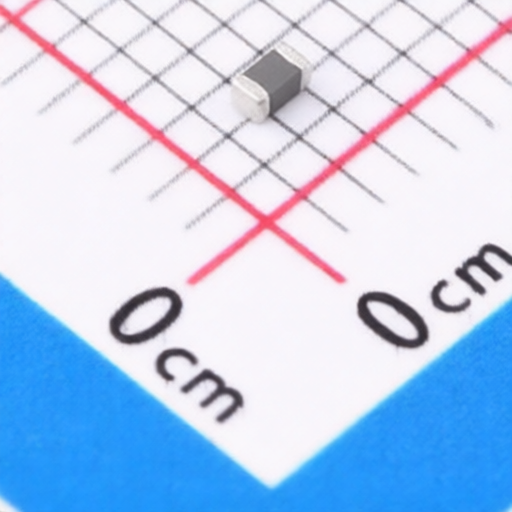

Multilayer ferrite chip bead FH CBG160808U501T suitable for SMT assembly and radial noise suppression
Multilayer ferrite chip bead FH CBG160808U501T suitable for SMT assembly and radial noise suppression
Specifications
Current Rating :
200mA
Number of Circuits :
1
DC Resistance(DCR) :
500mΩ
Tolerance :
±25%
Impedance @ Frequency :
500Ω@100MHz
Description :
500Ω@100MHz 1 Line Ferrite Bead 0603 200mA 500mΩ
Mfr. Part # :
CBG160808U501T
Model Number :
CBG160808U501T
Package :
0603
Description

Product Overview

The CBG series are multilayer ferrite chip beads designed for substantial EMI/RFI suppression. They offer higher impedance compared to plug-in beads of the same size and are suitable for automatic mounting by SMT equipment. These chip beads are ideal for radial noise suppression on digital product clock lines and signal lines, as well as general noise suppression on circuits.

Product Attributes

  • Material: Ferrite
  • Packaging Style: Tape & Reel, Bulk

Technical Specifications

Part No.Size (EIA)Dimensions (L W T) (mm)Impedance () @ 100MHzDCR () MaxIr (mA) MaxOperating Temp. (C)
CBG100505Uxxx1005 (0402)1.0 x 0.5 x 0.5See chartSee chartSee chart-40 to +85
CBG160808Uxxx1608 (0603)1.6 x 0.8 x 0.8See chartSee chartSee chart-40 to +85
CBG201209Uxxx2012 (0805)2.0 x 1.2 x 0.9See chartSee chartSee chart-40 to +85
CBG321609Uxxx3216 (1206)3.2 x 1.6 x 0.9See chartSee chartSee chart-40 to +85
CBG322513Uxxx3225 (1210)3.2 x 2.5 x 1.3See chartSee chartSee chart-40 to +85
CBG451616Uxxx4516 (1806)4.5 x 1.6 x 1.6See chartSee chartSee chart-40 to +85
CBG453215Uxxx4532 (1812)4.5 x 3.2 x 1.5See chartSee chartSee chart-40 to +85

2410121832_FH-CBG160808U501T_C87649.pdf
