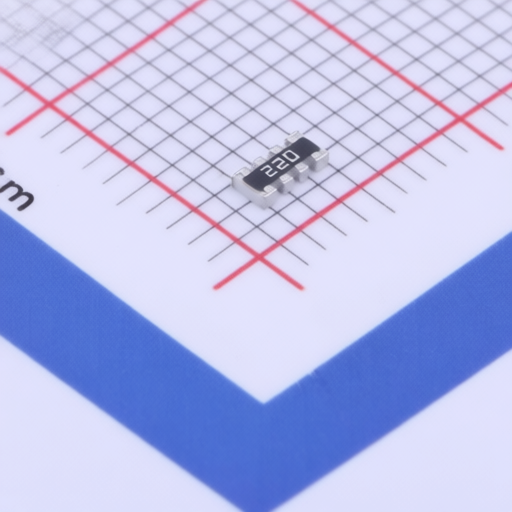

Surface mount technology thick film chip network resistor FH RCML08W220JT 22R for electronic applications
Surface mount technology thick film chip network resistor FH RCML08W220JT 22R for electronic applications
Specifications
Number of Resistors :
4
Number of Pins :
8
Tolerance :
±5%
Resistance :
22Ω
Power(Watts) :
62.5mW
Temperature Coefficient :
±100ppm/℃
Description :
4 ±5% 22Ω 62.5mW ±100ppm/℃ 0603x4 Resistor Networks, Arrays RoHS
Mfr. Part # :
RCML08W220JT 22R
Model Number :
RCML08W220JT 22R
Package :
0603x4
Description

Product Overview

The FENGHUA Chip Network Resistor is a thick film component designed for surface mount technology (SMT). Key features include miniature size, light weight, stable electrical performance, high reliability, superior mechanical strength, and excellent high-frequency characteristics. These resistors offer low assembly costs and are compatible with automatic SMT equipment and re-flow soldering processes. They are compliant with RoHS directives and widely used in applications such as computers, communication systems, industrial automation, aerospace, , digital television, digital audio, and consumer electronics.

Product Attributes

  • Brand: FENGHUA ()
  • Product Type: Thick Film Chip Network Resistor
  • Surface Treatment: Lead-free
  • Compliance: RoHS Directive
  • Hazardous Substance Information: Compliant with China's 'Administration on the Control of Pollution caused by Electronic Information Products' (SJ/T11363-2006). Hazardous substances like Pb, Hg, Cd, Cr(VI), PBB, and PBDE are within specified limits or fall under RoHS exemptions (e.g., Pb in glass).
  • Environment Friendly Use Period: 50 years (under specified operating conditions)

Technical Specifications

Model Series Type L (mm) W (mm) T (mm) P (mm) A (mm) B (mm) C (mm)
RCMT08 / RCML08 / RCMC08 RCMT08 2.000.10 1.000.10 0.450.10 0.500.05 0.300.15 0.150.10 0.250.10
RCML08 3.200.15 1.600.15 0.500.10 0.800.10 0.500.15 0.300.20 0.300.15
RCMC08 5.080.20 3.100.20 0.600.10 1.270.10 0.800.15 0.500.20 0.500.15
RCMT04 RCMT04 1.000.10 1.000.10 0.350.10 0.650.05 0.350.10 0.150.10 0.250.10
Item Specification RCMT08 RCMT04 RCML08 RCMC08
Rated Power (at 70) Conventional Power 1/16W 1/16W 1/16W 1/8W
Temperature Range of Use -55+125
Rated Temperature +70
Max. Working Voltage 50V 50V 50V 200V
Max. Overload Voltage 400V 100V 100V 100V
Jumper Rated Current 1A 1A 1A 2A
Jumper Max. Overload Current 2A 2A 3A 5A
Resistance Tolerance RCMT08/RCMT04 1%, 2%, 5%, 10% (Chip Jumper: 50 m)
RCML08/RCMC08 1%, 2%, 5%, 10% (Chip Jumper: 50 m)
Resistance Range Series 110M (E-24, E-96) 110M (E-24, E-96) 110M (E-24, E-96) 110M (E-24, E-96)
Resistance Range Chip Jumper 0
Item Test Method Specification Change (R) Jumper Spec.
Short Time Overload Apply 2.5x rated voltage or max overload voltage (min of both) for 5s. No obvious damage. (2.0%R+0.1) 50m
Insulation Resistance Apply DC 100V between substrate and termination for 1 min. 1000M Min - -
Solderability Dipped in solder bath at 2405 for 20.5 sec. Solderable area 95%. - -
Resistance to Soldering Heat Dipped in solder bath at 2705 for 101 sec. No obvious damage, readable mark. (1.0%R+0.05) 50m
Bending Strength Substrate: Glass Epoxy (t=1.6mm), Span: 90mm, Bend: 3mm, Duration: 101S No mechanical damage. (1.0%R+0.05) 50m
Rapid Temperature Cycle -55 (30min) Normal Temp (5min) 125 (30min), 5 cycles. No obvious damage. (1.0%R+0.05) 50m
Humidity (steady state) 402, 9095% RH for 1000+48/-0 hours. - (3.0%R+0.1) 100m
Load Life (70) 702, rated voltage applied intermittently (1.5h ON, 0.5h OFF) for 1000+48/-0 hours. - (3.0%R+0.1) 100m
Resistance to Solvent Dipping in Isopropyl alcohol for 101 hours. No obvious damage. (1.0%R+0.05) 50m
Model Type Carrier Tape Width (W) Pitch (P) Reel Quantity (PCS/reel) Bulk Case Quantity (PCS/case) Bulk Bag Quantity (PCS)
RCMT08 8.000.20 mm 2.000.10 mm 10000 - 10000
RCMT04 8.000.20 mm 2.000.10 mm - - -
RCML08 8.000.20 mm 4.000.10 mm 5000 5000 4000
RCMC08 12.000.10 mm 2.000.05 mm 4000 1000 4000
Label Type Content
Reel Label Customer Part No., Customer P/O, Fenghua Part No., Quantity, Nominal Resistance, Rated Power, Tolerance, Delivery Date, QC Marking, GP or RoHS Marking.
Inner Box Label Customer Part No., Customer P/O, Fenghua Part No., Quantity, Nominal Resistance, Rated Power, Tolerance, Delivery Date, QC Marking, GP or RoHS Marking.
Outer Box Label Customer Name, Contract No., Product Name, Fenghua Part No., Quantity, Case No., Maker Name, QC Marking, GP or RoHS Marking.
Section Details
Storage Conditions Temperature: 530, Relative Humidity: 30%70%. Avoid storage in environments with corrosive gases.
Recommended Soldering Profile Recommended Solder Alloy: 96.5Sn-3.0Ag-0.5Cu. (Specific re-flow and wave solder profiles are referenced but not detailed in the provided text).
Precautions for Use Suggested to use within 6 months under specified storage conditions. Applicable for lead-free soldering. Previous versions become invalid upon amendment.

2410121246_FH-RCML08W220JT-22R_C880304.pdf
