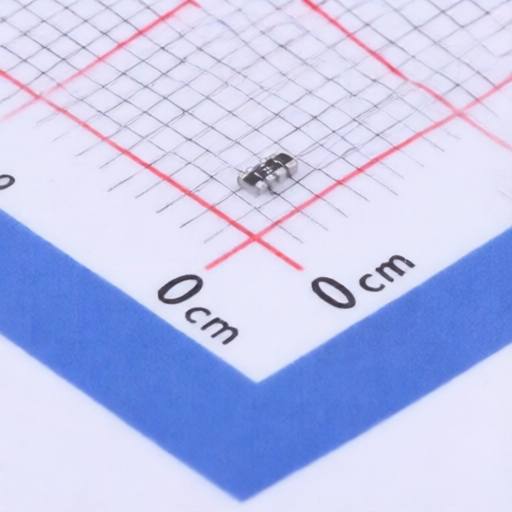

General Purpose Chip Resistor Arrays Featuring Walsin WA04X121JTL for Consumer Electronics Applications
General Purpose Chip Resistor Arrays Featuring Walsin WA04X121JTL for Consumer Electronics Applications
Specifications
Number of Resistors :
4
Number of Pins :
8
Tolerance :
±5%
Resistance :
120Ω
Power(Watts) :
62.5mW
Temperature Coefficient :
±200ppm/℃
Description :
4 ±5% 120Ω 62.5mW ±200ppm/℃ 0402x4 Resistor Networks, Arrays RoHS
Mfr. Part # :
WA04X121JTL
Model Number :
WA04X121JTL
Package :
0402x4
Description

Product Overview

The ASC WA04/06 series offers general-purpose chip resistor arrays designed for reduced equipment size and lower assembly costs. These resistors are constructed with a high-grade ceramic body and feature internal metal electrodes connected by a resistive paste, trimmed to precise values by laser. They are RoHS compliant and lead-free, making them suitable for a wide range of consumer electronics, EDP, and telecom applications. Key advantages include small size, light weight, and high component reliability.

Product Attributes

  • Brand: ASC
  • Certifications: RoHS compliant
  • Material: High grade ceramic body (aluminum oxide)
  • Termination: Tin (lead free) alloy

Technical Specifications

Series No.SizeResistance ToleranceResistance RangeTCR (ppm/C) (10 R 1M)Max. Dissipation at Tamb=70CMax. Operation Voltage (DC or RMS)Max. Overload VoltageClimatic Category
WA04Y (Convex)0402x2 (1005x2)5%, 1%3 ~ 1M, Jumper 10 ~ 1M 300 (R10), 400 (R<10)1/16 W25V50V55/155/56
WA04X (Convex)0402x4 (1005x4)5%, 1%3 ~ 1M, Jumper 10 ~ 1M 300 (R10), 400 (R<10)1/16 W50V100V55/155/56
WA06X (Convex)0603x4 (1608x4)5%, 1%1 ~ 10M, Jumper, 10 ~ 100K 200 (R10), 200 (R<10)1/10 W50V100V55/155/56
WA06W (Convex)0602x8 (1605x8)5%, 1%10 ~ 1M, Jumper-300~+5001/16 W50V100V55/155/56
WA06T (Concave)0603x4 (1608x4)5%, 1%10 ~ 1M, Jumper 200 (R10), 200 (R<10)1/10 W50V100V55/155/56

Dimensions (unit : mm)

ModelLWTPATaTbBCDGH1H2
WA04Y1.00 0.101.00 0.100.35 0.100.65 0.100.34 0.100.20 0.150.25 0.17------
WA04X2.00 0.101.00 0.100.45 0.100.50 0.050.40 0.10--0.20 0.100.30 0.05-0.25 0.10--
WA06X3.20 0.101.60 0.100.50 0.100.80 0.100.60 0.10--0.30 0.100.40 0.10-0.30 0.20--
WA06W4.00 0.201.60 0.150.45 0.100.50 0.20---0.30 0.20-0.20 0.100.30 0.200.40 0.200.30 0.10
WA06T3.20+0.20/-0.101.60+0.20/-0.100.60 0.100.80 0.100.60 0.15--0.35 0.150.50 0.15-0.50 0.15--

2410121521_Walsin-WA04X121JTL_C880828.pdf
