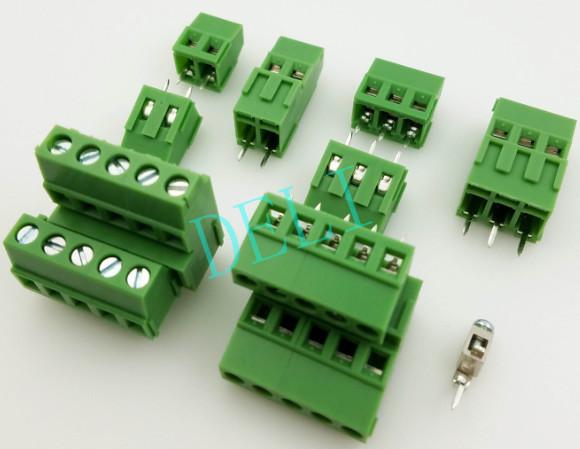

Pluggable Double Level Terminal Block Green Color 5.0 5.08mm DL129B-XX-5.0/5.08 300V 20A
Pluggable Double Level Terminal Block Green Color 5.0 5.08mm DL129B-XX-5.0/5.08 300V 20A
Pluggable Double Level Terminal Block Green Color 5.0 5.08mm DL129B-XX-5.0/5.08 300V 20A
Pluggable Double Level Terminal Block Green Color 5.0 5.08mm DL129B-XX-5.0/5.08 300V 20A
Specifications
Brand Name :
DELI
Model Number :
DL129B-XX-5.0/5.08
Place of Origin :
CN
MOQ :
100
Payment Terms :
T/T, Western Union
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
5.0/5.08MM
Poles :
2P、3P
Screw :
M3、Steel、Zinc plated
Housing :
PA66. UL94V-0
Rated voltage :
300V
Rated current :
25A
Withstanding voltage :
AC2000V/1Min
Wire range :
24-12AWG
Description
MATERIAL
Pitch:5.0/5.08MM
Poles: 2P,3P
Screw:M3, Steel,Zinc plated
Wire cage: Steel, Zinc plated, Brass,Ni plated
Pin header:Brass, Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:300V
Rated current:25A
Withstanding voltage:AC2000V/1Min
Wire range:24-12AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.5Nm(4.4 lb.in)
Strip length:6-7mm
Pluggable Double Level Terminal Block Green Color 5.0 5.08mm DL129B-XX-5.0/5.08 300V 20A
DeLi Electronics Technology Co., Ltd
PART# : DL129B-XX-5.0/5.08
