CTB9200 6 Positions Screw Wire PCB Connector 320V 12A Pitch 5mm
CTB9200 6 Positions Screw Wire PCB Connector 320V 12A Pitch 5mm
CTB9200 6 Positions Screw Wire PCB Connector 320V 12A Pitch 5mm
CTB9200 6 Positions Screw Wire PCB Connector 320V 12A Pitch 5mm
Specifications
Brand Name :
ECHINA
Model Number :
CTB9200/6A
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
bag
Certification :
CE/ RoHS
Pitch Spacing :
5MM
No. of Positions :
6 Positions
Wire Size AWG Min :
30AWG
Wire Size AWG Max :
12AWG
Conductor Area CSA :
2.5mm²
Wire Connection Method :
Screw
Rated Current :
12A
Rated Voltage :
320V
Description

CTB9200 /12A Pluggable Terminal Block 6P 320V wire 30AWG 12AWG

5mm Pitchs Pluggable Rising Clamp Terminal

• 2-24 pole solid block

• Pluggable male-female connectors

• Open & closed headers

• Horizontal & vertical female plug styles

• Polarised mouldings
• Moulded in green UL94-V0 flame retardant P
• Professional rising clamp terminals

• 0.2-2.5mm2 (30-12AWG) solid & stranded cable

• Anti solder wicking

• Captive screws

• Guided pin alignment

• Approved

Description:
Muti-Port RJ45 side entry Network Jack with shield
Number of ports: 1*1
Number of position: 8
Number of contacts: 2,4,6 or 8

Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum

Materials:
Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"

Pitch Spacing: 5mm
No. of Positions: 6 Positions
Wire Size AWG Min: 30AWG
Wire Size AWG Max: 12AWG
Conductor Area CSA: 2.5mm²
Wire Connection Method: Screw
Rated Current: 12A
Rated Voltage: 320V
Product Range: CTB9200
Series RoHS Phthalates
Compliant: To Be Advised

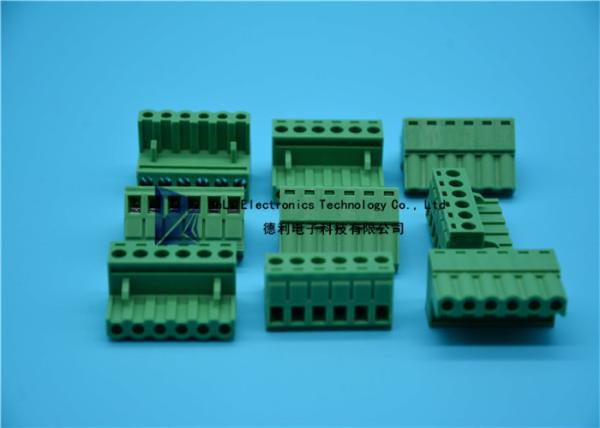

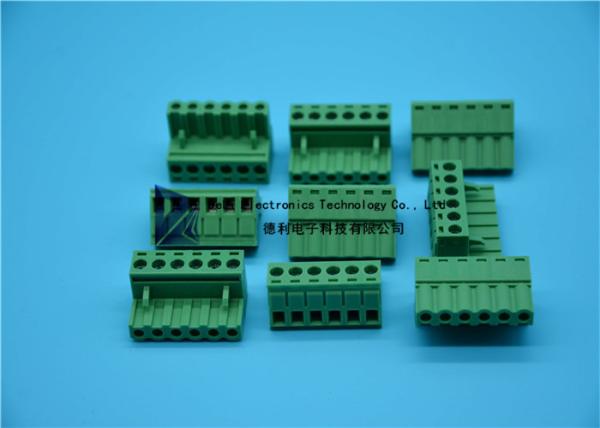

The CTB9200/6A is a 6-pole 320V/12A female pluggable professional
rising Clamp Terminal Block with UL94-V0 flame retardant PA green polarised moulding,
tinned phosphor bronze pin/terminal, nickel copper flash brass rising clamp,
M3 steel zinc plated captive screw, 5mm pitch.
It features anti solder wicking and guided pin alignment.
It accepts 0.2 to 2.5mm² (30 to 12AWG) solid and stranded cable.

CTB9200 6 Positions Screw Wire PCB Connector 320V 12A Pitch 5mm
