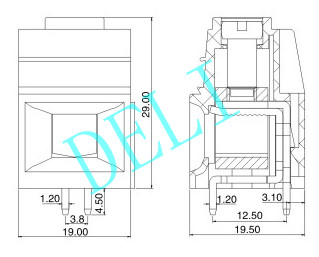

100A 19MM Pitch PCB Connector , Screw Terminal Block Connector DL139-XX-19.0
100A 19MM Pitch PCB Connector , Screw Terminal Block Connector DL139-XX-19.0
100A 19MM Pitch PCB Connector , Screw Terminal Block Connector DL139-XX-19.0
100A 19MM Pitch PCB Connector , Screw Terminal Block Connector DL139-XX-19.0
Specifications
Brand Name :
DELI
Model Number :
DL139-XX-19.0
Place of Origin :
CN
MOQ :
100
Payment Terms :
T/T, Western Union
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
19MM
Poles :
1P-XXP
Screw :
M5、Steel、Zinc plated
Housing :
PA66. UL94V-0
Rated voltage :
600V/1000V
Rated current :
100A
Withstanding voltage :
AC3500V/1Min
Wire range :
18-3AWG
Description
MATERIAL
Pitch:19MM
Poles: 1P-XXP
Screw:M5,Steel,Zinc plated
Wire cage:Brass,Ni plated
Pin header: Brass,Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:600V/1000V
Rated current:100A
Withstanding voltage:AC3500V/1Min
Wire range:18-3AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:3.3Nm(29.2 lb.in)
Strip length:10-12mm
100A 19MM Pitch PCB Connector , Screw Terminal Block Connector DL139-XX-19.0
DeLi Electronics Technology Co., Ltd
PART# : DL139-XX-19.0
