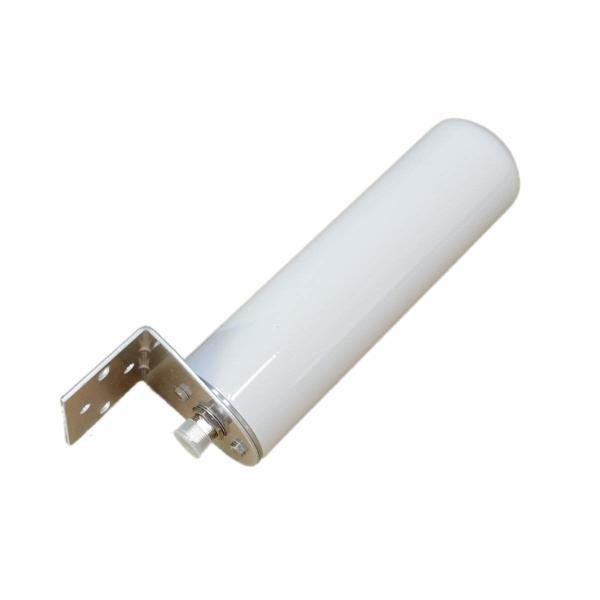

Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
Specifications
Brand Name :
ZD
Model Number :
ZD698-4000V04i360B
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Frequency :
698-4000MHz
Gain :
2-4.5dBi
VSWR :
≤1.8
Impedance :
50
Input Power,maximum :
50
PIM, 3rd Order, 2 x 20 W, :
-153dBc
Description

Waterproof Indoor/Outdoor Wide band Omni Antenna , coverage 698MHz - 4000MHz

Features and Product Description
 Wideband Omni Antenna, coverage 698MHz-4000MHz.
 Typically both used in indoor & outdoor distribution of LTE services.
 Low return loss, High gain, Good radiation pattern.
 Compact, light-weight and easy to install.

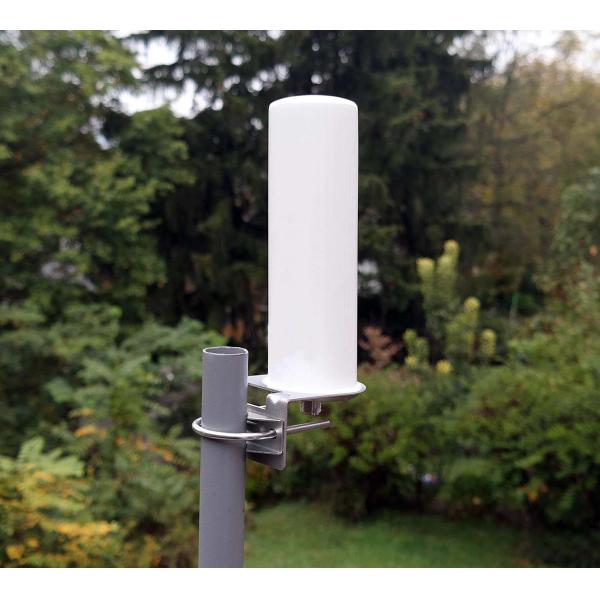

 Supplied with mounting clamp. Both mounting on wall and pole.
 ABS antenna cover, waterproof

Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof

if you are interested in this product,you can download the spec here:ZD698-4000V04i360B.pdf

Electrical Specifications
Item No. ZD698-4000V04i360B
Frequency Range MHz 698-806 806-960 1710-2700 3400-4000
Gain dBi 2.5±0.5 3±0.5 3.5±0.5 4±0.5
Polarization Vertical
Beam width Horizontal deg 360
Vertical(Typical ) 83 65 45 35
VSWR ≤1.8
PIM, 3rd Order, 2 x 20 W, dBc -153
Input Power, maximum watt 50
Impedance ohm 50
Mechanical Specifications

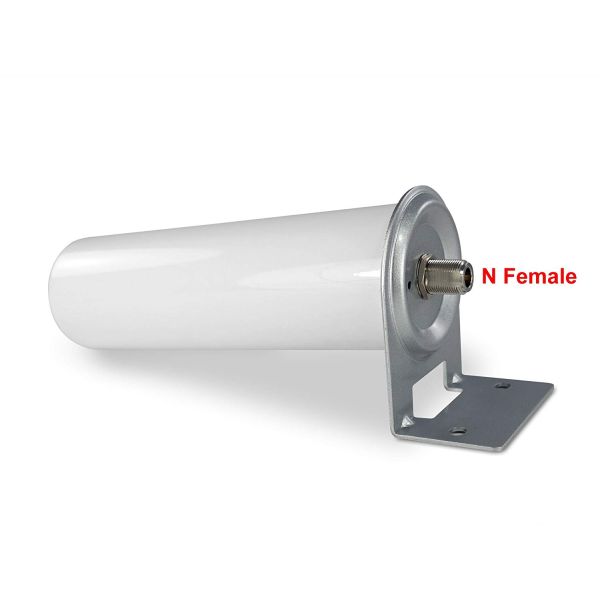

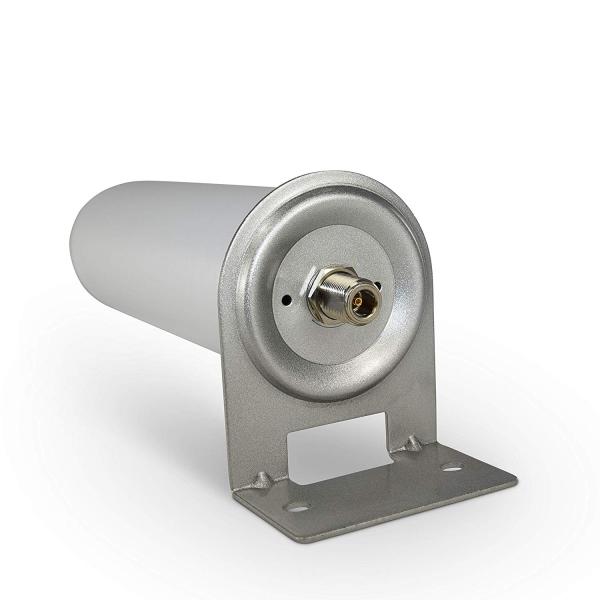

Connector Type N-Female
Dimensions mm 211x67x67
Weight kg 0.3

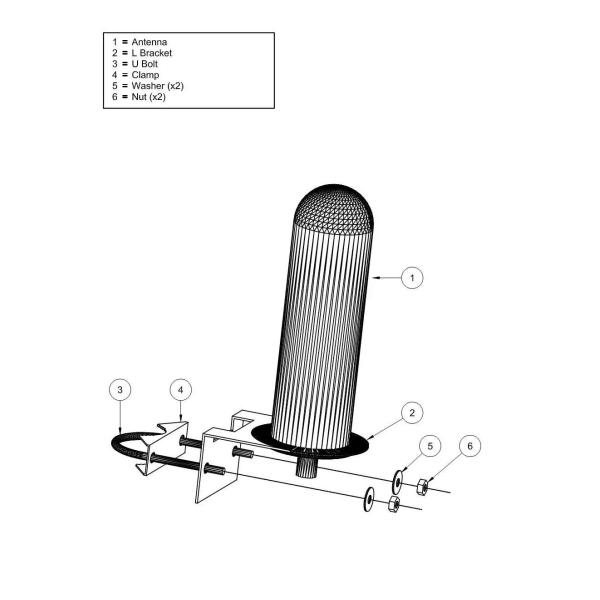

Mounting Kit On-wall/ Pole mounting
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -55～60
Operational Humidity % < 95

Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz WaterproofWide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof

Wide Band Omni Indoor / Outdoor Directional Antenna 698MHz - 4000MHz Waterproof
