Fiberglass 806 - 960MHz Outdoor Directional Antenna High Gain Dual Band Base Station Antenna
Fiberglass 806 - 960MHz Outdoor Directional Antenna High Gain Dual Band Base Station Antenna
Specifications
Brand Name :
ZD
Model Number :
ZD806-960V11i360C
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
806-960MHz
Gain :
10-12dBi
VSWR :
≤1.5
Connector type and location :
7/16 DIN Female, bottom
PIM, 3rd Order, 2 x 20 W, :
≤-150
Maximum Power :
250w
Description

Hot selling outdoor wireless Fiberglass 806-960MHz High Gain VHF UHF Dual Band Base Station Antenna ​

The product spec you can click and download here:ZD806-960V11i360C.pdf

Electrical Specifications
Item No. ZD806-960V11i360C
Frequency Range MHz 806-960
Gain dBi 11.0±1.0
Polarization Vertical

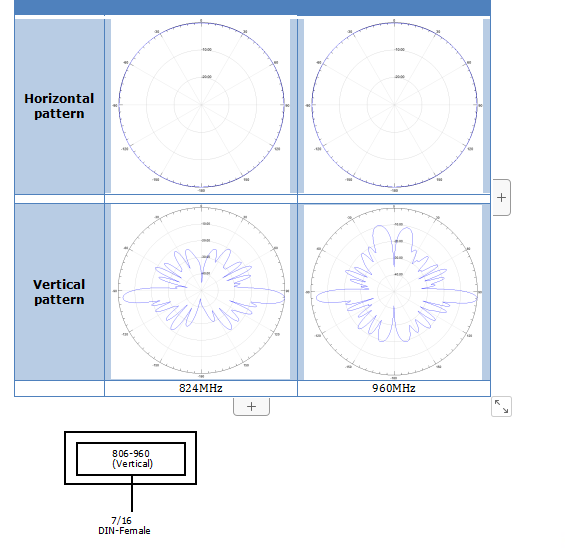

Beam width Horizontal deg 360

Vertical

 7±1
VSWR ≤1.5:1
PIM, 3rd Order, 2 x 20 W, dBc -150
Maximum Power W 250
Mechanical Specifications
Dimensions, HxDia mm 3000x52
Weight, without Mounting Kit kg 4.5
Radome Material and Color Fiberglass, gray
Connector Type and Location 7/16 DIN Female, Bottom
Mounting hardware mm Φ40~Φ80
Maximum Wind Velocity km/h 200
Operational Temperature oC -40 to +60
Operational Humidity % < 95
