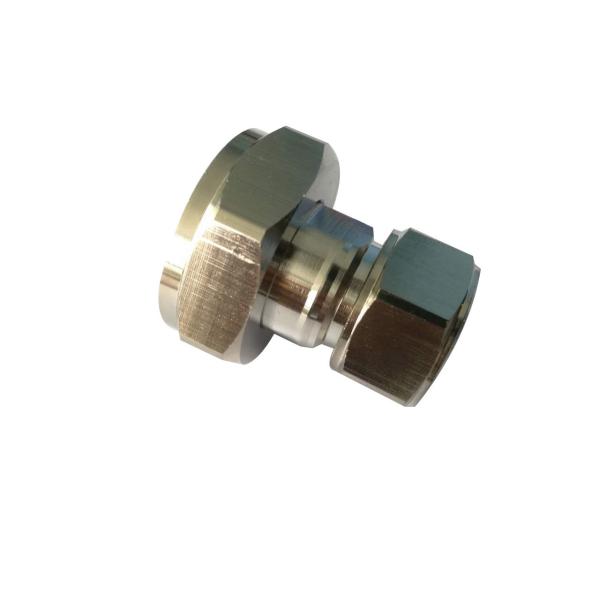

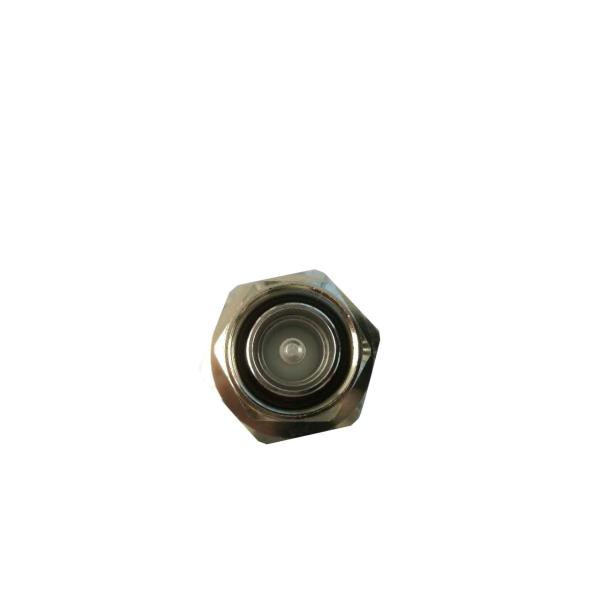

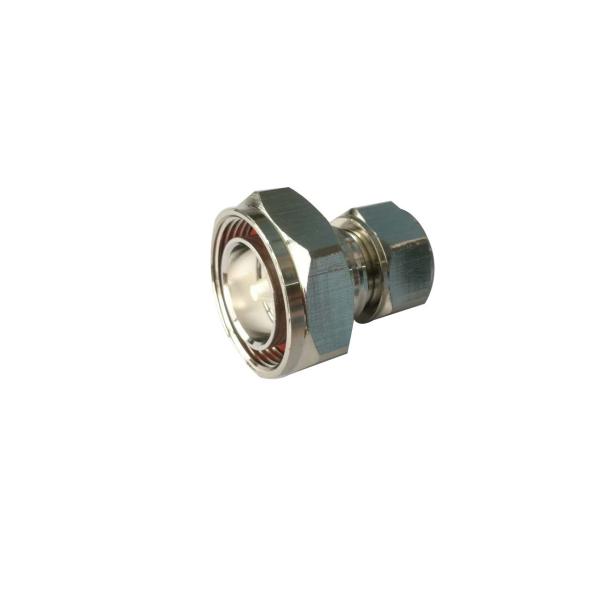

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
Specifications
Brand Name :
ZD
Model Number :
ZD-AD-MNDM/DM
Certification :
RoHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pieces/week
Delivery Time :
5-8 work days
VSWR :
≤1.10@DC-3000MHz
Impedance :
50ohm
Body :
Brass/Silver Plated
Dielectric Strength :
2500V rms
Connector type :
4.3/10 and 7/16 Connector
Frequency Range :
DC-6GHz
PIM :
≤-160DBC
Operating temperature :
-65~+165℃
Description

Rf coaxial Mini Din 4.3-10 straight male to 7/16 Din Male connector Adaptor

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor TECHNICAL SPECIFICATION ZD
4310M-7/16M-01 Rev:A/0

1.Figure

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor
2.Product Description
4310F-7/16M 4.3-10 straight female to 7/16 straight male adapter
3. Material and Plating
Center contact Tin-bronze/ Silver Plated
Outer contact Tin-bronze/ Silver Plated
Body Brass/ Silver Plated
Dielectric PTFE
Gasket Silicon Rubber
Nut Brass/ Nickel Plated
4. Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC,6GHz
Insulation Resistance >10000 MΩ
Contact resistance 4.3-10 type DIN type
Center contact 5 MΩ ≤0.4MΩ
Outer contact ≤1.O MΩ ≤0.2MΩ
Dielectric Strength 2500V rms
Working voltage 1400V rms
Insertion Loss ≤0.10dB@DC'3GHz
VSWR ≤1.10@DC'3.0GHz
PIM(2x43dBm) ≤-160dBc
5. EnviroNFental and Mechanical Specifications
Durability (matings) 5=500 cycles I
Thermal Shock Test Method MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method MIL-STD-202, Meth. 204, Cond. B
Temperature Range -65'+165t:
RoHS Compliant

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor

Rf coaxial connector Mini Din 4.3-10 straight male to 7/16 Din Male Adaptor

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.
